NSN 5935-01-374-4518 M12883/47-07, M128834707, MILS12883
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-374-4518 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: M12883/47-07, M128834707, MILS12883, MIL-S-12883, 5935-01-374-4518, 01-374-4518, 5935013744518, 013744518
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 APR 1993 | 01-374-4518 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

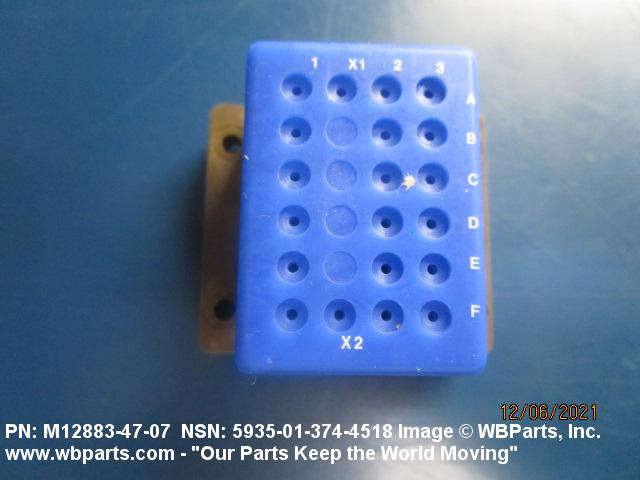

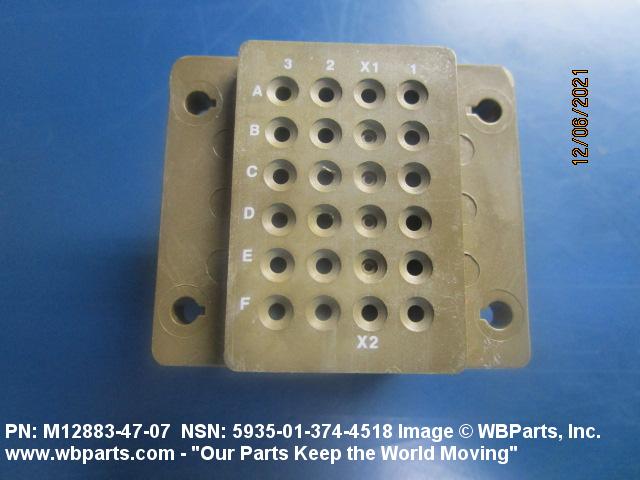

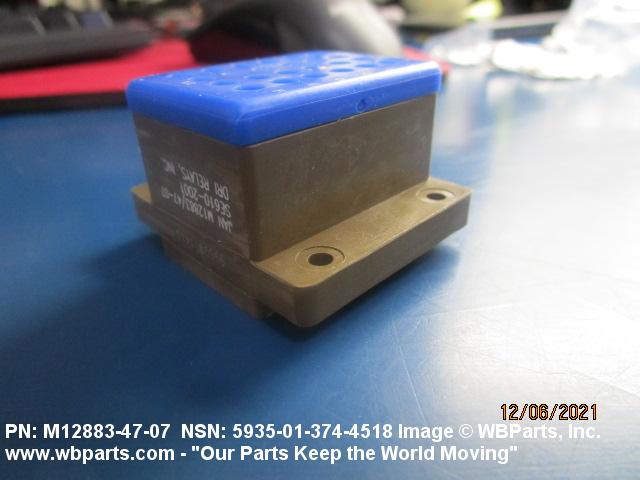

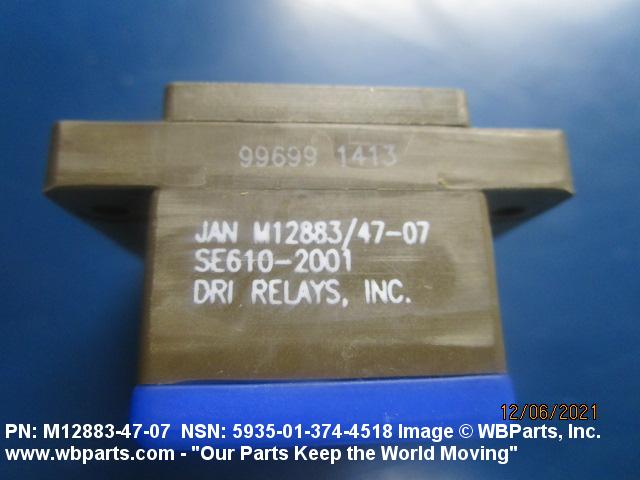

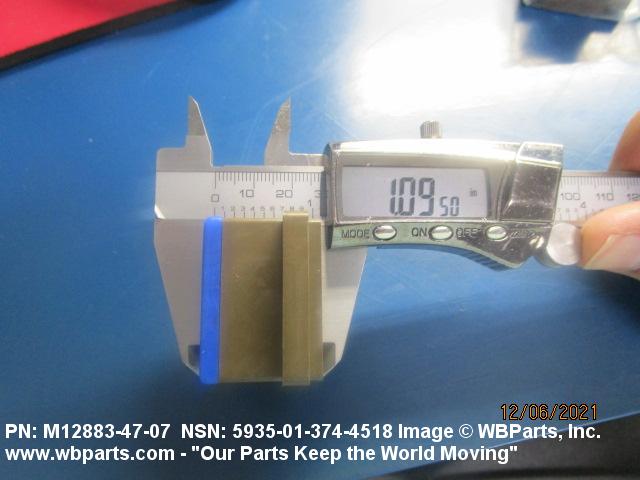

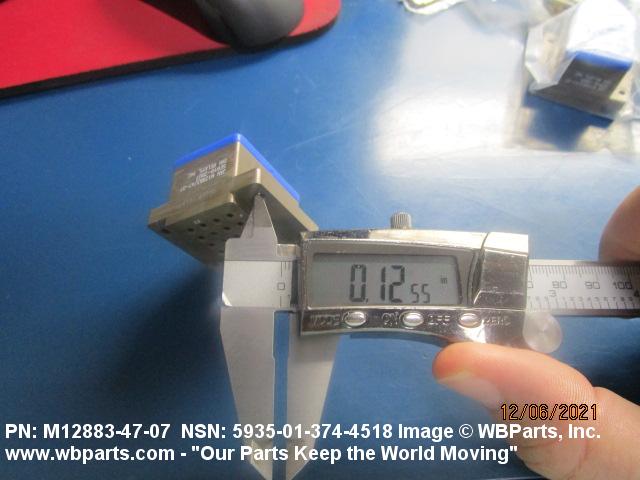

Drawings & Photos | NSN 5935-01-374-4518
Demand History | NSN 5935-01-374-4518
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-374-4518 | 2022-03-90 | 34 | DIBBS |
| 5935-01-374-4518 | 2021-12-339 | 13 | DIBBS |
| M128834707 | 2021-11-328 | 4 | Taiwan |
| 5935-01-374-4518 | 2014-07-209 | 15 | DIBBS |
| 5935-01-374-4518 | 2013-02-36 | 17 | DIBBS |
| 5935-01-374-4518 | 2013-01-10 | 15 | DIBBS |
| 5935-01-374-4518 | 2008-10-281 | 3 | DIBBS |
| 5935-01-374-4518 | 2008-09-247 | 5 | DIBBS |
| 5935-01-374-4518 | 2008-05-130 | 2 | DIBBS |
| 5935-01-374-4518 | 2006-02-56 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-374-4518
Related Products | NSN 5935-01-374-4518
Technical Data | NSN 5935-01-374-4518

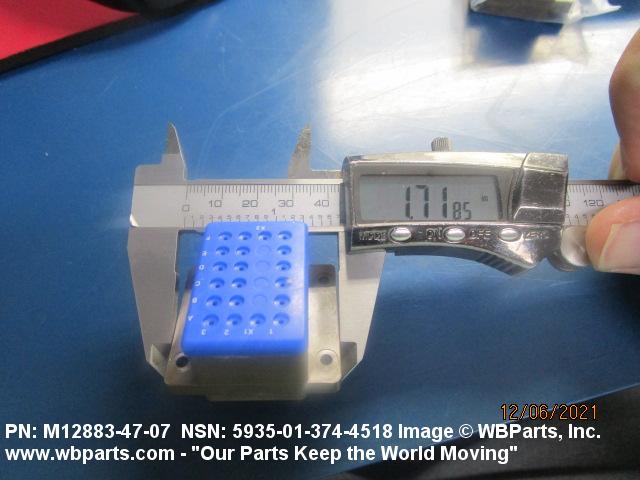

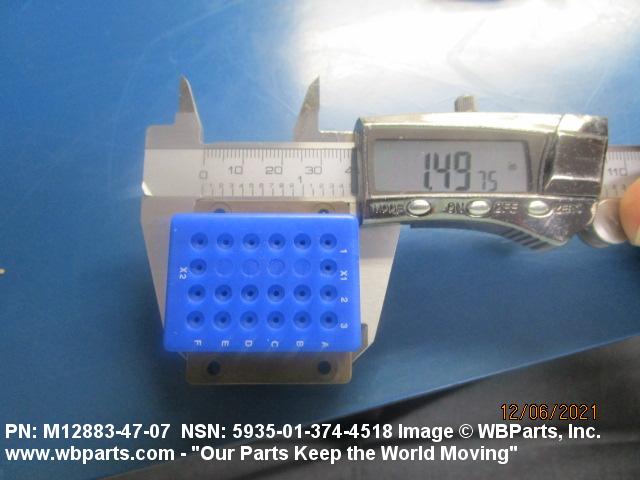

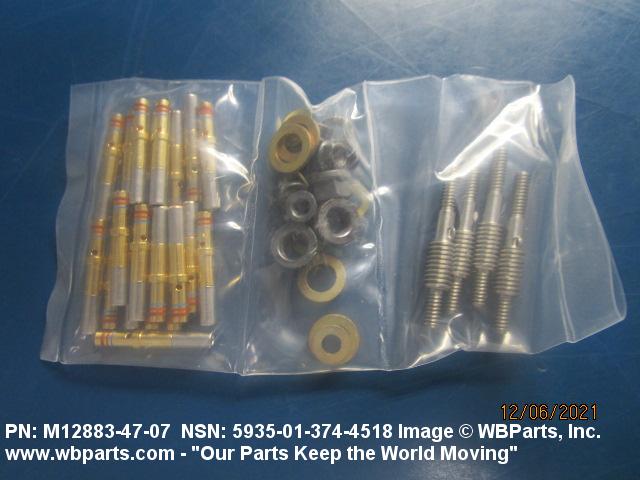

| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 204A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 20 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 73B RECTANGULAR |
| OVERALL LENGTH | 1.720 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.958 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.688 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |

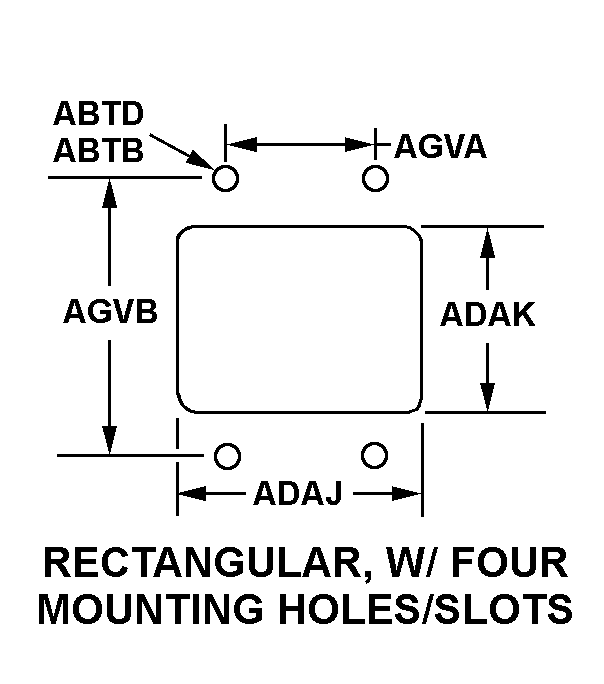

| MOUNTING HOLE STYLE | 29D RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.600 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.110 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.437 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD PITCH IN MILLIMETERS | 0.50 |
| THREAD DIRECTION | RIGHT-HAND |
| TEST DATA DOCUMENT | 81349-MIL-S-12883 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-12883/47 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-12883 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M12883/47-07 |
