NSN 5935-01-361-0408 WD9A12C088PN000, 01-361-0408, 013610408

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-361-0408 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: WD9A12C088PN000, 5935-01-361-0408, 01-361-0408, 5935013610408, 013610408

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 JUL 1992	01-361-0408	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

Drawings & Photos | NSN 5935-01-361-0408

Part Number	Request Date	QTY	Origin	SBA
5935-01-361-0408	2005-12-346	3	DIBBS

Cross Reference | NSN 5935-01-361-0408

Part Number	Cage Code	Manufacturer
WD9A12C088PN000	53669	DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-361-0408

Compare

Related Products | NSN 5935-01-361-0408

5935-01-361-0409, 5935-01-361-0410, 5935-01-361-0411, 5935-01-361-0412, 5935-01-361-0413

Technical Data | NSN 5935-01-361-0408

Characteristic	Specifications
BODY STYLE	9G STRAIGHT SHAPE W/JACKSCREW
OVERALL LENGTH	2.148 INCHES NOMINAL
OVERALL HEIGHT	2.840 INCHES MAXIMUM
OVERALL WIDTH	0.725 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS	2.460 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.125 INCHES NOMINAL
CONNECTOR LOCKING METHOD	JACKSCREW
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	STEEL CORROSION RESISTING
POLARIZATION METHOD	POLARIZATION BOSS
BOSS TYPE AND LOCATION DESIGNATOR	N PIN
MATING END QUANTITY	1

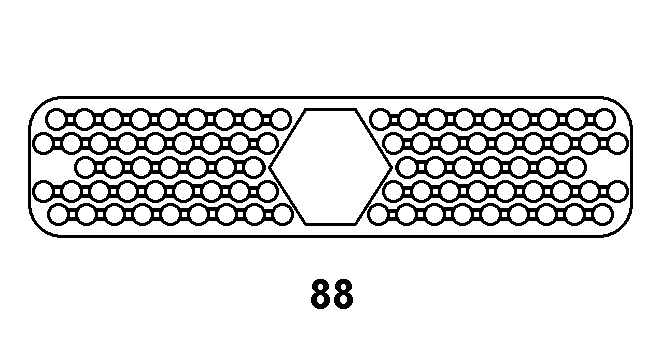

CONTACT POSITION ARRANGEMENT STYLE	DTAA 88 SINGLE MATING END
INSERT MATERIAL	PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END
INCLUDED CONTACT QUANTITY	88 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	3.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
III OPERATING TEMP RATING	-54.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.088 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-01-361-0408

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-361-0408

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
