NSN 5935-01-360-8751 M85049/38-13W, M850493813W, MIL-C-85049/38
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-360-8751 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: M85049/38-13W, M850493813W, MIL-C-85049/38, MILC8504938, 5935-01-360-8751, 01-360-8751, 5935013608751, 013608751
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JUL 1992 | 01-360-8751 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

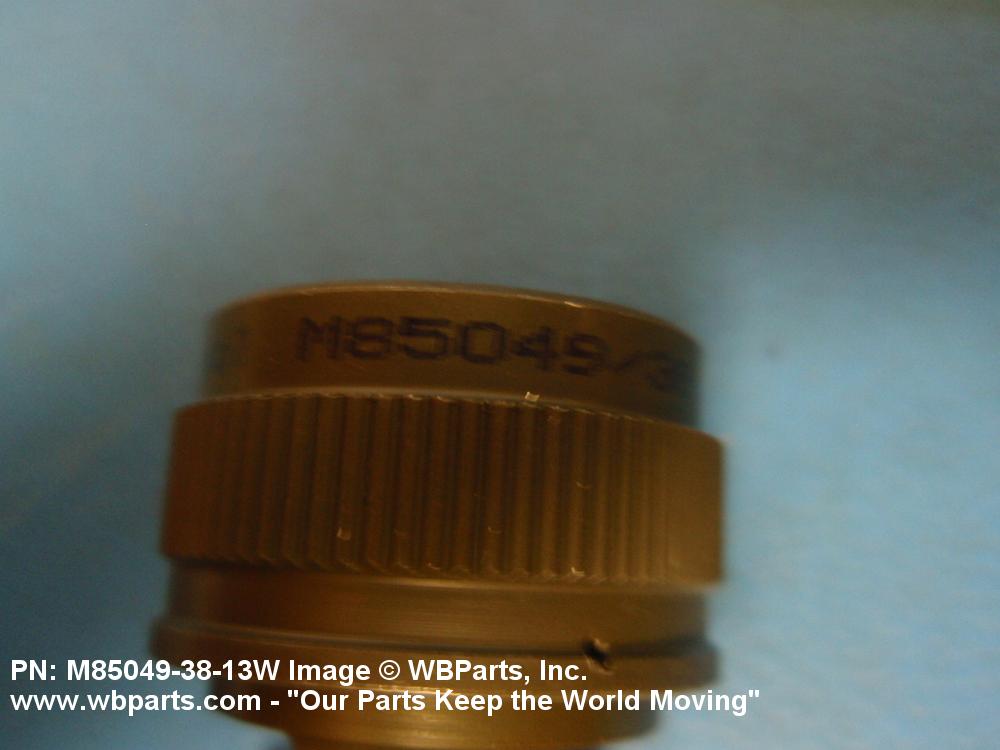

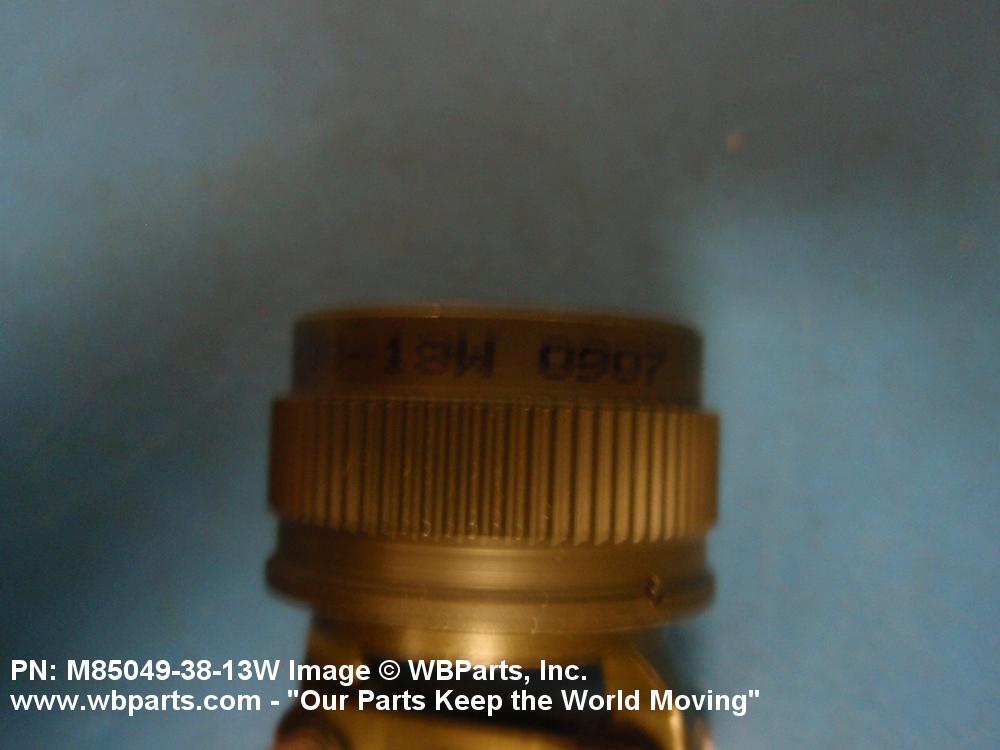

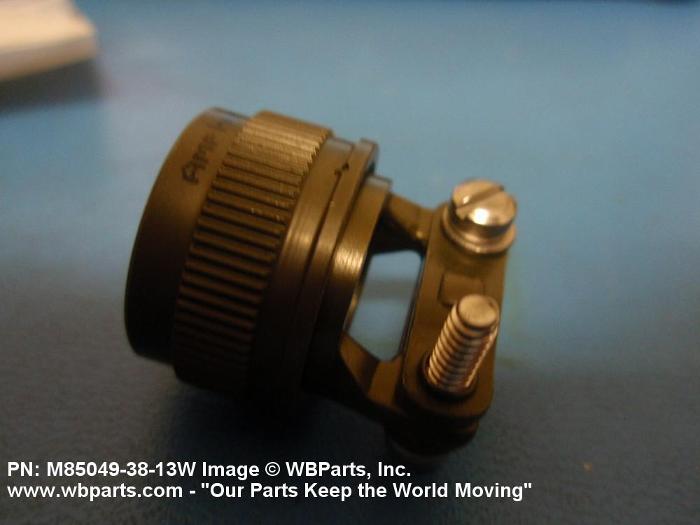

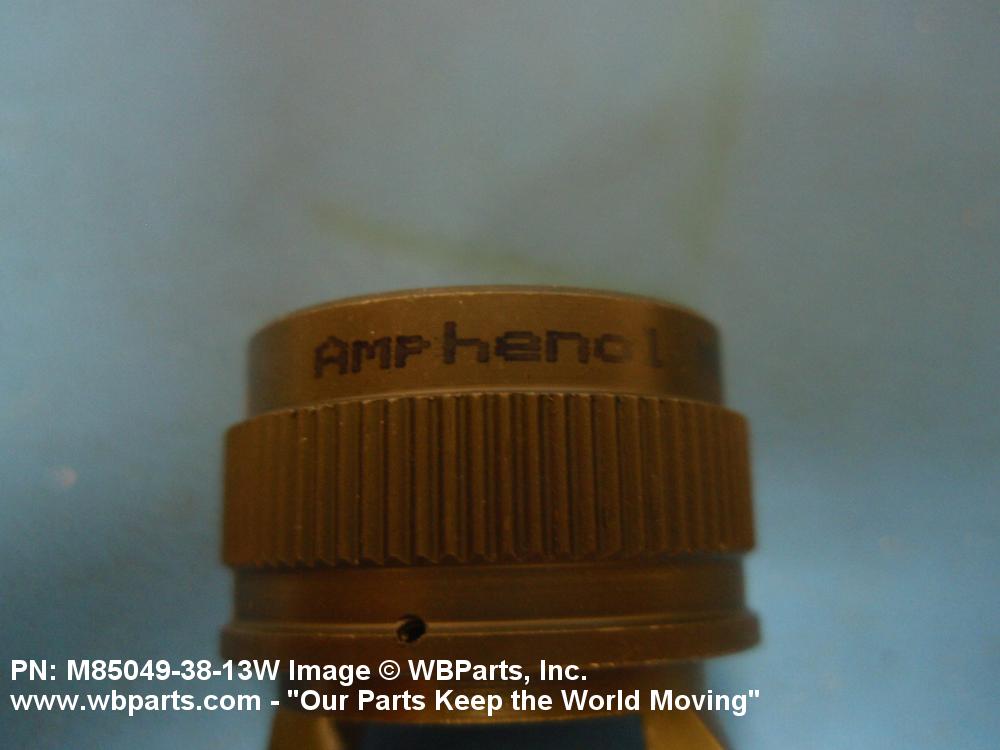

Drawings & Photos | NSN 5935-01-360-8751
Demand History | NSN 5935-01-360-8751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-360-8751 | 2024-08-218 | 1534 | DIBBS |
| 5935-01-360-8751 | 2024-07-207 | 1534 | DIBBS |
| 5935-01-360-8751 | 2024-07-190 | 1379 | DIBBS |
| 5935-01-360-8751 | 2024-06-179 | 1379 | DIBBS |
| M850493813W | 2024-01-16 | 67 | United States |
| M850493813W | 2023-10-296 | 80 | United States |
| 5935-01-360-8751 | 2022-09-262 | 115 | DIBBS |
| 5935-01-360-8751 | 2022-09-248 | 979 | DIBBS |
| 5935-01-360-8751 | 2017-06-164 | 2332 | DIBBS |
| 5935-01-360-8751 | 2017-03-62 | 1136 | DIBBS |
| M850493813W | 2017-02-59 | 10 | Pakistan |
| M850493813W | 2017-02-58 | 10 | Pakistan |
| 5935-01-360-8751 | 2015-10-302 | 738 | DIBBS |
| M850493813W | 2015-06-167 | 13 | United States |
| 5935-01-360-8751 | 2013-08-223 | 791 | DIBBS |
| M85049/38-13W | 2013-04-98 | 10 | Korea |
| 5935-01-360-8751 | 2013-01-08 | 357 | DIBBS |
| M85049/38-13W | 2012-07-200 | 40 | |
| 5935-01-360-8751 | 2011-12-348 | 385 | DIBBS |
| 5935-01-360-8751 | 2011-08-228 | 0 | DIBBS |
| M850493813W | 2011-04-97 | 10 | United States |
| 5935-01-360-8751 | 2007-09-261 | 882 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-360-8751
Technical Data | NSN 5935-01-360-8751
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10B DOUBLE CLAMPING ACTION OPEN FRAME TYPE |
| OVERALL LENGTH | 1.200 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.100 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | ISO M |
| NOMINAL THREAD SIZE | 18.0 MILLIMETERS |
| THREAD TOLERANCE CLASS | 6G INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 7.11 MILLIMETERS |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.190 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SIZE DESIGNATION | 13 |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/38 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049/38 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/38-13W |
Restrictions/Controls & Freight Information | NSN 5935-01-360-8751
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
