NSN 5935-01-359-0276 M83723/88Y1624N, M8372388Y1624N, MIL-C-83723/88

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-359-0276 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M83723/88Y1624N, M8372388Y1624N, MIL-C-83723/88, MILC8372388, 5935-01-359-0276, 01-359-0276, 5935013590276, 013590276

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 MAY 1992	01-359-0276	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

Drawings & Photos | NSN 5935-01-359-0276

Part Number	Request Date	QTY	Origin
5935-01-359-0276	2022-03-90	5	DIBBS
5935-01-359-0276	2022-03-79	4	DIBBS
5935-01-359-0276	2021-10-304	4	DIBBS
5935-01-359-0276	2020-11-329	8	DIBBS
5935-01-359-0276	2020-05-142	12	DIBBS
5935-01-359-0276	2020-04-114	4	DIBBS
5935-01-359-0276	2020-04-100	7	DIBBS
5935-01-359-0276	2020-03-72	4	DIBBS
5935-01-359-0276	2020-02-40	2	DIBBS
5935-01-359-0276	2020-01-29	1	DIBBS
5935-01-359-0276	2019-12-345	2	DIBBS
5935-01-359-0276	2019-11-330	2	DIBBS
5935-01-359-0276	2019-11-317	1	DIBBS
5935-01-359-0276	2017-07-199	2	DIBBS
5935-01-359-0276	2017-05-124	2	DIBBS
5935-01-359-0276	2016-09-250	1	DIBBS
5935-01-359-0276	2016-07-188	5	DIBBS
5935-01-359-0276	2016-03-84	1	DIBBS
5935-01-359-0276	2014-04-99	1	DIBBS
5935-01-359-0276	2013-08-223	47	DIBBS
5935-01-359-0276	2012-12-346	1	Netherlands
5935-01-359-0276	2009-11-327	10	DIBBS
5935-01-359-0276	2009-10-293	6	DIBBS
5935-01-359-0276	2008-08-242	9	DIBBS
5935-01-359-0276	2007-11-313	6	DIBBS
5935-01-359-0276	2006-02-52	16	DIBBS

Cross Reference | NSN 5935-01-359-0276

Part Number	Cage Code	Manufacturer
M83723/88Y1624N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-83723/88	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-359-0276

Compare

Related Products | NSN 5935-01-359-0276

5935-01-359-0277, 5935-01-359-0302, 5935-01-359-0303, 5935-01-359-0304, 5935-01-359-0305

Technical Data | NSN 5935-01-359-0276

Characteristic	Specifications
BODY STYLE	3G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH	0.904 INCHES MAXIMUM
OVERALL HEIGHT	1.250 INCHES NOMINAL
OVERALL WIDTH	1.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	0.969 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	0.969 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.708 INCHES MINIMUM AND 0.728 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER	0.116 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.062 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	STEEL CORROSION RESISTING
SHELL SURFACE TREATMENT	PASSIVATE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0 AND 105.0 AND 140.0 AND 215.0 AND 265.0
MATING END QUANTITY	1

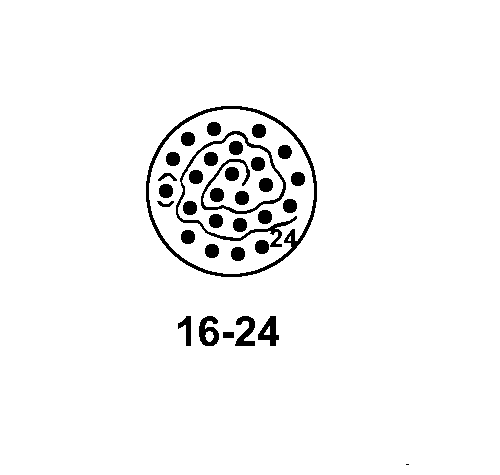

CONTACT POSITION ARRANGEMENT STYLE	BACW 16-24 SINGLE MATING END
INSERT MATERIAL	PLASTIC EPOXY SINGLE MATING END
INCLUDED CONTACT QUANTITY	24 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	METAL FERROUS SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF
III OPERATING TEMP RATING	-65.0 DEG CELSIUS MINIMUM AND 200.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.024 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
