NSN 5935-01-348-0872 DPX2MA45PW8P34B 0200, DPX2MA45PW8P34B0200, 91653137
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-348-0872 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPX2MA45PW8P34B 0200, DPX2MA45PW8P34B0200, 91653137, 5935-01-348-0872, 01-348-0872, 5935013480872, 013480872
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 1991 | 01-348-0872 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-348-0872
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-348-0872
Technical Data | NSN 5935-01-348-0872
| Characteristic | Specifications |
|---|---|

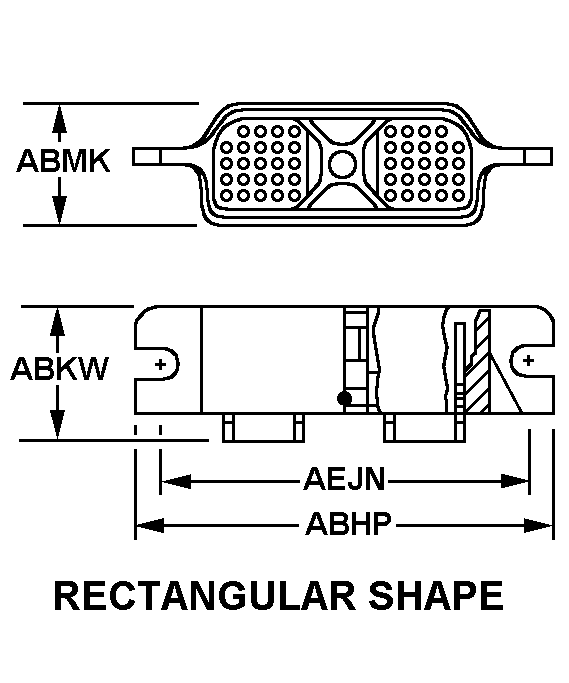

| BODY STYLE | 59G RECTANGULAR SHAPE |
| MATING END QUANTITY | 2 |
| INCLUDED CONTACT QUANTITY | 45 1ST MATING END 1ST CONTACT GROUPING 8 2ND MATING END 2ND CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN ALL MATING ENDS ALL CONTACT GROUPINGS |
| FURNISHED ITEMS | RECEPTACLE SHELL |
Restrictions/Controls & Freight Information | NSN 5935-01-348-0872
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
