NSN 5935-01-341-0743 M83723/85R2039N, M8372385R2039N, MIL-C-83723/85
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-341-0743 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M83723/85R2039N, M8372385R2039N, MIL-C-83723/85, MILC8372385, 5935-01-341-0743, 01-341-0743, 5935013410743, 013410743
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUN 1991 | 01-341-0743 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-341-0743
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-341-0743
Technical Data | NSN 5935-01-341-0743
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.430 INCHES NOMINAL |
| OVERALL DIAMETER | 1.923 INCHES MINIMUM AND 1.954 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.761 INCHES MINIMUM AND 0.781 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.097 INCHES MINIMUM AND 0.137 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF AND UNEF |
| NOMINAL THREAD SIZE | 1.188 INCHES AND 1.312 INCHES AND 1.375 INCHES |
| THREAD CLASS | 2A AND 2A AND 2A |
| THREAD QUANTITY PER INCH | 18 AND 18 AND 18 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.190 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074,CL 3 OR 4,GRADE B MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 AND 95.0 AND 145.0 AND 220.0 AND 255.0 |
| MATING END QUANTITY | 1 |

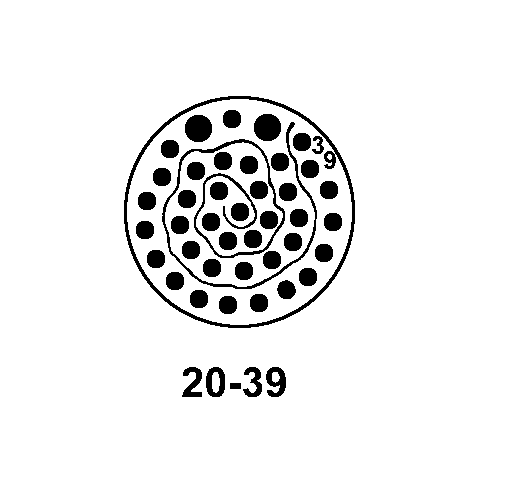

| CONTACT POSITION ARRANGEMENT STYLE | BRAJ 20-39 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 37 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
Restrictions/Controls & Freight Information | NSN 5935-01-341-0743
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-341-0743
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
