Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-330-4507 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 03601915, 0360-1915, 1110358, 111035-8, 882138, 88213-8, 5935-01-330-4507, 01-330-4507, 5935013304507, 013304507
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 DEC 1990 | 01-330-4507 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-330-4507
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-330-4507
Related Products | NSN 5935-01-330-4507
Technical Data | NSN 5935-01-330-4507
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 71G RECTANGULAR SHAPE |
| OVERALL LENGTH | 2.274 INCHES NOMINAL |
| OVERALL HEIGHT | 0.490 INCHES NOMINAL |
| OVERALL WIDTH | 0.470 INCHES NOMINAL |
| BODY HEIGHT | 0.098 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC POLYESTER |
| MATING END QUANTITY | 1 |

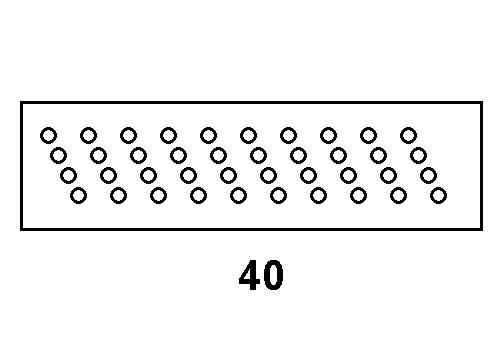

| CONTACT POSITION ARRANGEMENT STYLE | BSAW 40 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 40 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | TIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PRINTED CIRCUIT SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | ARLEIGH BURKE CLASS DDG; OLIVER PERRY CLASS FFG; TICONDEROGA CLASS CG; LANDING CRAFT AIR CUSHION; NIMITZ CLASS CVN; ENGINE, AIRCRAFT TF33-PW-102; SEAWOLF CLASS SSN; SPRUANCE CLASS DD; FORRESTAL CLASS |
