NSN 5935-01-308-4039 330R4W, 01-308-4039, 013084039
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-308-4039 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 330R4W, 5935-01-308-4039, 01-308-4039, 5935013084039, 013084039
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 SEP 1989 | 01-308-4039 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-308-4039
Demand History | NSN 5935-01-308-4039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 330R4W | 2023-05-135 | 40 | DIBBS |
| 330R4W | 2023-05-124 | 40 | DIBBS |
| 330R4W | 2020-11-310 | 91 | DIBBS |
| 330R4W | 2019-06-153 | 63 | DIBBS |
| 5935-01-308-4039 | 2018-04-116 | 42 | DIBBS |
| 5935-01-308-4039 | 2016-04-101 | 17 | DIBBS |
| 5935-01-308-4039 | 2013-08-213 | 31 | DIBBS |
| 5935-01-308-4039 | 2013-03-64 | 24 | DIBBS |
| 5935-01-308-4039 | 2013-01-03 | 7 | DIBBS |
| 5935-01-308-4039 | 2012-08-235 | 7 | DIBBS |
| 5935-01-308-4039 | 2012-08-216 | 5 | DIBBS |
| 5935-01-308-4039 | 2012-08-215 | 9 | DIBBS |
| 5935-01-308-4039 | 2012-06-167 | 5 | DIBBS |
| 5935-01-308-4039 | 2012-06-153 | 4 | DIBBS |
| 5935-01-308-4039 | 2012-04-103 | 1 | DIBBS |
| 5935-01-308-4039 | 2012-02-52 | 1 | DIBBS |
| 5935-01-308-4039 | 2012-01-14 | 1 | DIBBS |
| 5935-01-308-4039 | 2012-01-03 | 1 | DIBBS |
| 5935-01-308-4039 | 2011-11-328 | 2 | DIBBS |
| 5935-01-308-4039 | 2011-11-322 | 1 | DIBBS |
| 5935-01-308-4039 | 2009-12-344 | 1 | DIBBS |
Cross Reference | NSN 5935-01-308-4039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 330R4W | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-308-4039
Technical Data | NSN 5935-01-308-4039
| Characteristic | Specifications |
|---|---|

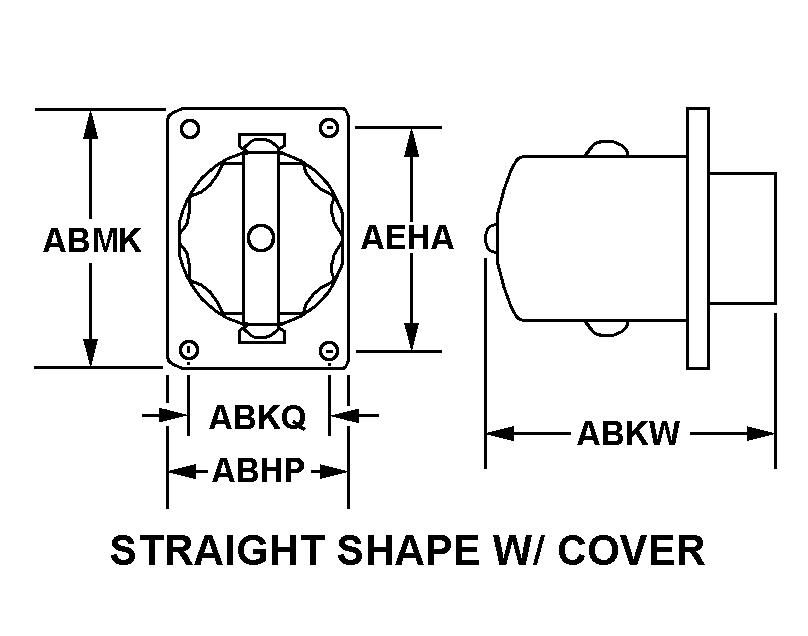

| BODY STYLE | 24K STRAIGHT SHAPE W/COVER |
| OVERALL LENGTH | 3.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.125 INCHES NOMINAL |
| OVERALL HEIGHT | 4.422 INCHES NOMINAL |
| OVERALL WIDTH | 4.812 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.125 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC POLYAMIDE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 120.0 |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 30.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF |
| III OPERATING TEMP RATING | -40.0 DEG CELSIUS MINIMUM AND 80.0 DEG CELSIUS MAXIMUM |
