NSN 5935-01-308-2947 M55302/60LD120X, M5530260LD120X, MIL-C-55302/60
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-308-2947 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M55302/60LD120X, M5530260LD120X, MIL-C-55302/60, MILC5530260, WTB120SW40SY, 5935-01-308-2947, 01-308-2947, 5935013082947, 013082947
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1989 | 01-308-2947 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

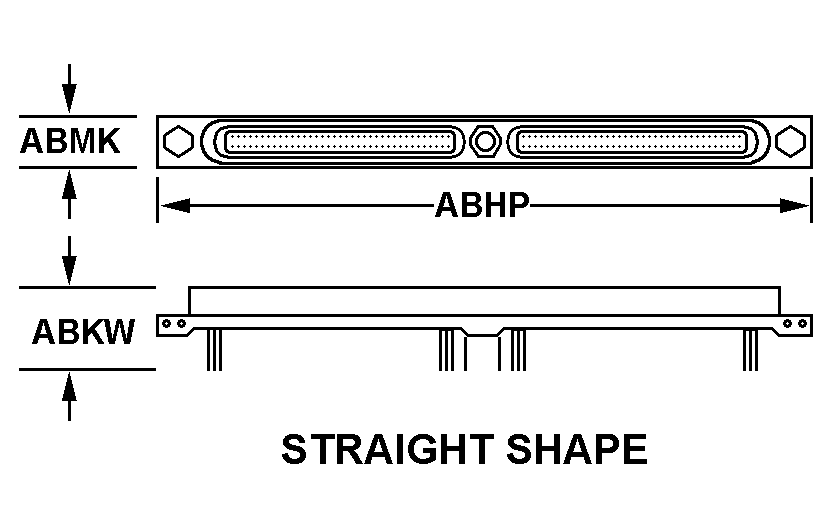

Drawings & Photos | NSN 5935-01-308-2947
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-308-2947
Technical Data | NSN 5935-01-308-2947
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 37Q STRAIGHT SHAPE |
| OVERALL LENGTH | 7.140 INCHES MINIMUM AND 7.160 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.565 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| ROUND GUIDE TYPE AND LOCATION | PIN LEFT-HAND TOP AND SOCKET RIGHT-HAND BOTTOM |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED AND PLASTIC POLYESTER GLASS FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F OR TY GDI-30F MIL SPEC 1ST MATERIAL RESPONSE OR MIL-M-24519,TY GPT-30F OR GST-40F MIL SPEC 2ND MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 120 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-750 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL OR GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 2,CLASS 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CLASS 2 FED SPEC 1ST TREATMENT RESPONSE OR MIL-G-45204,TYPE 2,CLASS 1,GRADE C MIL SPEC 3RD TREATMENT RESPONSE AND MIL-C-14550,CLASS 4 MIL SPEC 4TH TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | WIRE WRAP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| FEATURES PROVIDED | LOW INSERTION FORCE CONTACT |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT AND CORROSION RESISTANT AND |
Restrictions/Controls & Freight Information | NSN 5935-01-308-2947
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-308-2947
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
