NSN 5935-01-308-2940 MB16W1412P, MB16W-1412P, 01-308-2940
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-308-2940 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MB16W1412P, MB16W-1412P, 5935-01-308-2940, 01-308-2940, 5935013082940, 013082940
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1989 | 01-308-2940 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-308-2940
Cross Reference | NSN 5935-01-308-2940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MB16W-1412P | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-308-2940
Technical Data | NSN 5935-01-308-2940
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 1.420 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.183 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| MATING END QUANTITY | 1 |

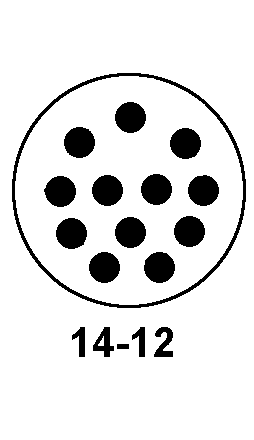

| CONTACT POSITION ARRANGEMENT STYLE | ANAF 14-12 SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-308-2940
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
