NSN 5935-01-306-5270 6417072, 641707-2, 01-306-5270
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-306-5270 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 6417072, 641707-2, 5935-01-306-5270, 01-306-5270, 5935013065270, 013065270
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1989 | 01-306-5270 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-306-5270
Cross Reference | NSN 5935-01-306-5270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 641707-2 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-306-5270
Technical Data | NSN 5935-01-306-5270
| Characteristic | Specifications |
|---|---|

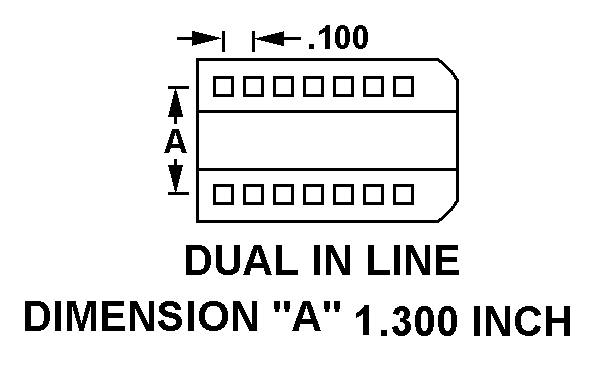

| CONTACT POSITION ARRANGEMENT STYLE | 1429A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 54B PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.716 INCHES NOMINAL |
| TERMINAL LENGTH | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.695 INCHES NOMINAL |
| OVERALL WIDTH | 0.495 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1405E FOURTEEN HOLE |
| SPECIAL FEATURES | LOW INSERTION FORCE,DUAL WIPE,REPLACABLE CONTACTS |
| III TEMP RATING | 150.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
