NSN 5935-01-304-9547 DL41248PW7, DL4-1248PW7, 26120922
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-304-9547 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DL41248PW7, DL4-1248PW7, 26120922, 2612092-2, 5935-01-304-9547, 01-304-9547, 5935013049547, 013049547
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JUL 1989 | 01-304-9547 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-304-9547
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-304-9547
Technical Data | NSN 5935-01-304-9547
| Characteristic | Specifications |
|---|---|

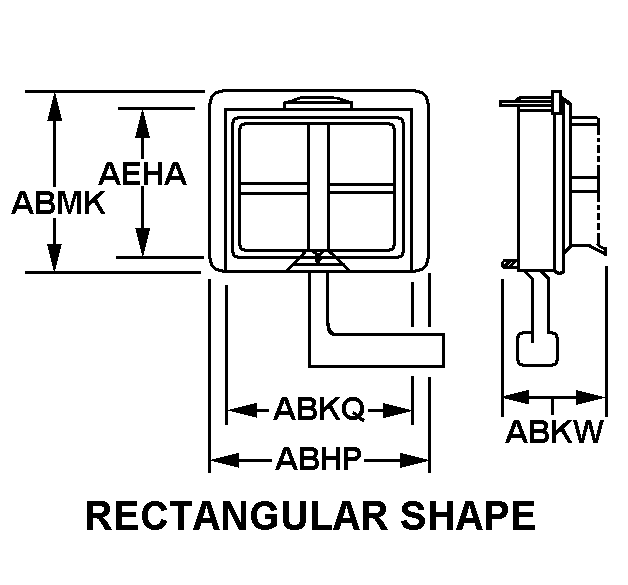

| BODY STYLE | 64G RECTANGULAR SHAPE |
| OVERALL LENGTH | 4.820 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.400 INCHES NOMINAL |
| OVERALL HEIGHT | 2.330 INCHES MAXIMUM |
| OVERALL WIDTH | 7.510 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 7.100 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.168 INCHES MINIMUM AND 0.178 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | CAM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PASSIVATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 4 |
| INSERT MATERIAL | GLASS FIBER AND PLASTIC ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 156 1ST MATING END 1ST CONTACT GROUPING 156 1ST MATING END 2ND CONTACT GROUPING 156 2ND MATING END 1ST CONTACT GROUPING 156 2ND MATING END 2ND CONTACT GROUPING 156 3RD MATING END 1ST CONTACT GROUPING 156 3RD MATING END 2ND CONTACT GROUPING 156 4TH MATING END 1ST CONTACT GROUPING 156 4TH MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | SQUARE PIN ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | WIRE WRAP ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK ALL MATING ENDS ALL CONTACT GROUPINGS |
| SPECIFICATION/STANDARD DATA | 06424-2612092 MANUFACTURERS SPECIFICATION CONTROL |
| III OPERATING TEMP RATING | 0.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 1.248 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-304-9547
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-304-9547
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
