NSN 5935-01-304-8764 HBL460R7W, 460R7W, 01-304-8764
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-304-8764 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: HBL460R7W, 460R7W, 5935-01-304-8764, 01-304-8764, 5935013048764, 013048764
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JUL 1989 | 01-304-8764 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-304-8764
Demand History | NSN 5935-01-304-8764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HBL460R7W | 2022-12-335 | 42 | DIBBS |
| HBL460R7W | 2022-03-60 | 16 | DIBBS |
| HBL460R7W | 2019-10-283 | 14 | DIBBS |
| 5935-01-304-8764 | 2018-05-126 | 14 | DIBBS |
| 5935-01-304-8764 | 2018-02-32 | 14 | DIBBS |
| 5935-01-304-8764 | 2017-03-78 | 15 | DIBBS |
| 5935-01-304-8764 | 2016-04-101 | 18 | DIBBS |
| 5935-01-304-8764 | 2015-09-246 | 8 | DIBBS |
| 5935-01-304-8764 | 2015-07-195 | 10 | DIBBS |
| 5935-01-304-8764 | 2015-04-92 | 2 | DIBBS |
| 5935-01-304-8764 | 2015-03-83 | 4 | DIBBS |
| 5935-01-304-8764 | 2014-09-253 | 1 | DIBBS |
| 5935-01-304-8764 | 2014-09-253 | 5 | DIBBS |
| 5935-01-304-8764 | 2014-07-197 | 5 | DIBBS |
| 5935-01-304-8764 | 2013-06-154 | 8 | DIBBS |
| 460R7W | 2010-08-217 | 1 | US |
| 5935-01-304-8764 | 2010-07-204 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-304-8764
Related Products | NSN 5935-01-304-8764
Technical Data | NSN 5935-01-304-8764
| Characteristic | Specifications |
|---|---|

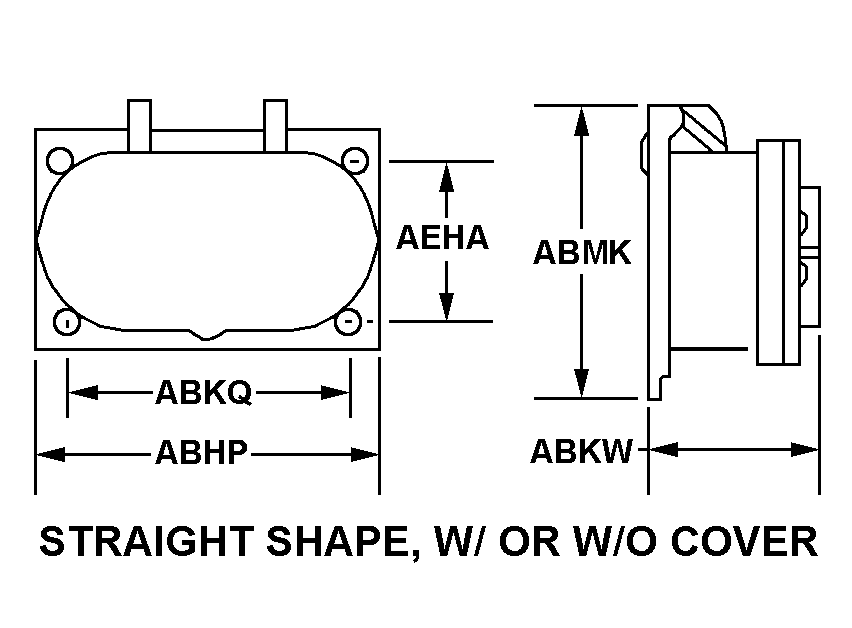

| BODY STYLE | 18K STRAIGHT SHAPE, W/ OR W/O COVER |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.875 INCHES NOMINAL |
| OVERALL HEIGHT | 5.766 INCHES NOMINAL |
| OVERALL WIDTH | 5.109 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.875 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | LOCK TAB |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC POLYAMIDE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 210.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AEFB 4 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYESTER SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 60.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 480.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | COMPRESSION SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| FEATURES PROVIDED | GROUNDED CONTACT |
| ENVIRONMENTAL PROTECTION | WATERTIGHT AND HEAT RESISTANT AND FIRE RESISTANT AND MOISTURE RESISTANT AND COLD RESISTANT |
| III OPERATING TEMP RATING | -40.0 DEG CELSIUS MINIMUM AND 80.0 DEG CELSIUS MAXIMUM |
