NSN 5935-01-296-0114 M24308/2-2F, M2430822F, MD308G15S2142
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-296-0114 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M24308/2-2F, M2430822F, MD308G15S2142, MD308G-15S2-142, ADIGC15S2, ADIGC-15S-2, DAMA15S15, DAMAK15SWS, DAMAK-15S-WS, DAMAK15SWSF0, DAMAK-15S-WS-F0, GAMAM15S, GAMAM-15S, LBAMA15SG01, LBAMA-15SG01, MIL-C-24308/2, MILC243082, PL5N76 IT. NO. 15, PL5N76ITNO15, RD15F1000MC50, 2055572, 205557-2, 2300115102, 230-01-15-102, 579R705H31, 74506M018122, 5935-01-296-0114, 01-296-0114, 5935012960114, 012960114
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 MAR 1989 | 01-296-0114 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

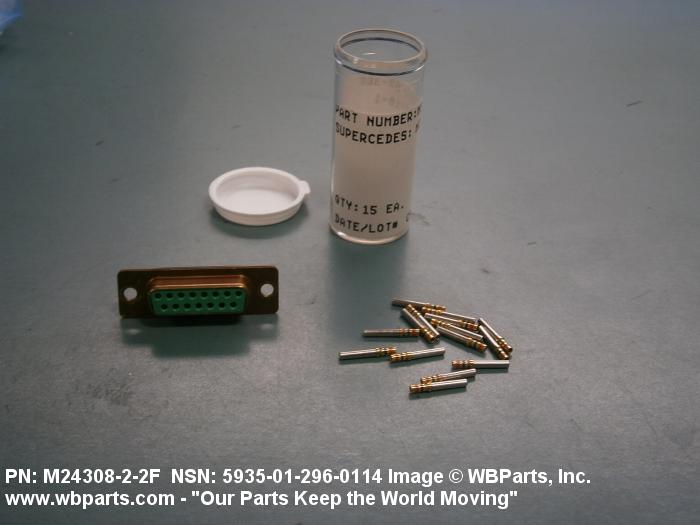

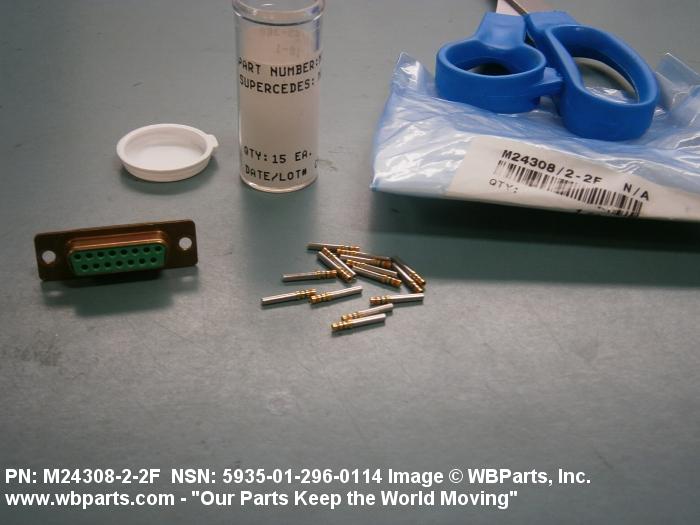

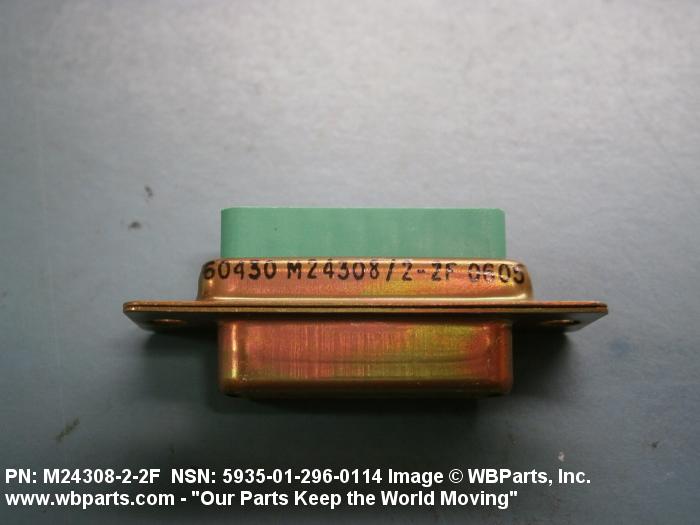

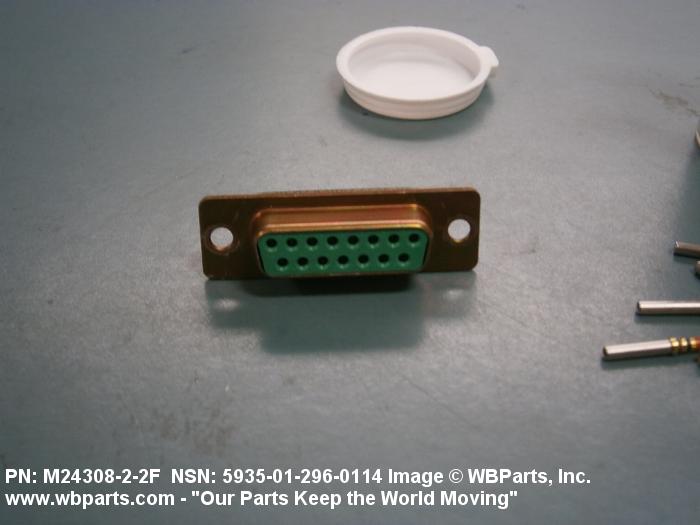

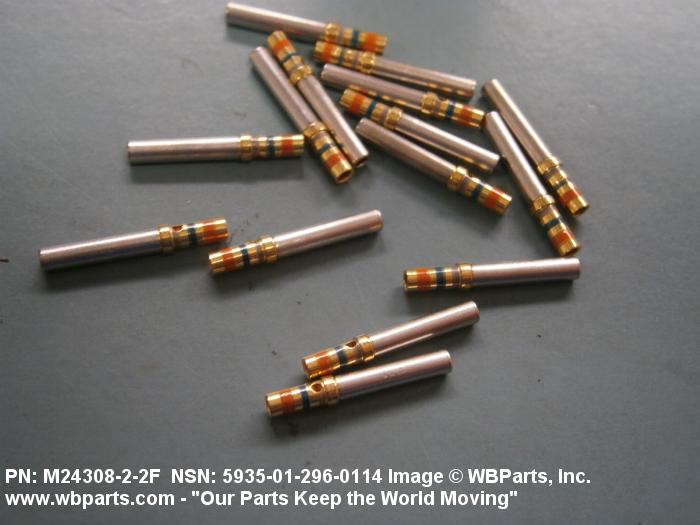

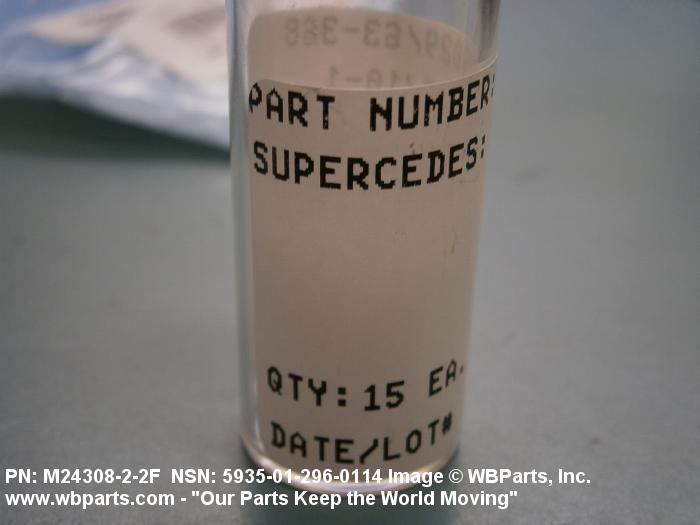

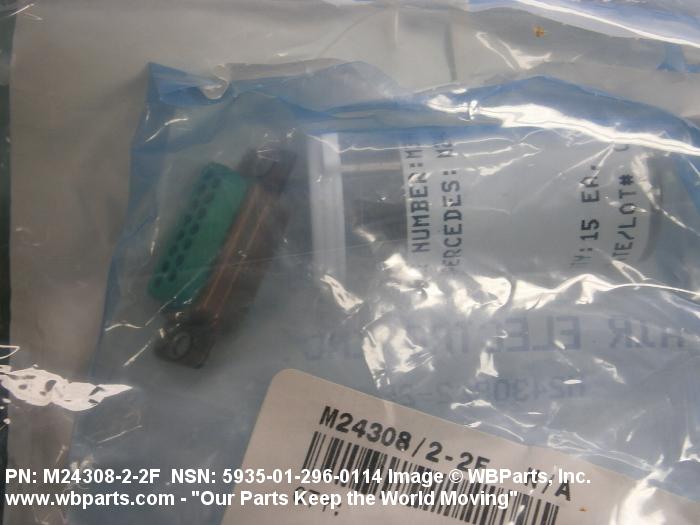

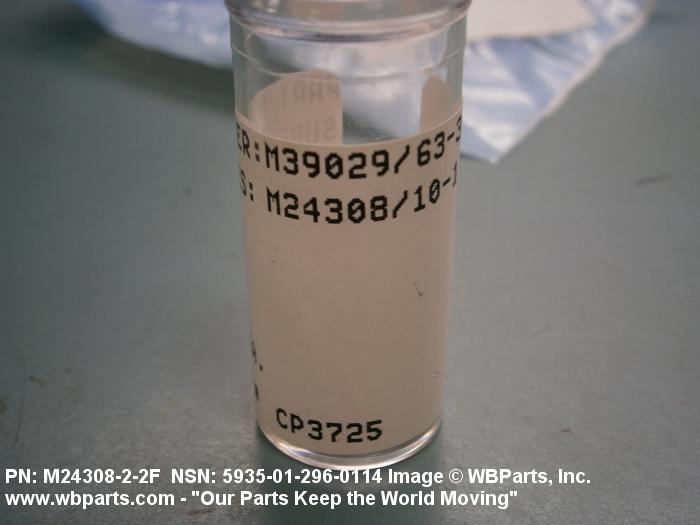

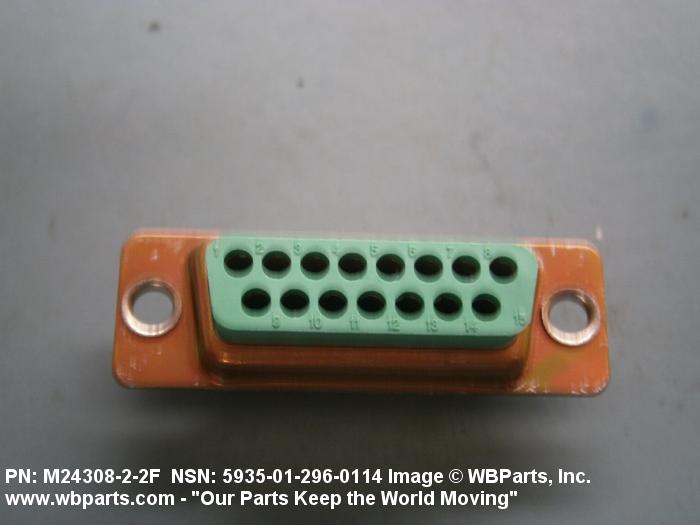

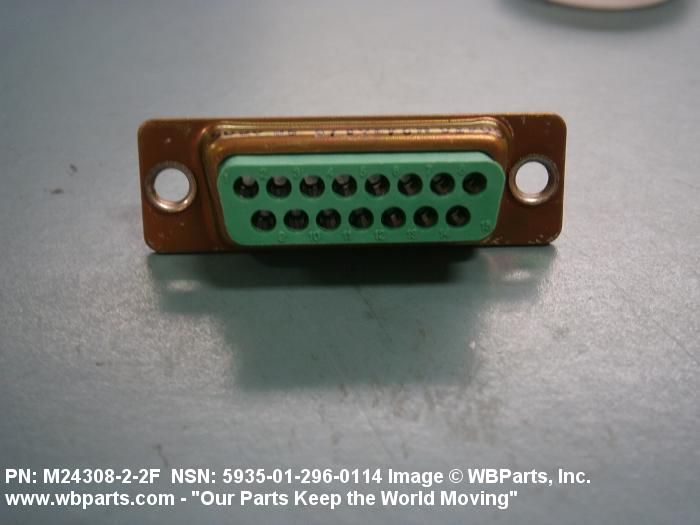

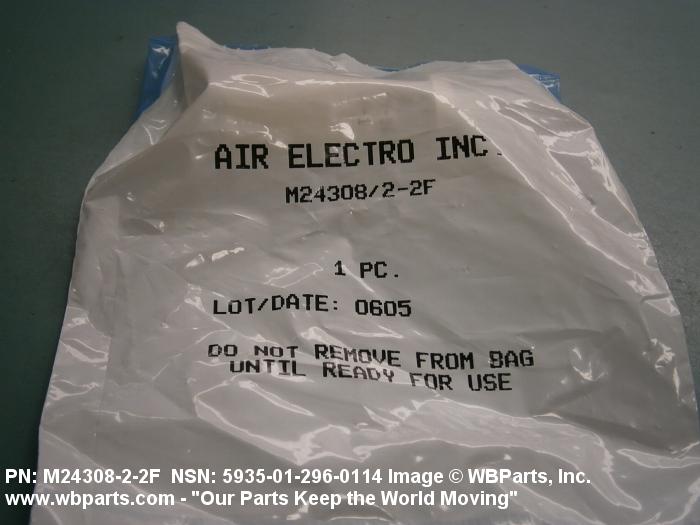

Drawings & Photos | NSN 5935-01-296-0114
Demand History | NSN 5935-01-296-0114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2430822F | 2024-11-316 | 14 | United States |
| M2430822F | 2024-05-138 | 3 | United States |
| M2430822F | 2023-09-264 | 62 | United States |
| M2430822F | 2021-08-217 | 23 | United States |
| 5935-01-296-0114 | 2020-07-203 | 4227 | DIBBS |
| M2430822F | 2018-09-256 | 1 | us |
| 5935-01-296-0114 | 2018-08-242 | 1709 | DIBBS |
| 5935-01-296-0114 | 2016-09-273 | 1009 | DIBBS |
| M2430822F | 2015-03-90 | 3 | United States |
| 5935-01-296-0114 | 2014-11-308 | 1293 | DIBBS |
| M2430822F | 2014-08-234 | 5 | China |
| M2430822F | 2013-06-174 | 1 | Malaysia |
| 5935-01-296-0114 | 2013-03-61 | 700 | DIBBS |
| 5935-01-296-0114 | 2012-10-285 | 661 | DIBBS |
| M2430822F | 2011-01-26 | 200 | US |
| 5935-01-296-0114 | 2009-03-86 | 194 | DIBBS |
| M2430822F | 2008-09-274 | 1 | US |
| 5935-01-296-0114 | 2008-04-92 | 1640 | DIBBS |
| 5935-01-296-0114 | 2008-01-08 | 1076 | DIBBS |
Cross Reference | NSN 5935-01-296-0114
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205557-2 | 00779 | TYCO ELECTRONICS CORPORATION |
| 230-01-15-102 | 71785 | CINCH CONNECTORS, INC. |
| 579R705H31 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| ADIGC-15S-2 | 60430 | ADI ELECTRONICS INC. |
| DAMA15S15 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DAMAK-15S-WS | 71468 | ITT CORPORATION DBA I T T CANNON |
| DAMAK-15S-WS-F0 | 71785 | CINCH CONNECTORS, INC. |
| DAMAK15SWSF0 | 71468 | ITT CORPORATION DBA I T T CANNON |
| GAMAM-15S | 25330 | COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR |
| LBAMA-15SG01 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| M24308/2-2F | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24308/2-2F | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MD308G-15S2-142 | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MIL-C-24308/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PL5N76 IT. NO. 15 | 02750 | EATON AEROSPACE LLC DIV ELECTRICAL SENSING & CONTROLS |
| RD15F1000-M (,C-50) | 28198 | POSITRONIC INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-296-0114
Technical Data | NSN 5935-01-296-0114
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.526 INCHES MINIMUM AND 1.556 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.693 INCHES NOMINAL |
| OVERALL WIDTH | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.307 INCHES MINIMUM AND 1.317 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | METAL |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ARBL 15 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER OR PLASTIC POLYESTER SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE SDG-F OR TYPE GPT-30F MIL SPEC 1ST MATERIAL RESPONSE AND MIL-M-14,TY SDG-F OR TYPE GPT-30F MIL SPEC 2ND MATERIAL RESPONSE OR MIL-M-24519,TYPE GET-30F MIL SPEC 3RD MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 15 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY II,GRADE C,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-24308 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24308/2 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24308/2 |
Restrictions/Controls & Freight Information | NSN 5935-01-296-0114
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
