NSN 5935-01-295-0150 MS17347R24C12P, MILC22992, MIL-C-22992
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-295-0150 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS17347R24C12P, MILC22992, MIL-C-22992, 5935-01-295-0150, 01-295-0150, 5935012950150, 012950150
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 FEB 1989 | 01-295-0150 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-295-0150
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-295-0150
Technical Data | NSN 5935-01-295-0150
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.892 INCHES MINIMUM AND 1.953 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.750 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.209 INCHES MINIMUM AND 1.229 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.094 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF AND DOUBLE STUB AND UN |
| NOMINAL THREAD SIZE | 1.625 INCHES AND 1.750 INCHES AND 1.875 INCHES |
| THREAD CLASS | 2A AND 2A AND 2A |
| THREAD QUANTITY PER INCH | 18 AND 10 AND 16 |
| THREAD DIRECTION | LEFT-HAND AND RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

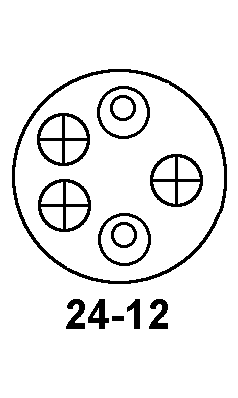

| CONTACT POSITION ARRANGEMENT STYLE | AFBG 24-12 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 135.0 SINGLE MATING END 1ST CONTACT GROUPING 41.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
Restrictions/Controls & Freight Information | NSN 5935-01-295-0150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-295-0150
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
