NSN 5935-01-284-5046 CMO06S6T, CMO-06-S6T, 01-284-5046
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-284-5046 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: CMO06S6T, CMO-06-S6T, 5935-01-284-5046, 01-284-5046, 5935012845046, 012845046
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 25 AUG 1988 | 01-284-5046 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Cross Reference | NSN 5935-01-284-5046
Part Number | Cage Code | Manufacturer |
---|---|---|
CMO-06-S6T | 15912 | THOMAS AND BETTS CORP ELECTRONICS GROUP |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-284-5046
Related Products | NSN 5935-01-284-5046
Technical Data | NSN 5935-01-284-5046
Characteristic | Specifications |
---|---|
CONTACT POSITION ARRANGEMENT STYLE | 615A DUAL IN-LINE |
ACCOMMODATED CONTACT QUANTITY | 6 |
CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
CONTACT MATERIAL | BERYLLIUM COPPER |
CONTACT SURFACE TREATMENT | TIN |
BODY STYLE | 69B TOP MOUNT |
OVERALL LENGTH | 0.300 INCHES MAXIMUM |
TERMINAL LENGTH | 0.125 INCHES NOMINAL |
OVERALL HEIGHT | 0.390 INCHES NOMINAL |
OVERALL WIDTH | 0.400 INCHES NOMINAL |
BODY MATERIAL | GLASS AND PLASTIC |
TERMINAL TYPE AND QUANTITY | 6 PIN |
MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS OR PRINTED CIRCUIT |
MOUNTING METHOD | TERMINAL AND UNTHREADED HOLE |
MOUNTING HOLE STYLE | 20D SINGLE MOUNTING HOLE/SLOT |
MOUNTING HOLE DIAMETER | 0.092 INCHES NOMINAL |

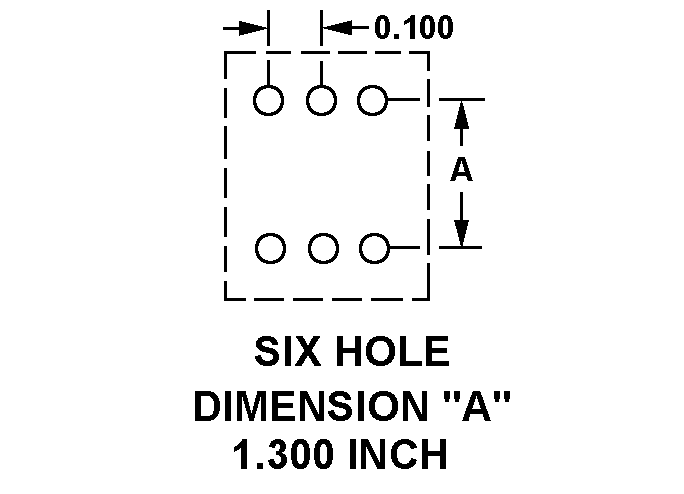

PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 627E SIX HOLE |
POLARIZATION TYPE | SLOT |
Restrictions/Controls & Freight Information | NSN 5935-01-284-5046
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
