NSN 5935-01-269-1119 5893884, 01-269-1119, 012691119
Product Details | ELECTRICAL CONNECTOR RETAINER
5935-01-269-1119 An item specifically designed to restrain the movement of an electrical connector, when the latter is mounted in another item. Includes clamps, clips, and similar restraining devices specifically designed for this function. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: 5893884, 5935-01-269-1119, 01-269-1119, 5935012691119, 012691119
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 DEC 1987 | 01-269-1119 | 02892 ( RETAINER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-269-1119
Cross Reference | NSN 5935-01-269-1119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5893884 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-269-1119
Related Products | NSN 5935-01-269-1119
Technical Data | NSN 5935-01-269-1119
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4027 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE AND DICHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 3,CLASS 1 MIL SPEC 1ST TREATMENT RESPONSE |

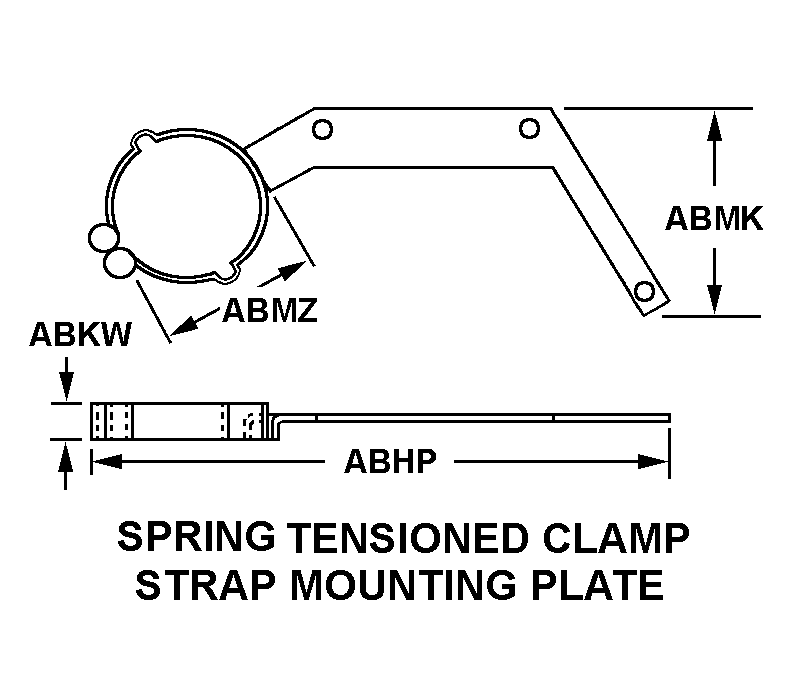

| STYLE DESIGNATOR | 48B SPRING TENSIONED CLAMP STRAP MOUNTING PLATE |
| OVERALL LENGTH | 8.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.185 INCHES NOMINAL |
| OVERALL WIDTH | ANY ACCEPTABLE |
| DIAMETER | 2.840 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | HOLES |
| MOUNTING FACILITY TYPE AND QUANTITY | 7 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5935-01-269-1119
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-269-1119
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
