NSN 5935-01-327-4934 M24308/25-5, M24308255, 74520M013102
Product Details | ELECTRICAL CONNECTOR RETAINER
5935-01-327-4934 An item specifically designed to restrain the movement of an electrical connector, when the latter is mounted in another item. Includes clamps, clips, and similar restraining devices specifically designed for this function. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: M24308/25-5, M24308255, 74520M013102, 5935-01-327-4934, 01-327-4934, 5935013274934, 013274934
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 OCT 1990 | 01-327-4934 | 02892 ( RETAINER, ELECTRICAL CONNECTOR ) |

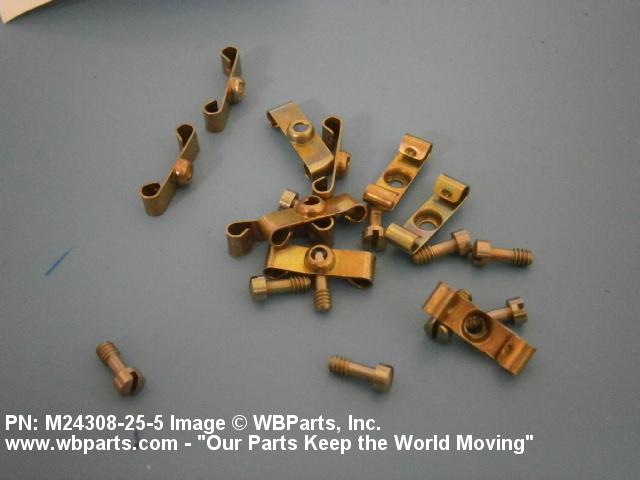

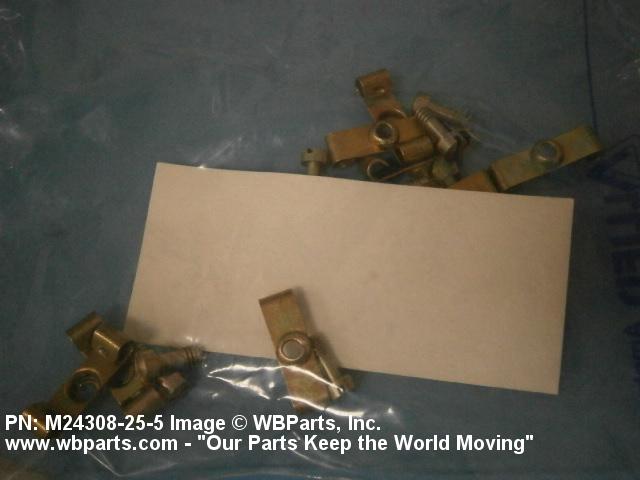

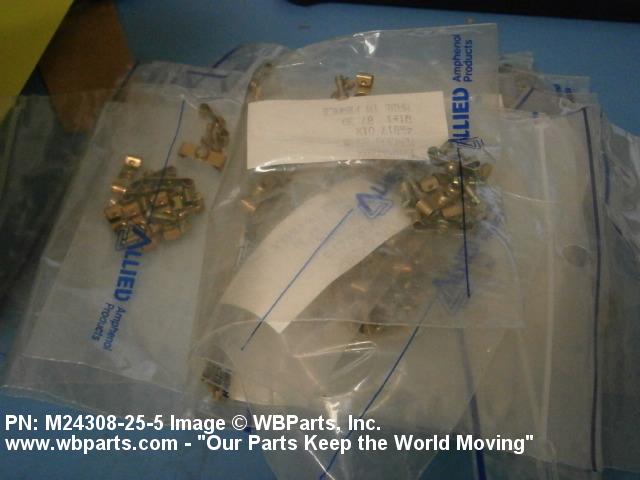

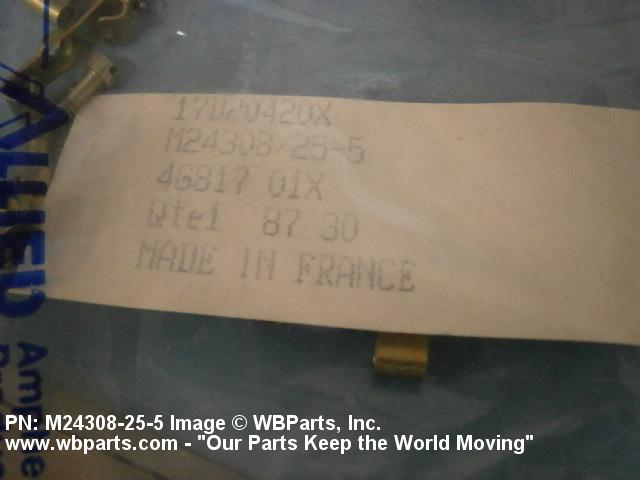

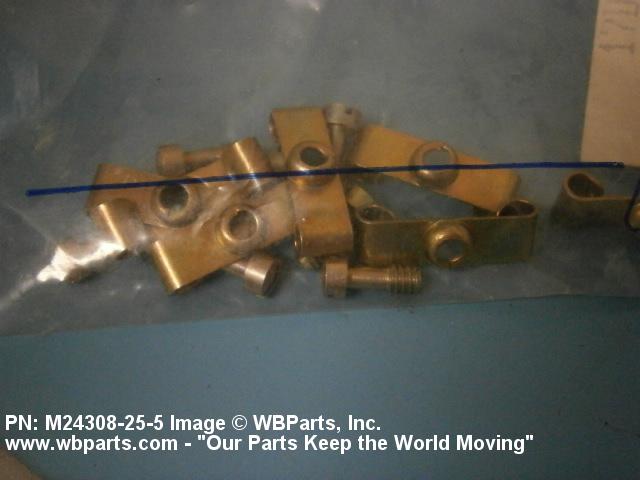

Drawings & Photos | NSN 5935-01-327-4934
Demand History | NSN 5935-01-327-4934
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M24308255 | 2011-11-320 | 10 | China |
| M24308255 | 2011-03-69 | 10 | Hong Kong |
Cross Reference | NSN 5935-01-327-4934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24308/25-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-327-4934
Technical Data | NSN 5935-01-327-4934
| Characteristic | Specifications |
|---|---|
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24308/25-5 |
Restrictions/Controls & Freight Information | NSN 5935-01-327-4934
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
