NSN 5935-01-238-5862 HRFA5JV13, HRFA-5JV13, T530 005 902
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-238-5862 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: HRFA5JV13, HRFA-5JV13, T530 005 902, T530005902, 31796082, 3179608-2, 5935-01-238-5862, 01-238-5862, 5935012385862, 012385862
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1986 | 01-238-5862 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-238-5862
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-238-5862
Technical Data | NSN 5935-01-238-5862
| Characteristic | Specifications |
|---|---|

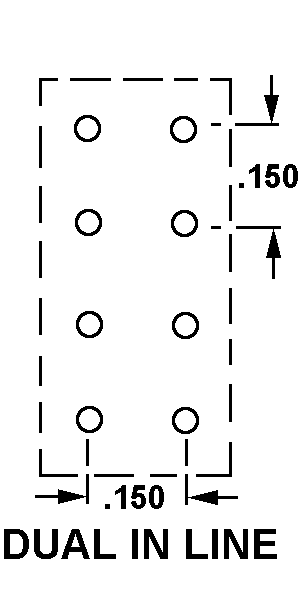

| CONTACT POSITION ARRANGEMENT STYLE | 825A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | GOLD |

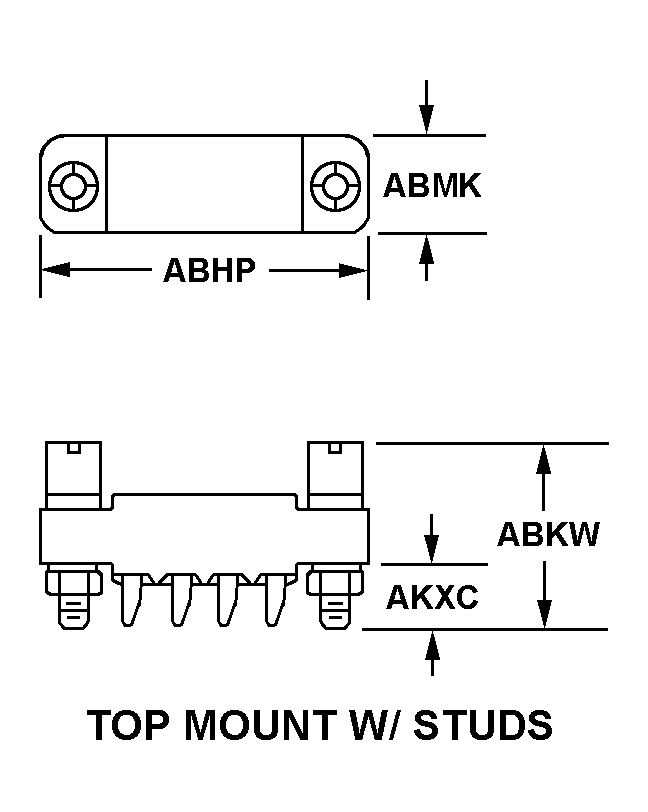

| BODY STYLE | 53B TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.100 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | 0.295 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.269 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |

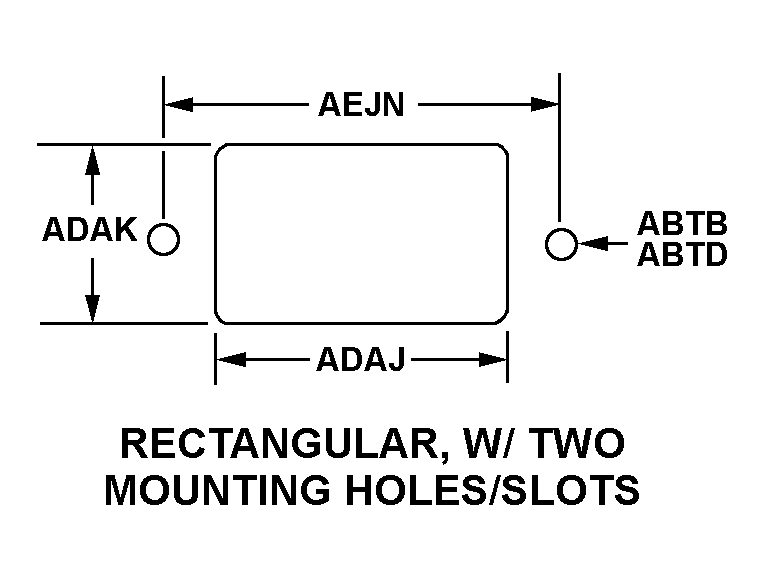

| MOUNTING HOLE STYLE | 27D RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.610 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.295 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.850 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | CONTACT POSITION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-238-5862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-238-5862
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
