NSN 5935-01-215-4268 CMM7522SSS25GDF50, CMM75-22SSS25GDF-50, SGM75SG

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-215-4268 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: CMM7522SSS25GDF50, CMM75-22SSS25GDF-50, SGM75SG, SGM75-SG, 312406-002, 5935-01-215-4268, 01-215-4268, 5935012154268, 312406002, 012154268

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	24 AUG 1985	01-215-4268	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

Drawings & Photos | NSN 5935-01-215-4268

Part Number	Request Date	QTY	Origin
CMM75-22SSS25GDF-50	2023-10-275	110	DIBBS
SGM75-SG	2023-10-275	110	DIBBS
CMM75-22SSS25GDF-50	2023-07-191	110	DIBBS
SGM75-SG	2023-07-191	110	DIBBS
CMM75-22SSS25GDF-50	2023-06-180	110	DIBBS
SGM75-SG	2023-06-180	110	DIBBS
CMM75-22SSS25GDF-50	2023-06-172	110	DIBBS
SGM75-SG	2023-06-172	110	DIBBS
CMM75-22SSS25GDF-50	2023-06-158	110	DIBBS
SGM75-SG	2023-06-158	110	DIBBS
CMM75-22SSS25GDF-50	2023-05-145	110	DIBBS
SGM75-SG	2023-05-145	110	DIBBS
CMM75-22SSS25GDF-50	2021-01-19	22	DIBBS
SGM75-SG	2021-01-19	22	DIBBS
CMM75-22SSS25GDF-50	2021-01-07	22	DIBBS
SGM75-SG	2021-01-07	22	DIBBS
CMM75-22SSS25GDF-50	2020-07-211	22	DIBBS
SGM75-SG	2020-07-211	22	DIBBS
CMM75-22SSS25GDF-50	2019-11-329	73	DIBBS
SGM75-SG	2019-11-329	73	DIBBS
CMM75-22SSS25GDF-50	2019-11-317	73	DIBBS
SGM75-SG	2019-11-317	73	DIBBS
CMM75-22SSS25GDF-50	2019-07-199	16	DIBBS
SGM75-SG	2019-07-199	16	DIBBS
5935-01-215-4268	2018-09-267	9	DIBBS
5935-01-215-4268	2018-09-256	9	DIBBS

Cross Reference | NSN 5935-01-215-4268

Part Number	Cage Code	Manufacturer
312406-002	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
CMM75-22SSS25GDF-50	95238	WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS
SGM75-SG	28198	POSITRONIC INDUSTRIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-215-4268

Compare

Related Products | NSN 5935-01-215-4268

5935-01-215-4269, 5935-01-215-4270, 5935-01-215-4302, 5935-01-215-4304, 5935-01-215-4305

Technical Data | NSN 5935-01-215-4268

Characteristic	Specifications
BODY STYLE	40G RECTANGULAR SHAPE
OVERALL LENGTH	1.680 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.375 INCHES NOMINAL
OVERALL HEIGHT	0.720 INCHES NOMINAL
OVERALL WIDTH	0.750 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	0.500 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.093 INCHES NOMINAL
THREADED DEVICE TYPE	MOUNTING STUD
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.112 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	40
THREAD DIRECTION	RIGHT-HAND
POLARIZATION METHOD	GUIDE PIN/SOCKET
MATING END QUANTITY	1

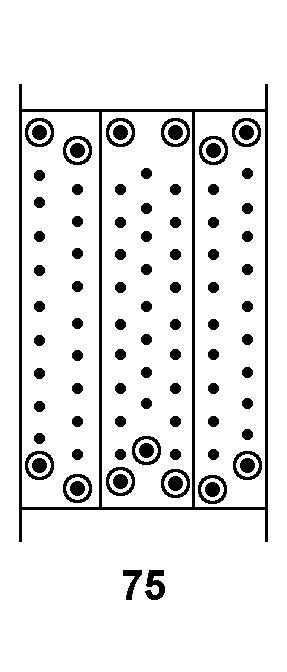

CONTACT POSITION ARRANGEMENT STYLE	DEAD 75 SINGLE MATING END
INSERT MATERIAL	PLASTIC DIALLYL PHTHALATE AND GLASS FIBER SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14,TY GDI-30F MIL SPEC ALL MATERIAL RESPONSES SINGLE MATING END
INCLUDED CONTACT QUANTITY	75 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-750 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	MIL-G-45204,TY 1,GRADE C MIL SPEC

Restrictions/Controls & Freight Information | NSN 5935-01-215-4268

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-215-4268

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
