NSN 5935-01-214-0701 MS3454W12S3S, MS3454W12S-3S, MILC5015
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-214-0701 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3454W12S3S, MS3454W12S-3S, MILC5015, MIL-C-5015, 0740748, 5935-01-214-0701, 01-214-0701, 5935012140701, 012140701
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 AUG 1985 | 01-214-0701 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

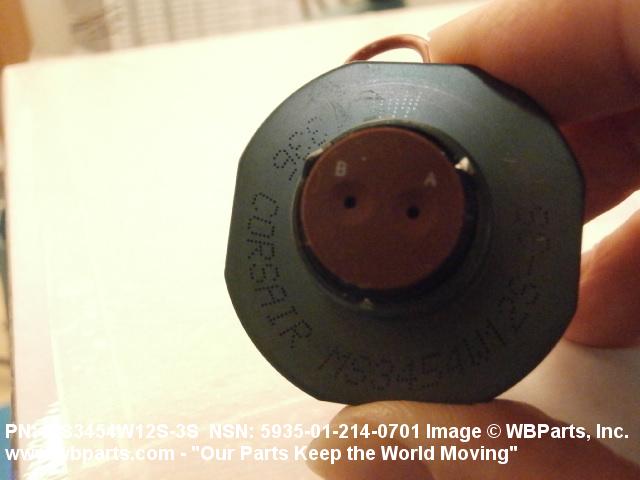

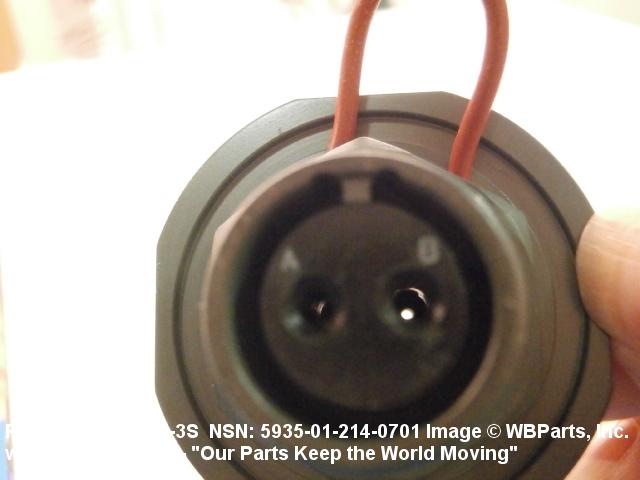

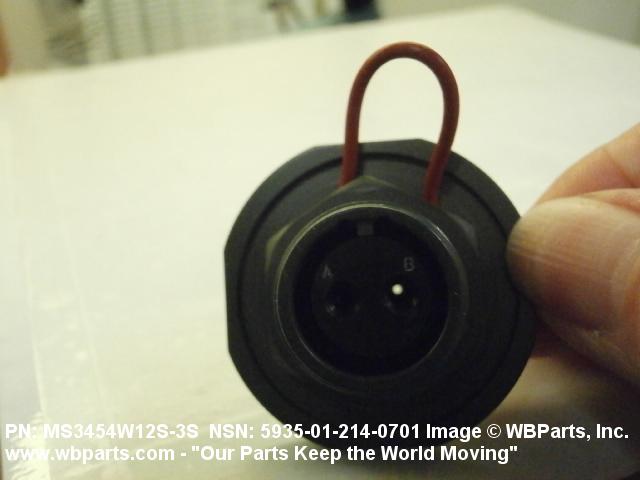

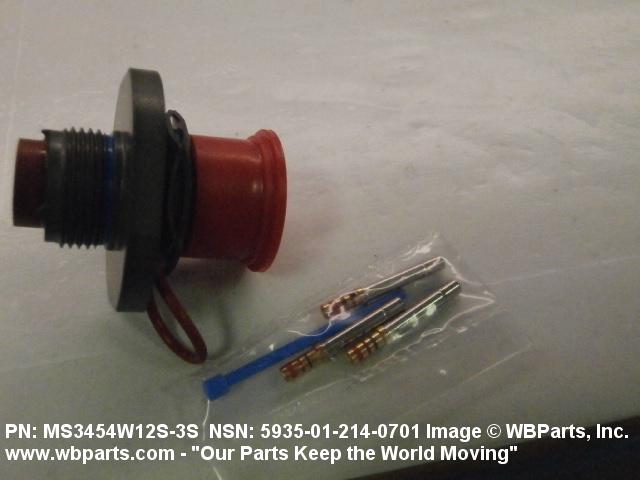

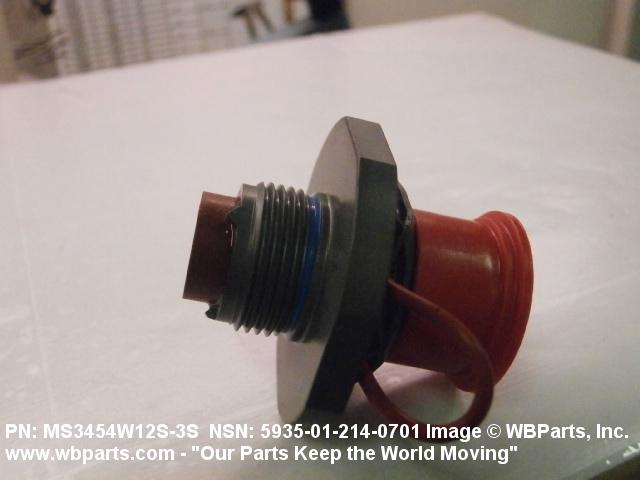

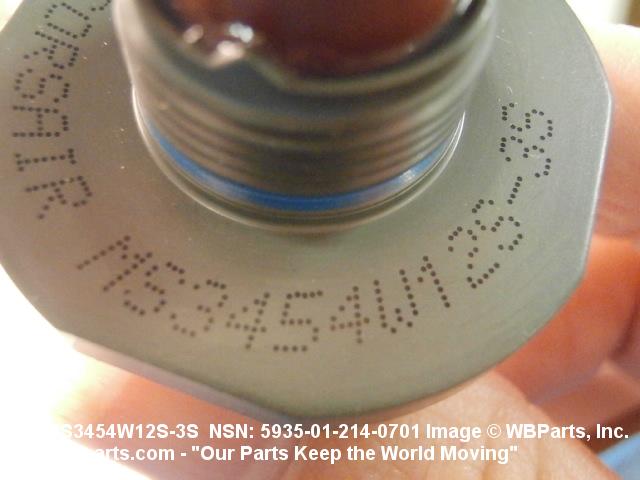

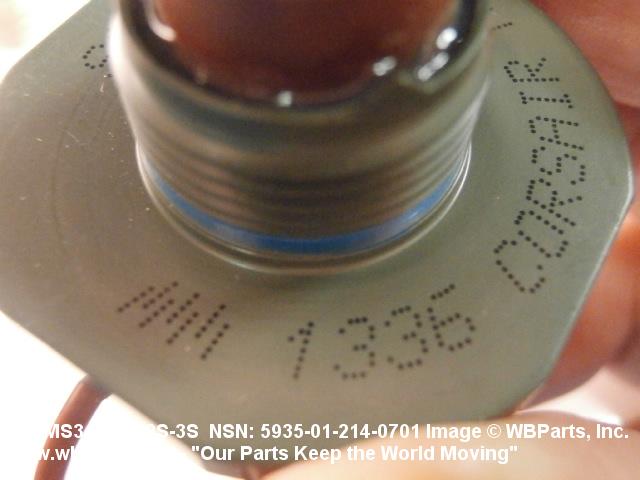

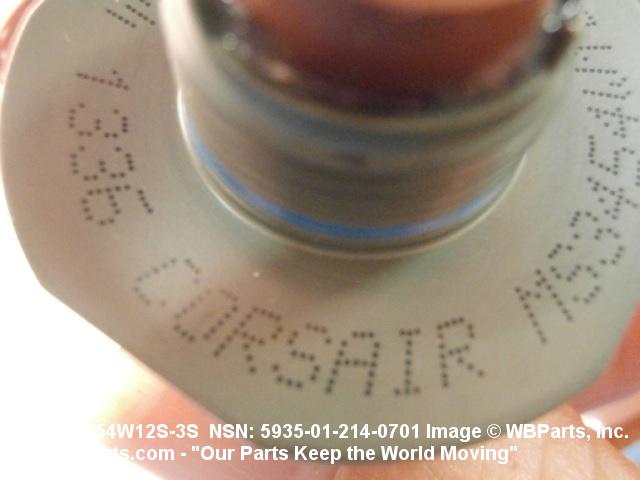

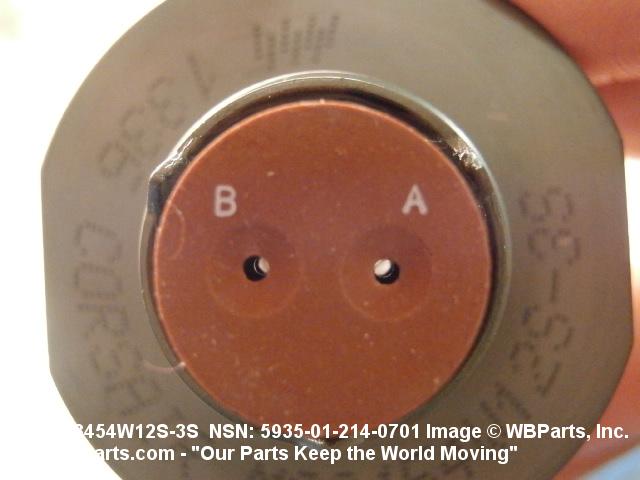

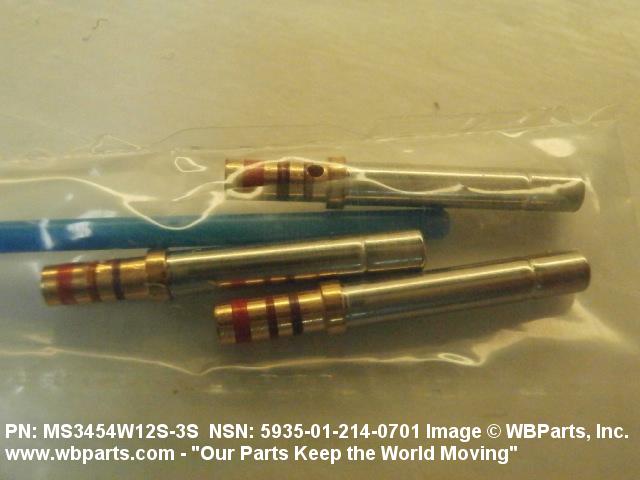

Drawings & Photos | NSN 5935-01-214-0701
Demand History | NSN 5935-01-214-0701
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-214-0701 | 2024-08-214 | 259 | DIBBS |
| 5935-01-214-0701 | 2023-04-107 | 124 | DIBBS |
| 5935-01-214-0701 | 2022-08-234 | 43 | DIBBS |
| 5935-01-214-0701 | 2022-08-223 | 43 | DIBBS |
| 5935-01-214-0701 | 2022-04-115 | 32 | DIBBS |
| 5935-01-214-0701 | 2022-04-104 | 32 | DIBBS |
| 5935-01-214-0701 | 2021-10-301 | 93 | DIBBS |
| 5935-01-214-0701 | 2020-12-363 | 76 | DIBBS |
| 5935-01-214-0701 | 2020-12-351 | 76 | DIBBS |
| 5935-01-214-0701 | 2020-12-342 | 48 | DIBBS |
| 5935-01-214-0701 | 2020-11-329 | 48 | DIBBS |
| 5935-01-214-0701 | 2020-10-303 | 97 | DIBBS |
| 5935-01-214-0701 | 2019-02-56 | 77 | DIBBS |
| 5935-01-214-0701 | 2018-12-339 | 7 | DIBBS |
| 5935-01-214-0701 | 2018-11-322 | 1 | DIBBS |
| 5935-01-214-0701 | 2018-08-233 | 1 | DIBBS |
| 5935-01-214-0701 | 2018-07-189 | 1 | DIBBS |
| 5935-01-214-0701 | 2017-12-353 | 1 | DIBBS |
| 5935-01-214-0701 | 2015-11-327 | 1 | DIBBS |
| 5935-01-214-0701 | 2015-11-315 | 1 | DIBBS |
| MS3454W12S3S | 2013-10-301 | 2 | United States |
| MS3454W12S3S | 2013-08-233 | 3 | United States |
| MS3454W12S3S | 2013-08-227 | 13 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-214-0701
Related Products | NSN 5935-01-214-0701
Technical Data | NSN 5935-01-214-0701

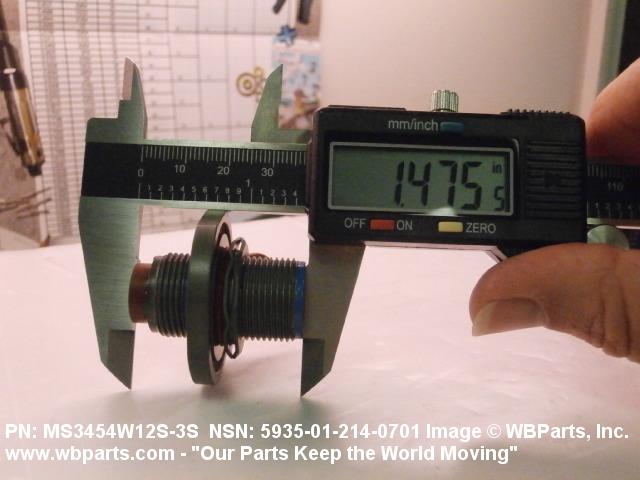

| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.031 INCHES MAXIMUM |

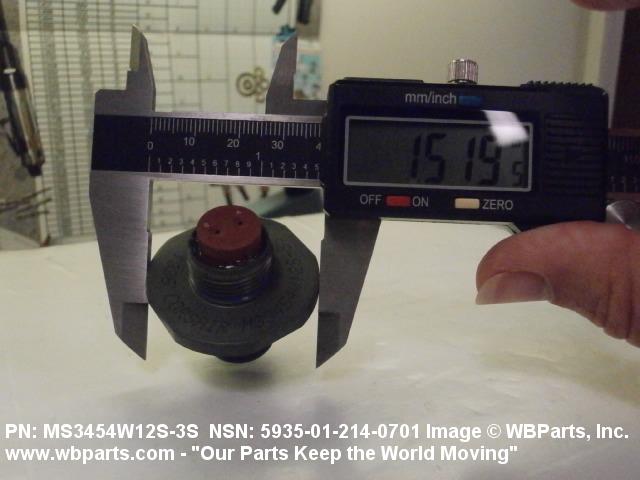

| OVERALL DIAMETER | 1.522 INCHES NOMINAL |

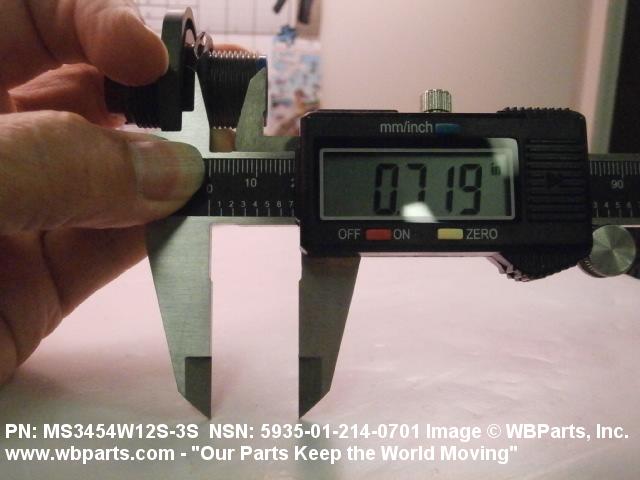

| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.720 INCHES NOMINAL |
