NSN 5935-01-209-0161 MS350928, MS3509-28 , MILE81099

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-209-0161 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS350928, MS3509-28 , MILE81099, MIL-E-81099, MIL-PRF-18148/3 , MILPRF181483, 663126, 6631-26, 70023101, 7002-3-101, 5935-01-209-0161, 01-209-0161, 5935012090161, 012090161

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	22 MAY 1985	01-209-0161	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

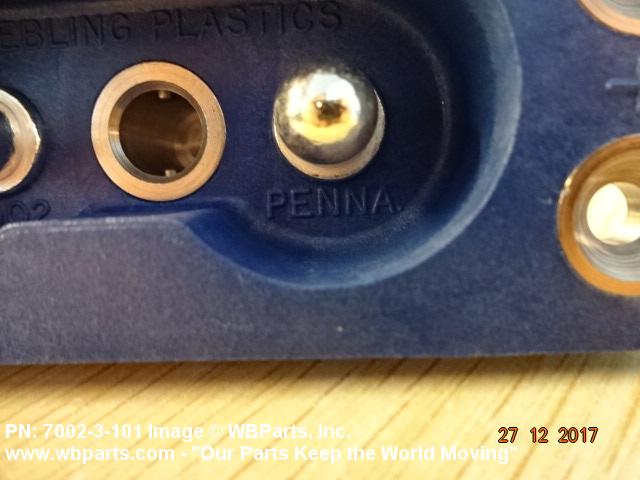

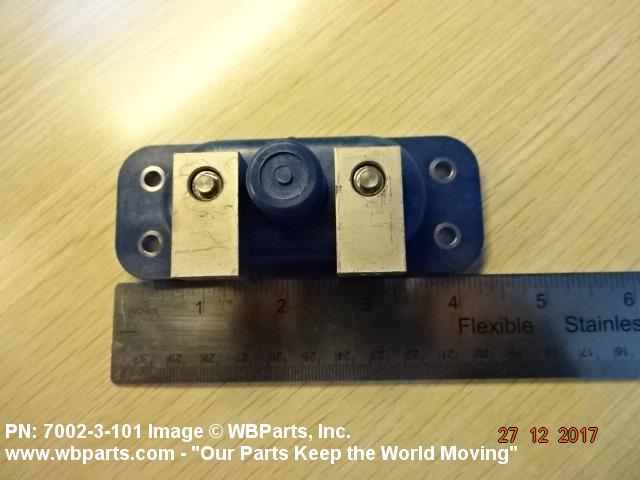

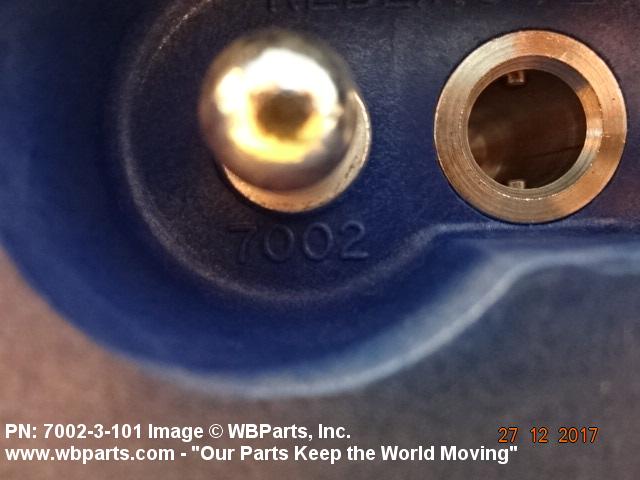

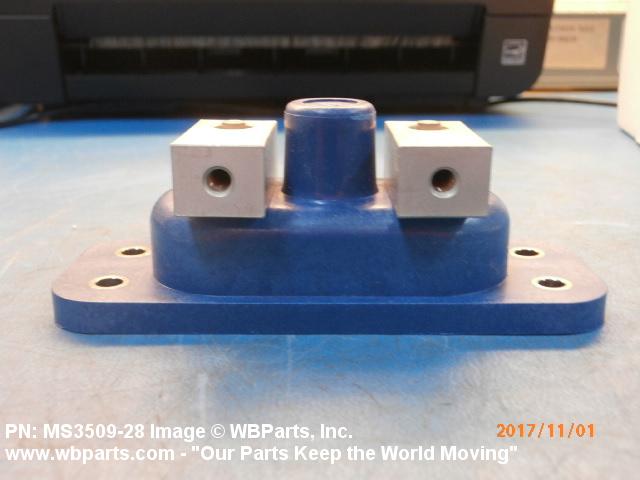

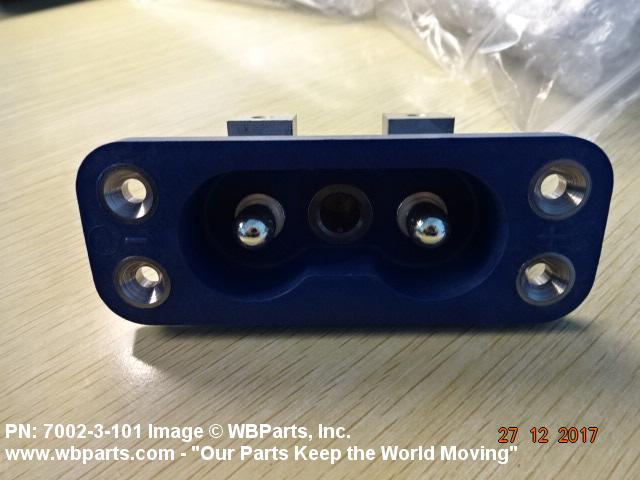

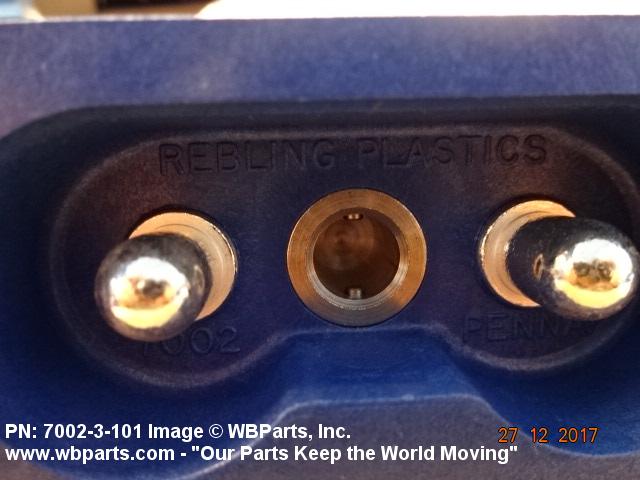

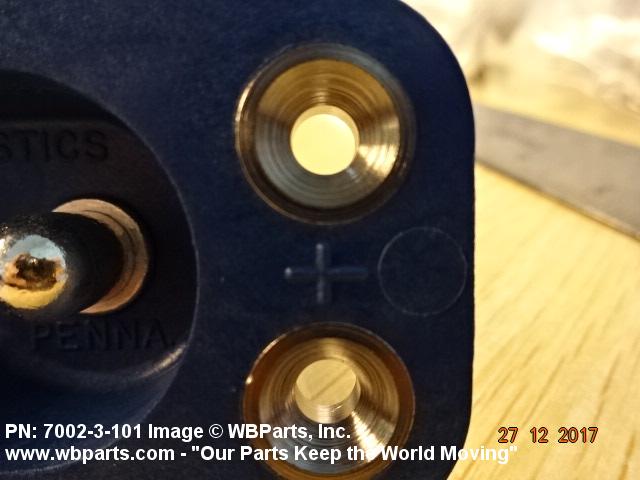

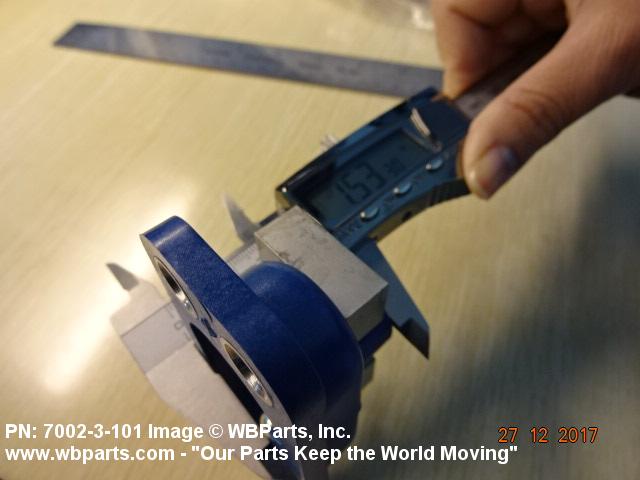

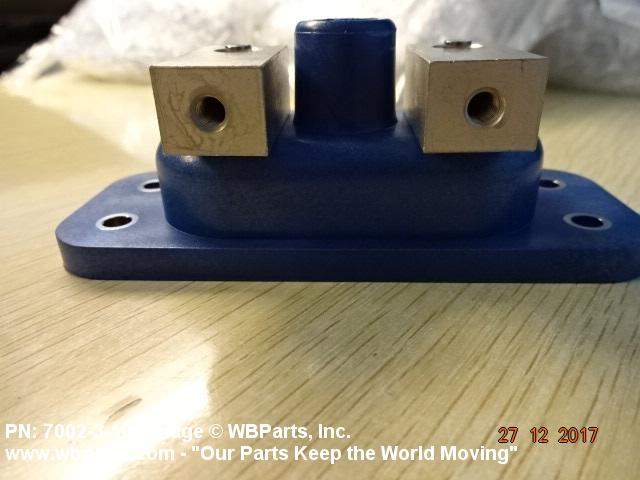

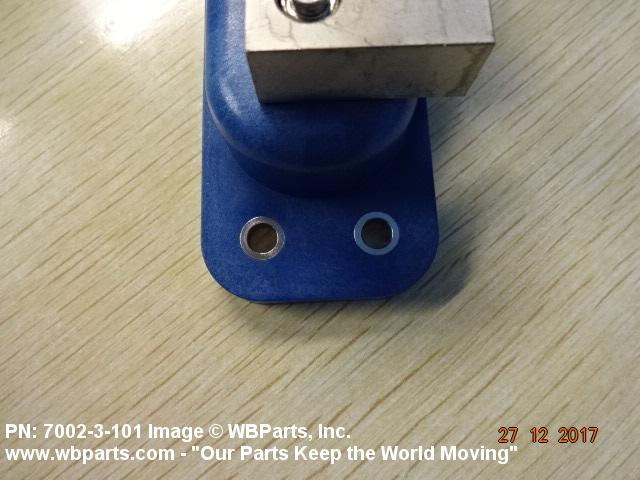

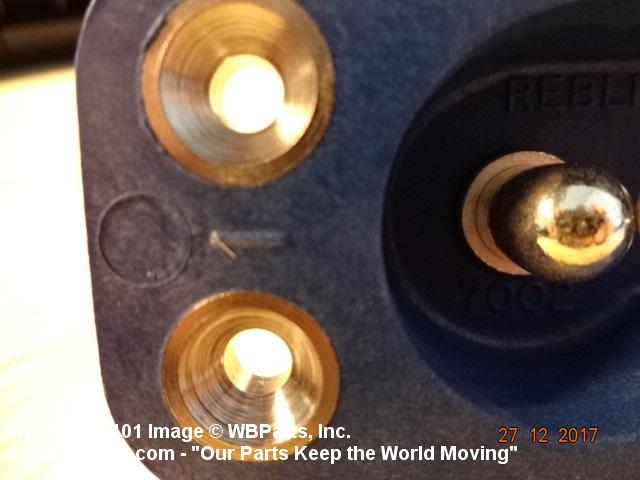

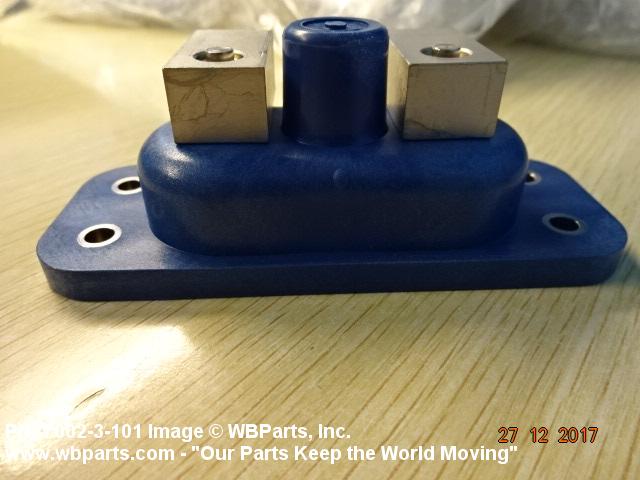

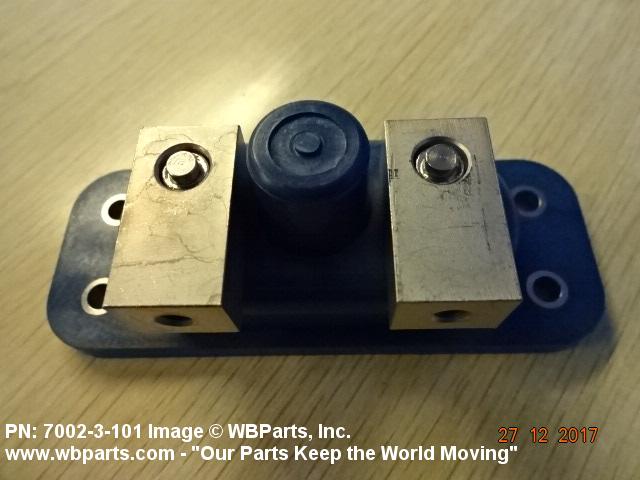

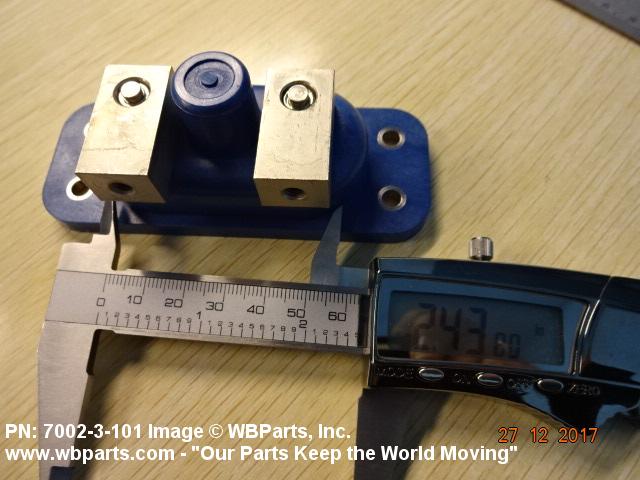

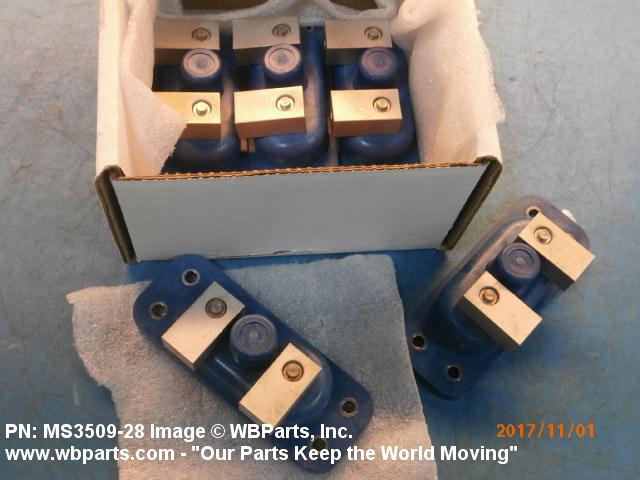

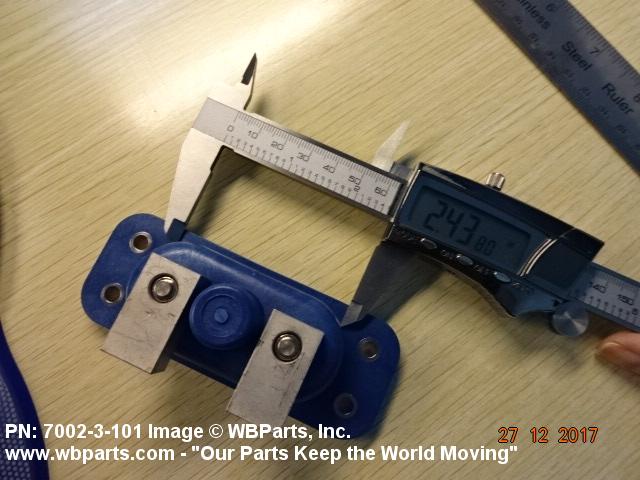

Drawings & Photos | NSN 5935-01-209-0161

Part Number	Request Date	QTY	Origin
5935-01-209-0161	2023-05-124	214	DIBBS
5935-01-209-0161	2023-01-17	158	DIBBS
5935-01-209-0161	2022-12-342	158	DIBBS
5935-01-209-0161	2022-12-341	51	DIBBS
5935-01-209-0161	2022-10-294	32	DIBBS
5935-01-209-0161	2022-08-220	32	DIBBS
5935-01-209-0161	2022-06-174	19	DIBBS
5935-01-209-0161	2020-09-258	37	DIBBS
5935-01-209-0161	2020-08-243	37	DIBBS
5935-01-209-0161	2020-07-189	1	FR
5935-01-209-0161	2020-04-107	111	DIBBS
5935-01-209-0161	2019-06-169	128	DIBBS
5935-01-209-0161	2019-03-84	1	Taiwan
5935-01-209-0161	2018-12-344	2	US
5935-01-209-0161	2017-12-341	12	Thailand
5935-01-209-0161	2016-07-213	62	DIBBS
5935-01-209-0161	2015-11-306	337	DIBBS
5935-01-209-0161	2015-10-278	80	DIBBS
5935-01-209-0161	2015-04-92	233	DIBBS
5935-01-209-0161	2015-01-27	157	DIBBS
5935-01-209-0161	2014-10-276	103	DIBBS
5935-01-209-0161	2014-04-99	72	DIBBS
5935-01-209-0161	2013-09-263	5	United States
5935-01-209-0161	2013-04-113	69	DIBBS
5935-01-209-0161	2013-02-57	50	South Korea
5935-01-209-0161	2010-10-281	73	DIBBS
5935-01-209-0161	2010-09-250	102	DIBBS
5935-01-209-0161	2010-03-64	134	DIBBS
5935-01-209-0161	2009-12-335	80	DIBBS
5935-01-209-0161	2009-10-302	65	DIBBS
5935-01-209-0161	2009-10-292	113	DIBBS
5935-01-209-0161	2009-07-203	77	DIBBS
5935-01-209-0161	2009-06-153	58	DIBBS
5935-01-209-0161	2009-04-112	16	DIBBS
5935-01-209-0161	2008-07-191	142	DIBBS
5935-01-209-0161	2008-05-126	172	DIBBS
5935-01-209-0161	2008-04-95	81	DIBBS
5935-01-209-0161	2008-03-81	103	DIBBS
5935-01-209-0161	2007-12-346	48	DIBBS
5935-01-209-0161	2007-05-128	160	DIBBS
5935-01-209-0161	2006-06-171	152	DIBBS

Cross Reference | NSN 5935-01-209-0161

Part Number	Cage Code	Manufacturer
6631-26	07639	GE AVIATION SYSTEMS LLC DBA GE AVIATION
6631-26	09052	SAFT AMERICA INC DBA TRANSPORTATION DIVISION
7002-3-101	30525	ROCAL CORPORATION DBA REBLING PLASTICS
MIL-E-81099	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-18148/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3509-28	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3509-28	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-209-0161

Compare

Related Products | NSN 5935-01-209-0161

5935-01-209-0181, 5935-01-209-0244, 5935-01-209-0360, 5935-01-209-0361, 5935-01-209-0362

Technical Data | NSN 5935-01-209-0161

Characteristic	Specifications

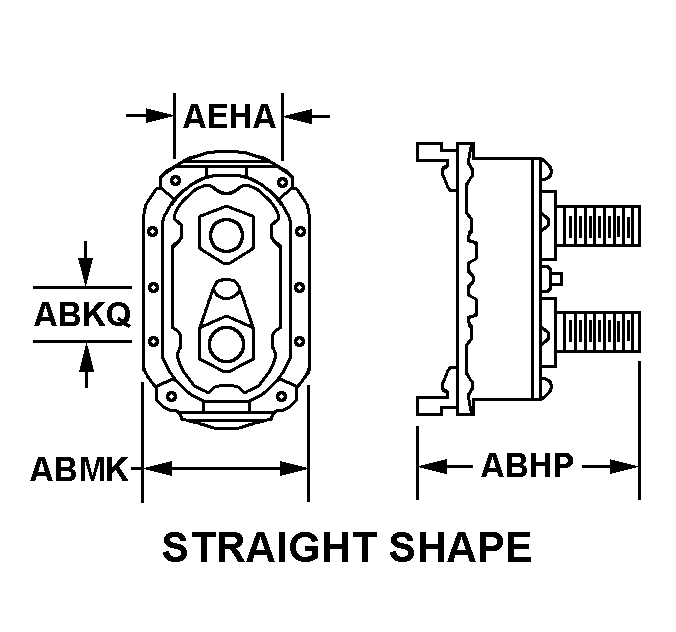

BODY STYLE	19K STRAIGHT SHAPE
OVERALL LENGTH	4.280 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.438 INCHES NOMINAL

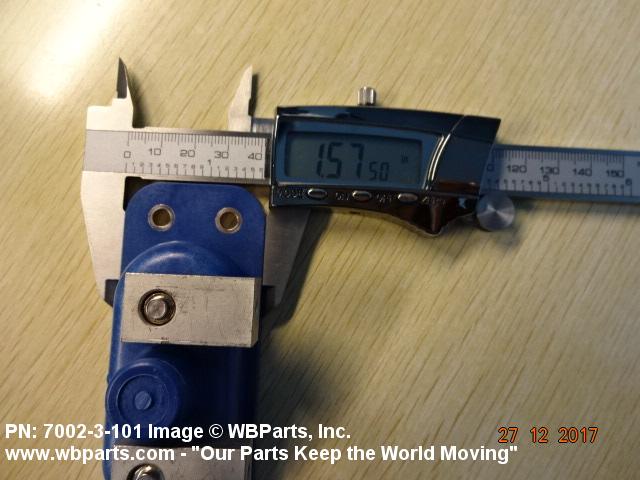

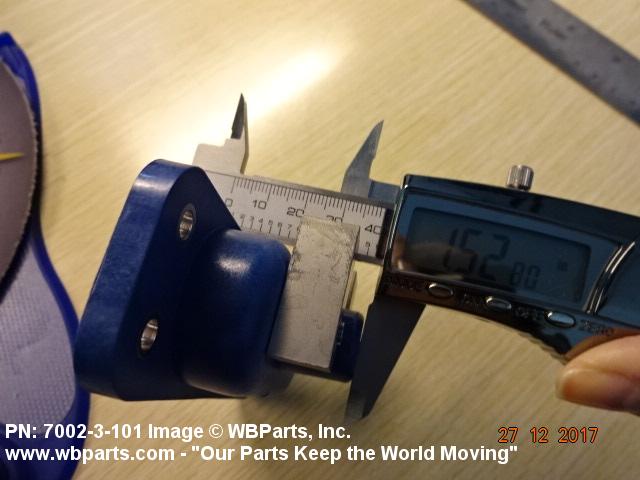

OVERALL HEIGHT	1.607 INCHES NOMINAL

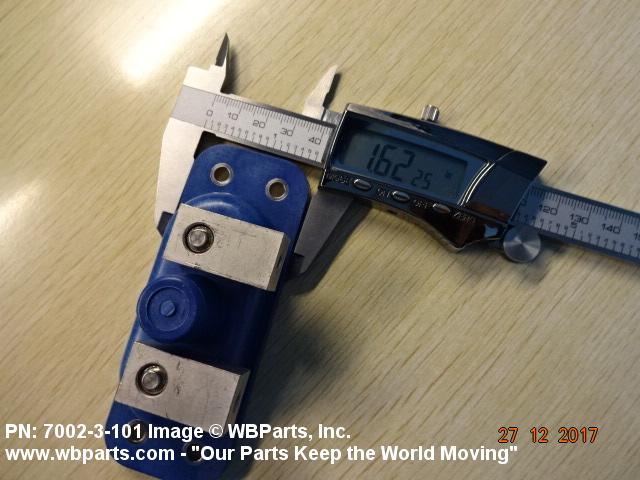

OVERALL WIDTH	1.624 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	0.782 INCHES NOMINAL
POLARIZATION METHOD	MATING END
MATING END QUANTITY	1
INCLUDED CONTACT QUANTITY	2 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND THERMAL SHOCK RESISTANT AND MOISTURE RESISTANT
TEST DATA DOCUMENT	81349-MIL-E-81099 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3509 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-E-81099
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS3509-28
