NSN 5935-01-208-7278 MS181572X, MS18157-2X, M28748/09B0X01A
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-208-7278 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS181572X, MS18157-2X, M28748/09B0X01A, M2874809B0X0, M28748-09B0X0, M2874809B0X01A, MIL-C-28748/9, MILC287489, 4144500086, 4144500-086, 5935-01-208-7278, 01-208-7278, 5935012087278, 012087278
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAY 1985 | 01-208-7278 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-208-7278
Demand History | NSN 5935-01-208-7278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILC287489 | 2012-05-124 | 8 | United States |
Cross Reference | NSN 5935-01-208-7278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4144500-086 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| M28748-09B0X0 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M28748/09B0X01A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-28748/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS18157-2X | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-208-7278
Technical Data | NSN 5935-01-208-7278
| Characteristic | Specifications |
|---|---|

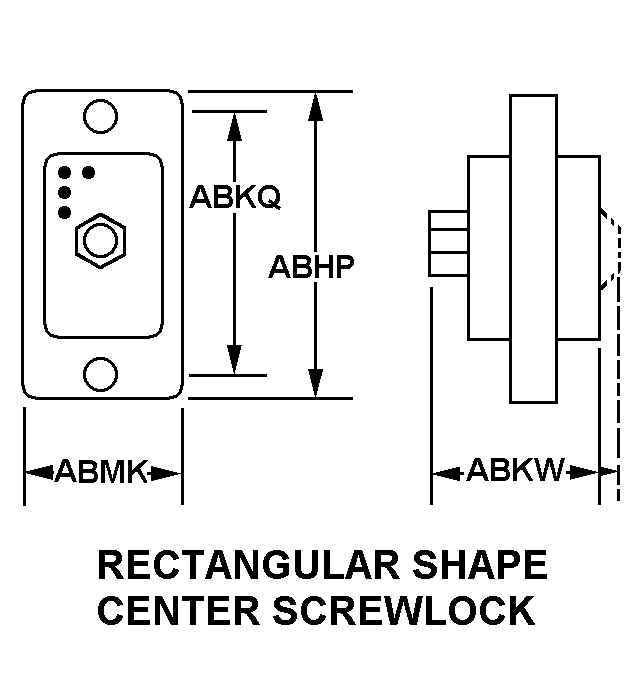

| BODY STYLE | 41G RECTANGULAR SHAPE CENTER SCREWLOCK |
| OVERALL LENGTH | 1.675 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.300 INCHES NOMINAL |
| OVERALL HEIGHT | 1.520 INCHES MAXIMUM |
| OVERALL WIDTH | 0.830 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | POST JACKSOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | POLARIZATION BOSS |
| BOSS TYPE AND LOCATION DESIGNATOR | 2X SOCKET |
| MATING END QUANTITY | 1 |

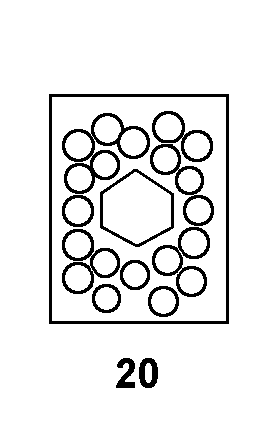

| CONTACT POSITION ARRANGEMENT STYLE | AWBD 20 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 20 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 13.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 TY 1,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-28748 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28748/9 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| III END ITEM IDENTIFICATION | ANSPS52CRADAR |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28748/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28748/09B0X01A |
