NSN 5935-01-202-8385 1947029-40, 2615F, 2615-F
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-202-8385 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1947029-40, 2615F, 2615-F, 5935-01-202-8385, 01-202-8385, 5935012028385, 194702940, 012028385
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 07 MAR 1985 | 01-202-8385 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-01-202-8385
Technical Data | NSN 5935-01-202-8385
Characteristic | Specifications |
---|---|

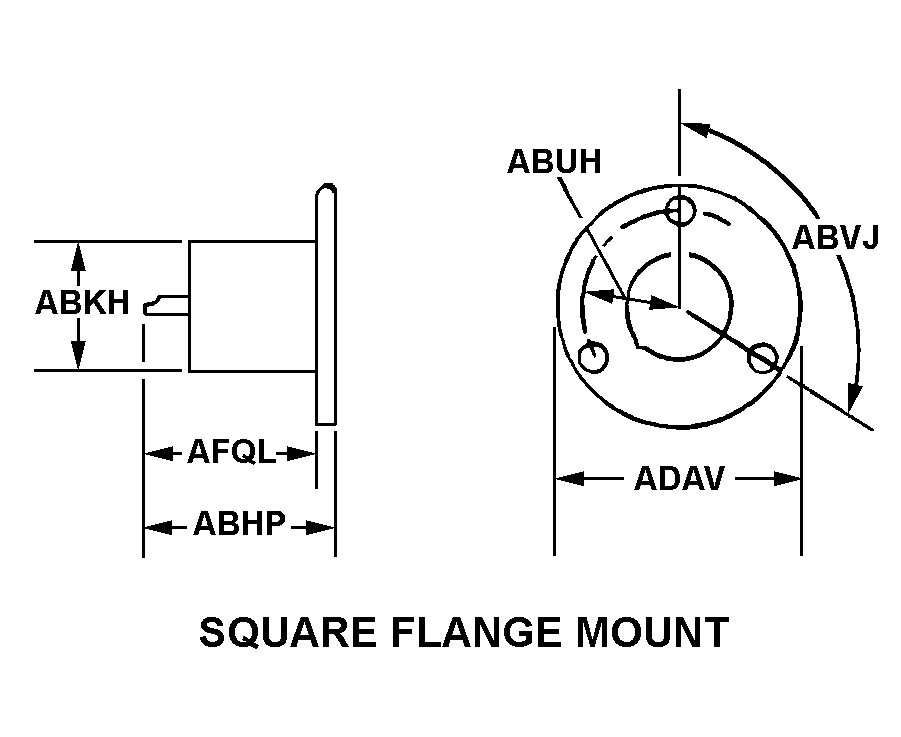

BODY STYLE | 4J SQUARE FLANGE MOUNT |
OVERALL LENGTH | 2.000 INCHES NOMINAL |
BUSHING DIAMETER | 2.062 INCHES NOMINAL |
MOUNTING HOLE CIRCLE RADIUS | 1.250 INCHES NOMINAL |
OVERALL DIAMETER | 2.875 INCHES NOMINAL |
ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 120.0 |
UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
CONNECTOR LOCKING METHOD | CONTACT TWISTLOCK |
MATING END QUANTITY | 1 |
CONTACT POSITION ARRANGEMENT STYLE | ADDT 3 SINGLE MATING END |
INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING |
CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
INCLUDED CONTACT TYPE | CURVED PIN W/INSIDE LIP SINGLE MATING END 1ST CONTACT GROUPING CURVED PIN SINGLE MATING END 2ND CONTACT GROUPING |
CONTACT MAXIMUM CURRENT RATING IN AMPS | 30.0 SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
TERMINAL LOCATION | SIDE SINGLE MATING END ALL CONTACT GROUPINGS |
III END ITEM IDENTIFICATION | 4920-01-111-2981 |
Restrictions/Controls & Freight Information | NSN 5935-01-202-8385
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-202-8385
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
