NSN 5935-01-201-9224 M85049/60-2G24A, M85049602G24A, MIL-C-85049/60
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-201-9224 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: M85049/60-2G24A, M85049602G24A, MIL-C-85049/60, MILC8504960, 5935-01-201-9224, 01-201-9224, 5935012019224, 012019224
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 FEB 1985 | 01-201-9224 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-201-9224
Demand History | NSN 5935-01-201-9224
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-201-9224 | 2017-07-197 | 106 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-201-9224
Related Products | NSN 5935-01-201-9224
Technical Data | NSN 5935-01-201-9224
| Characteristic | Specifications |
|---|---|

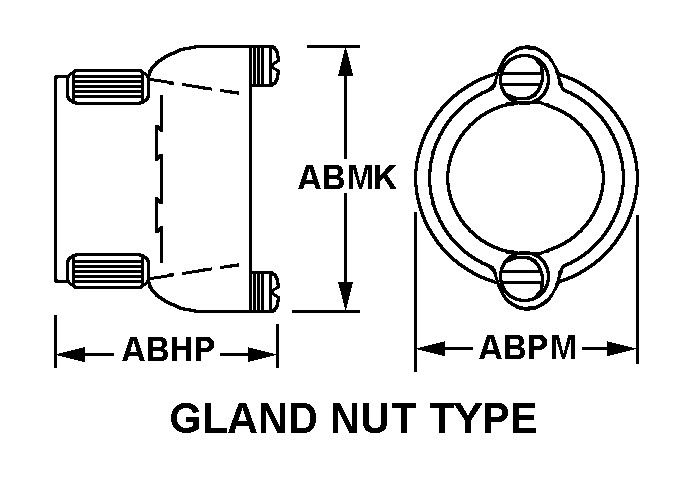

| STYLE DESIGNATOR | 7B GLAND NUT TYPE |
| OVERALL LENGTH | 0.478 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| OVERALL WIDTH | 1.641 INCHES MINIMUM AND 1.686 INCHES MAXIMUM |
| BODY DIAMETER | 1.641 INCHES MINIMUM AND 1.686 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.438 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 1.144 INCHES MINIMUM AND 1.154 INCHES MAXIMUM |
| SIZE DESIGNATION | 24 |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/60 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049/60 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/60-2G24A |
Restrictions/Controls & Freight Information | NSN 5935-01-201-9224
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061200 | CABLE CLAMPS/JOINTS NOI |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
