NSN 5935-01-184-0639 M83723/82G2025N, M8372382G2025N, MIL-C-83723/82

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-184-0639 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M83723/82G2025N, M8372382G2025N, MIL-C-83723/82, MILC8372382, MIL-DTL-83723/82 , MILDTL8372382, 5935-01-184-0639, 01-184-0639, 5935011840639, 011840639

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 JUL 1984	01-184-0639	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

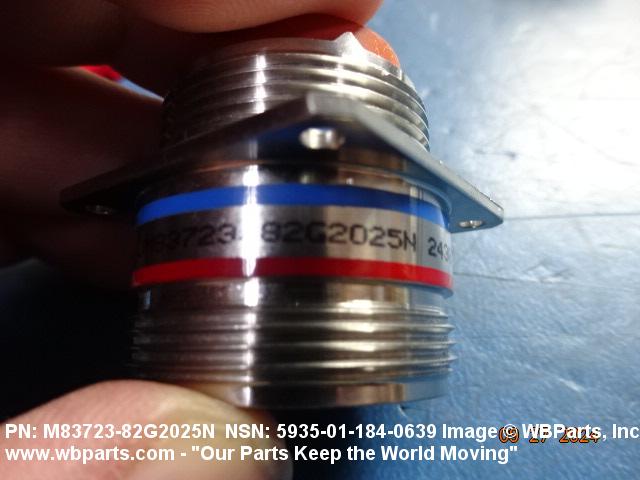

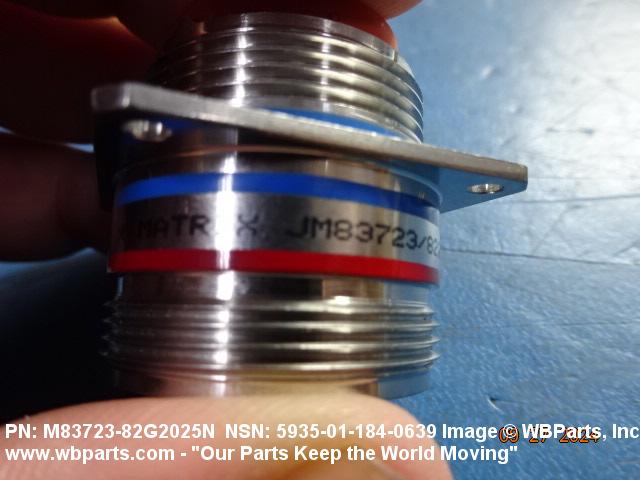

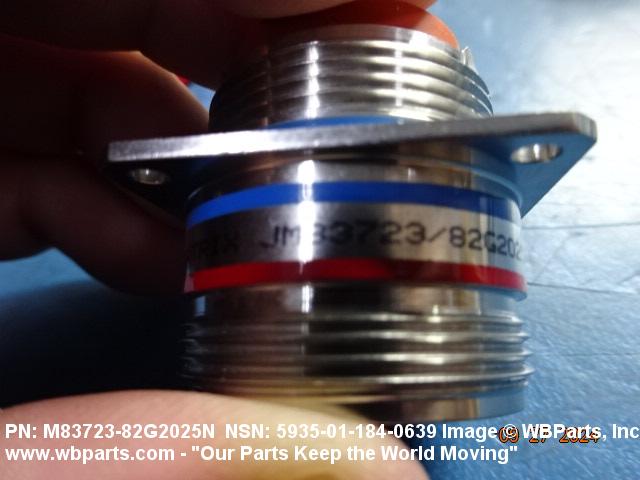

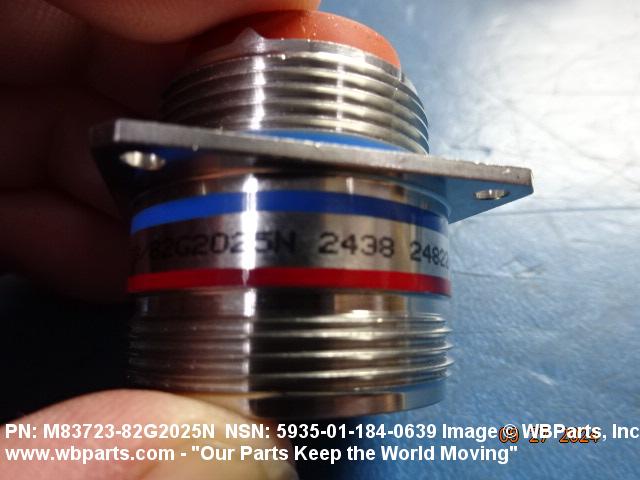

Drawings & Photos | NSN 5935-01-184-0639

Part Number	Request Date	QTY	Origin
5935-01-184-0639	2024-10-296	3	United States
5935-01-184-0639	2024-09-253	1	United States
5935-01-184-0639	2023-10-292	134	DIBBS
5935-01-184-0639	2018-03-88	82	DIBBS
5935-01-184-0639	2017-05-124	69	DIBBS
5935-01-184-0639	2017-03-89	12	DIBBS
5935-01-184-0639	2016-06-175	14	DIBBS
MILC8372382	2014-09-262	1	US
5935-01-184-0639	2009-01-22	70	DIBBS
5935-01-184-0639	2007-08-220	88	DIBBS

Cross Reference | NSN 5935-01-184-0639

Part Number	Cage Code	Manufacturer
M83723/82G2025N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-83723/82	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83723/82	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-184-0639

Compare

Related Products | NSN 5935-01-184-0639

5935-01-184-0640, 5935-01-184-0761, 5935-01-184-0768, 5935-01-184-0769, 5935-01-184-0770

Technical Data | NSN 5935-01-184-0639

Characteristic	Specifications
BODY STYLE	3G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH	1.430 INCHES MAXIMUM
OVERALL HEIGHT	1.703 INCHES NOMINAL
OVERALL WIDTH	1.703 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	1.375 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	1.375 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.708 INCHES MINIMUM AND 0.728 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER	0.116 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF AND UNEF
NOMINAL THREAD SIZE	1.312 INCHES AND 1.312 INCHES
THREAD CLASS	2A AND 2A
THREAD QUANTITY PER INCH	18 AND 18
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	STEEL
SHELL SURFACE TREATMENT	PASSIVATE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	BBAA 19 NUMBER 20 SINGLE MATING END
INSERT MATERIAL	PLASTIC EPOXY SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END 1ST CONTACT GROUPING 19 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 1,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF
TEST DATA DOCUMENT	81349-MIL-C-83723 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-83723/82 GOVERNMENT

Restrictions/Controls & Freight Information | NSN 5935-01-184-0639

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-184-0639

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
