NSN 5935-01-181-8112 M83733/3RB071, M837333RB071, MIL-C-83733/3
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-181-8112 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M83733/3RB071, M837333RB071, MIL-C-83733/3, MILC837333, 5935-01-181-8112, 01-181-8112, 5935011818112, 011818112
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUN 1984 | 01-181-8112 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-181-8112
Demand History | NSN 5935-01-181-8112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-181-8112 | 2014-08-233 | 7 | DIBBS |
| M837333RB071 | 2006-05-151 | 5 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-181-8112
Related Products | NSN 5935-01-181-8112
Technical Data | NSN 5935-01-181-8112
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.350 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.146 INCHES MINIMUM AND 1.170 INCHES MAXIMUM |
| OVERALL WIDTH | 4.300 INCHES MINIMUM AND 4.330 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.558 INCHES MINIMUM AND 0.566 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.870 INCHES MINIMUM AND 3.880 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.519 INCHES MINIMUM AND 0.534 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| THREADED DEVICE TYPE | MOUNTING STUD |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074 GRADE B,CL 3 OR 4 MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | GUIDE PIN/SOCKET AND MATING END |
| ROUND GUIDE TYPE AND LOCATION | SOCKET LEFT-HAND TOP AND SOCKET RIGHT-HAND BOTTOM |
| MATING END QUANTITY | 1 |

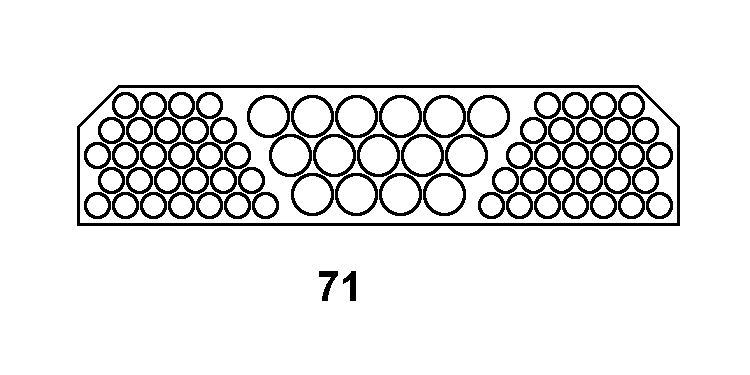

| CONTACT POSITION ARRANGEMENT STYLE | DAAB 71 SINGLE MATING END |
