NSN 5935-01-128-3657 SCD51990513001, SCD51990513-001, ST5M1426A001

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-128-3657 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: SCD51990513001, SCD51990513-001, ST5M1426A001, 10131490 , 31-33819-11, 3260AS1285, 3260AS1426, 3381911, 33819-11, 58410904, 5841-0904, 5935-01-128-3657, 01-128-3657, 5935011283657, 011283657, 313381911

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	20 MAR 1982	01-128-3657	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

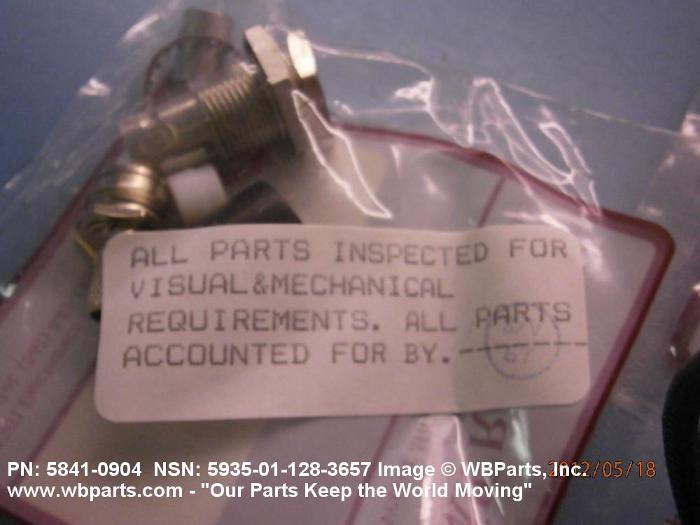

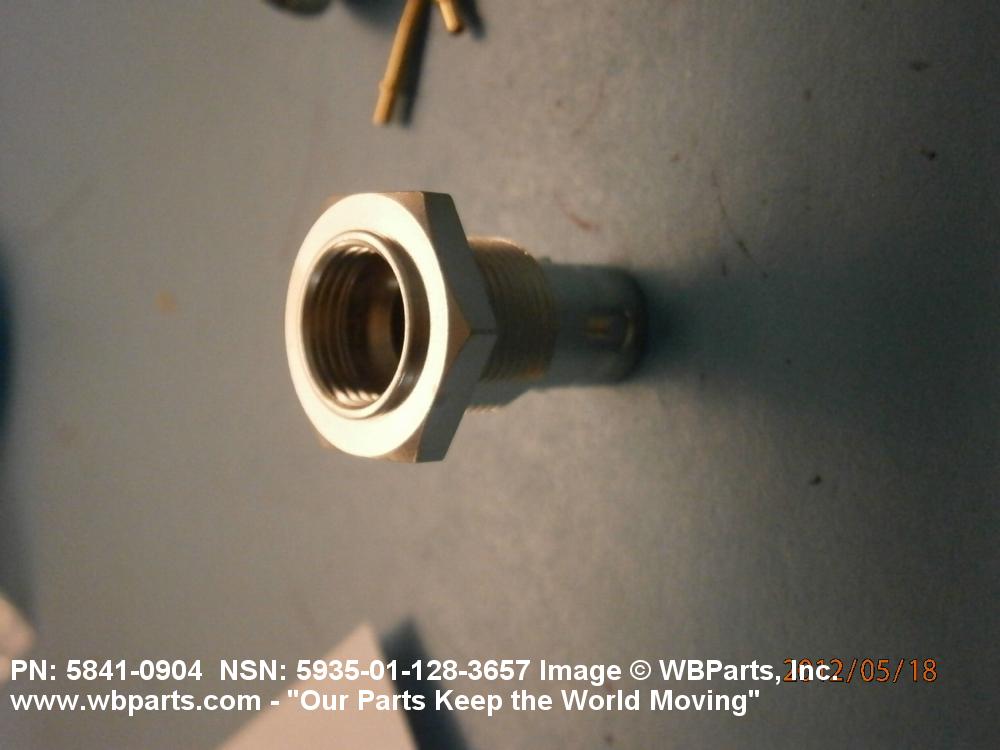

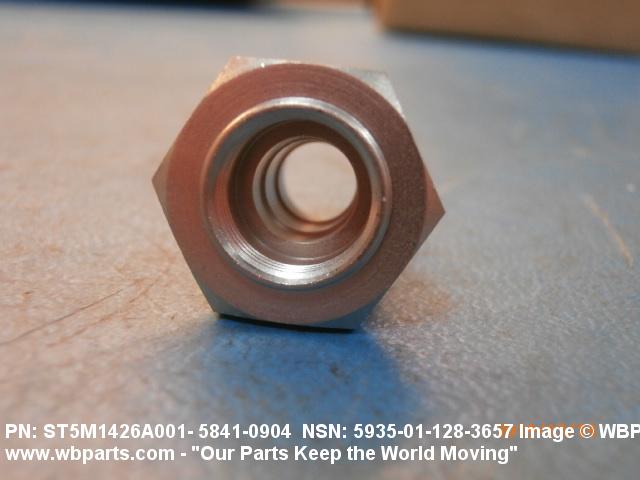

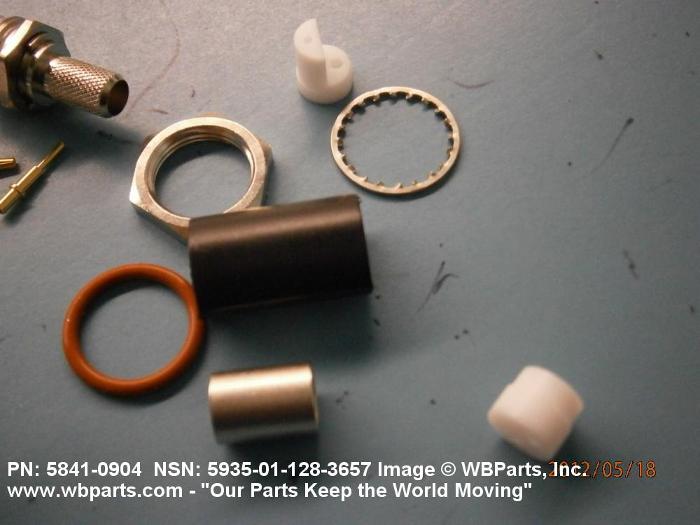

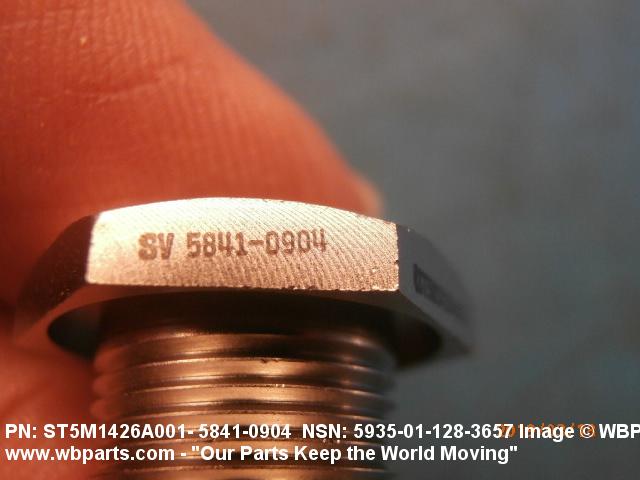

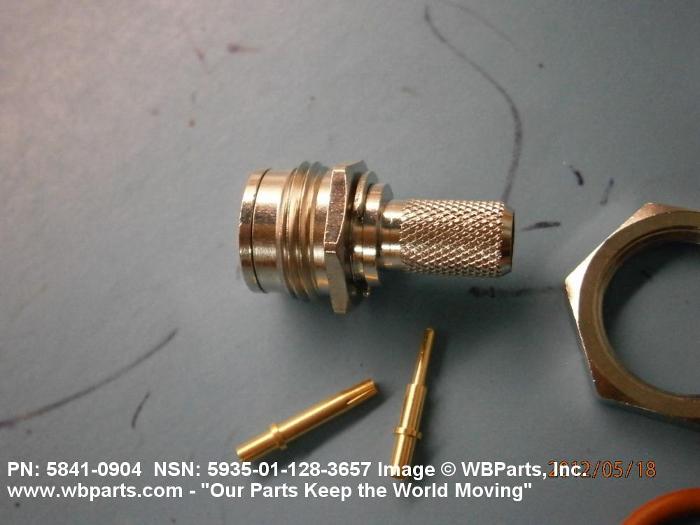

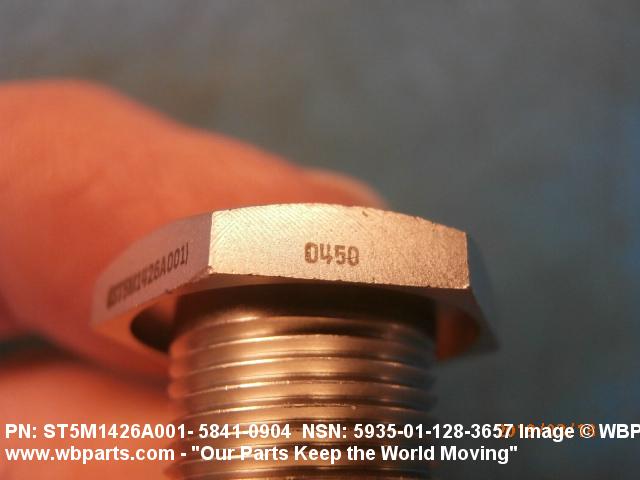

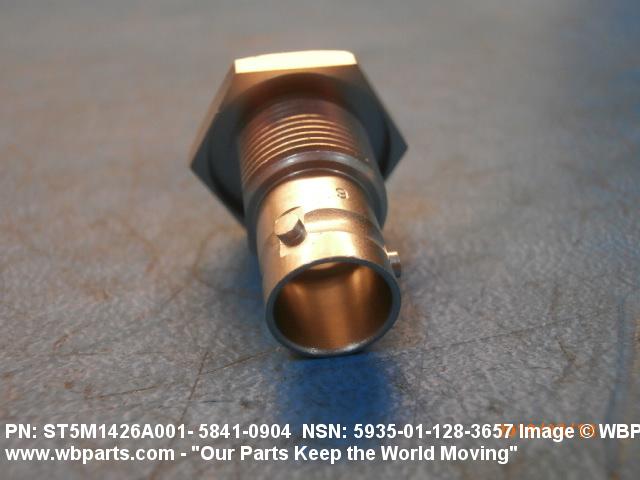

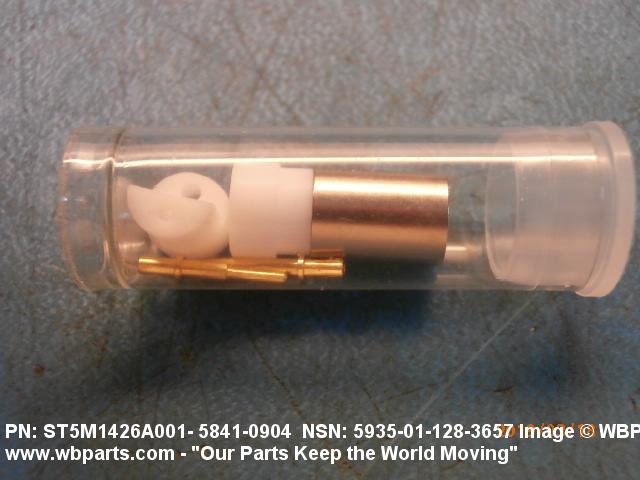

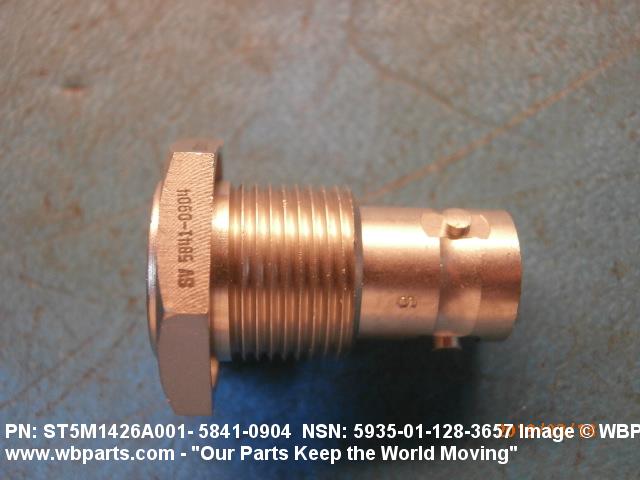

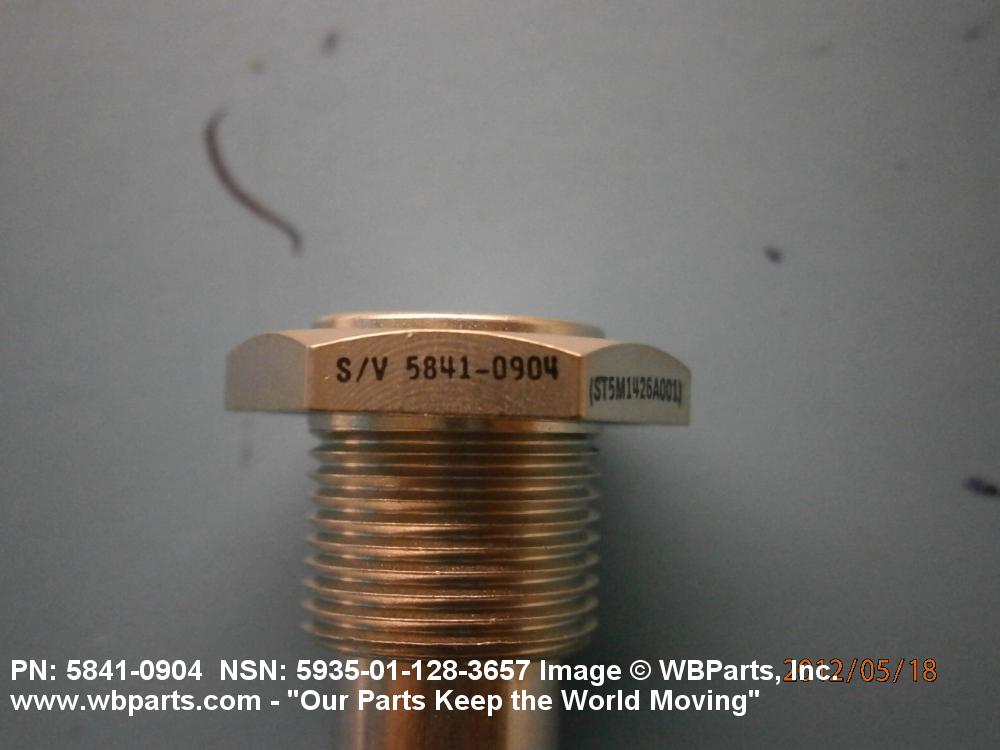

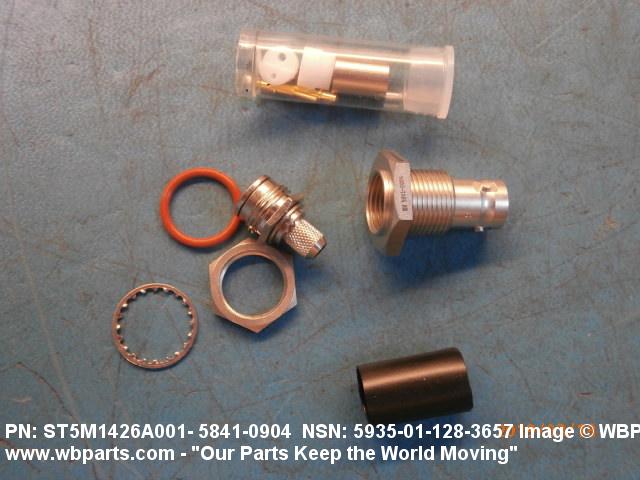

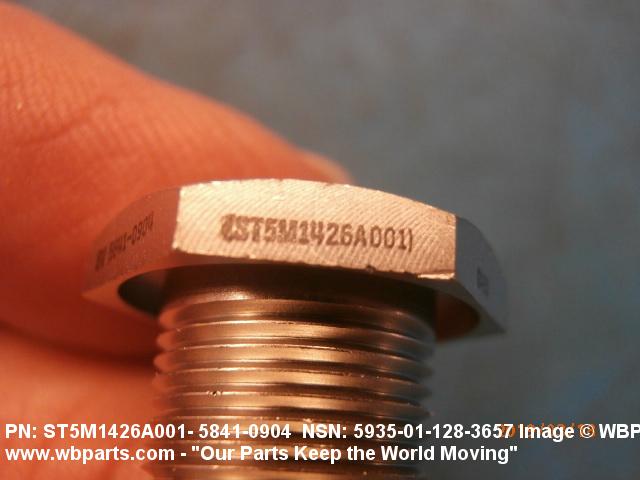

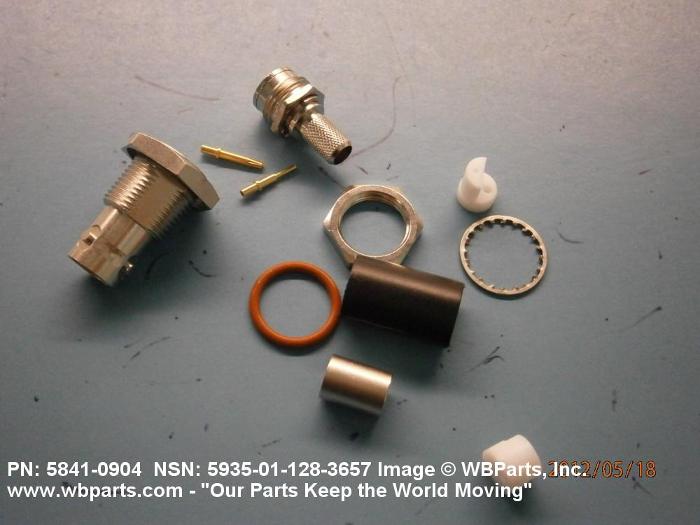

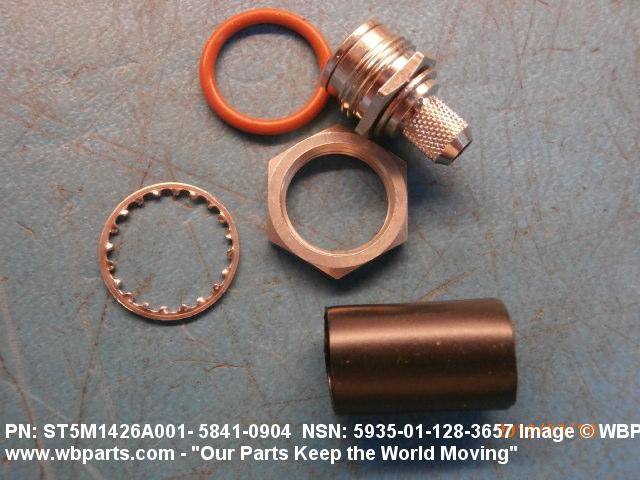

Drawings & Photos | NSN 5935-01-128-3657

Part Number	Request Date	QTY	Origin
31-33819-11	2024-05-151	271	DIBBS
5841-0904	2024-05-151	271	DIBBS
ST5M1426A001	2024-05-151	271	DIBBS
31-33819-11	2024-04-102	262	DIBBS
5841-0904	2024-04-102	262	DIBBS
ST5M1426A001	2024-04-102	262	DIBBS
31-33819-11	2024-01-11	138	DIBBS
5841-0904	2024-01-11	138	DIBBS
ST5M1426A001	2024-01-11	138	DIBBS
31-33819-11	2023-10-285	62	DIBBS
5841-0904	2023-10-285	62	DIBBS
ST5M1426A001	2023-10-285	62	DIBBS
31-33819-11	2023-07-200	227	DIBBS
5841-0904	2023-07-200	227	DIBBS
ST5M1426A001	2023-07-200	227	DIBBS
31-33819-11	2023-06-180	175	DIBBS
5841-0904	2023-06-180	175	DIBBS
ST5M1426A001	2023-06-180	175	DIBBS
31-33819-11	2023-06-170	38	DIBBS
5841-0904	2023-06-170	38	DIBBS
ST5M1426A001	2023-06-170	38	DIBBS
31-33819-11	2023-03-83	175	DIBBS
5841-0904	2023-03-83	175	DIBBS
ST5M1426A001	2023-03-83	175	DIBBS
31-33819-11	2023-03-80	16	DIBBS
5841-0904	2023-03-80	16	DIBBS
ST5M1426A001	2023-03-80	16	DIBBS
31-33819-11	2023-01-26	175	DIBBS
5841-0904	2023-01-26	175	DIBBS
ST5M1426A001	2023-01-26	175	DIBBS
31-33819-11	2023-01-06	175	DIBBS
5841-0904	2023-01-06	175	DIBBS
ST5M1426A001	2023-01-06	175	DIBBS
31-33819-11	2022-12-364	175	DIBBS
5841-0904	2022-12-364	175	DIBBS
ST5M1426A001	2022-12-364	175	DIBBS
5935-01-128-3657	2022-12-362	175	United States
31-33819-11	2022-12-361	175	DIBBS
5841-0904	2022-12-361	175	DIBBS
ST5M1426A001	2022-12-361	175	DIBBS
31-33819-11	2022-12-349	175	DIBBS
5841-0904	2022-12-349	175	DIBBS
ST5M1426A001	2022-12-349	175	DIBBS
31-33819-11	2022-11-322	22	DIBBS
5841-0904	2022-11-322	22	DIBBS
ST5M1426A001	2022-11-322	22	DIBBS
31-33819-11	2022-11-311	22	DIBBS
5841-0904	2022-11-311	22	DIBBS
ST5M1426A001	2022-11-311	22	DIBBS
31-33819-11	2022-09-272	22	DIBBS
5841-0904	2022-09-272	22	DIBBS
ST5M1426A001	2022-09-272	22	DIBBS
31-33819-11	2022-09-261	22	DIBBS
5841-0904	2022-09-261	22	DIBBS
ST5M1426A001	2022-09-261	22	DIBBS
31-33819-11	2022-08-237	100	DIBBS
5841-0904	2022-08-237	100	DIBBS
ST5M1426A001	2022-08-237	100	DIBBS
31-33819-11	2022-07-206	23	DIBBS
31-33819-11	2022-07-206	44	DIBBS
5841-0904	2022-07-206	23	DIBBS
5841-0904	2022-07-206	44	DIBBS
ST5M1426A001	2022-07-206	23	DIBBS
ST5M1426A001	2022-07-206	44	DIBBS
31-33819-11	2022-07-186	44	DIBBS
31-33819-11	2022-07-186	23	DIBBS
5841-0904	2022-07-186	44	DIBBS
5841-0904	2022-07-186	23	DIBBS
ST5M1426A001	2022-07-186	44	DIBBS
ST5M1426A001	2022-07-186	23	DIBBS
31-33819-11	2022-06-172	307	DIBBS
5841-0904	2022-06-172	307	DIBBS
ST5M1426A001	2022-06-172	307	DIBBS
31-33819-11	2022-06-156	307	DIBBS
5841-0904	2022-06-156	307	DIBBS
ST5M1426A001	2022-06-156	307	DIBBS
31-33819-11	2021-06-168	139	DIBBS
5841-0904	2021-06-168	139	DIBBS
ST5M1426A001	2021-06-168	139	DIBBS
31-33819-11	2020-06-180	67	DIBBS
5841-0904	2020-06-180	67	DIBBS
ST5M1426A001	2020-06-180	67	DIBBS
31-33819-11	2019-12-335	209	DIBBS
5841-0904	2019-12-335	209	DIBBS
ST5M1426A001	2019-12-335	209	DIBBS
31-33819-11	2019-11-317	62	DIBBS
5841-0904	2019-11-317	62	DIBBS
ST5M1426A001	2019-11-317	62	DIBBS
5935-01-128-3657	2019-02-44	1	United Kingdom
5935-01-128-3657	2016-03-75	1	DIBBS-RFPs
5935-01-128-3657	2015-10-293	264	DIBBS
5935-01-128-3657	2015-07-210	228	DIBBS
5935-01-128-3657	2015-06-158	162	DIBBS
5935-01-128-3657	2015-03-88	141	DIBBS
ST5M1426A001	2012-06-159	1	UK
5935-01-128-3657	2012-03-67	2	United Kingdom
5935-01-128-3657	2011-05-138	9	DIBBS
5935-01-128-3657	2011-05-132	49	DIBBS
5935-01-128-3657	2011-03-83	36	DIBBS
5935-01-128-3657	2011-01-29	71	United States
313381911	2011-01-27	20	United States
5935-01-128-3657	2008-11-316	96	DIBBS
5935-01-128-3657	2008-10-283	62	DIBBS
5935-01-128-3657	2008-03-70	61	DIBBS
5935-01-128-3657	2008-01-07	76	DIBBS
5935-01-128-3657	2007-06-180	58	DIBBS
5935-01-128-3657	2007-05-134	56	DIBBS
5935-01-128-3657	2007-03-67	81	DIBBS
5935-01-128-3657	2006-07-201	25	DIBBS

Cross Reference | NSN 5935-01-128-3657

Part Number	Cage Code	Manufacturer
31-33819-11	74868	AMPHENOL CORPORATION
3260AS1285	30003	NAVAL AIR SYSTEMS COMMAND
3260AS1426	30003	NAVAL AIR SYSTEMS COMMAND
33819-11	60674	MICROWAVE DEVICES INC
33819-11	74868	AMPHENOL CORPORATION
33819-11	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
5841-0904	95077	SV MICROWAVE, INC DIV SV MICROWAVE
SCD51990513-001	0C9D4	HARRIS TECHNICAL SERVICES CORP
ST5M1426A001	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-128-3657

Compare

Related Products | NSN 5935-01-128-3657

5935-01-128-3658, 5935-01-128-3659, 5935-01-128-3660, 5935-01-128-3661, 5935-01-128-3662

Technical Data | NSN 5935-01-128-3657

Characteristic	Specifications
BODY STYLE	11L STRAIGHT SHAPE, EXTERNAL COUPLING

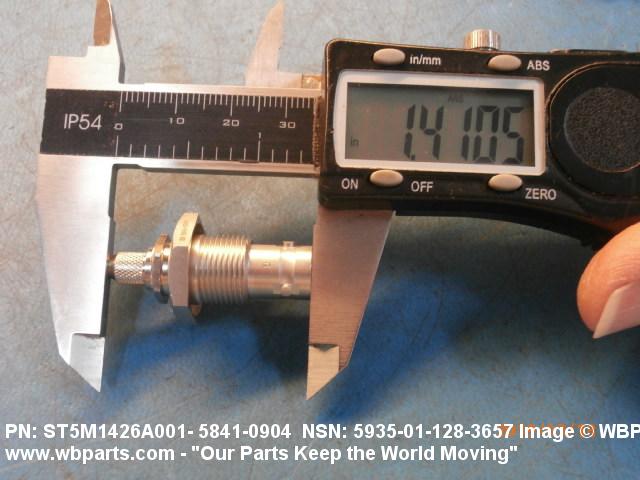

OVERALL LENGTH	1.560 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.800 INCHES NOMINAL
BUSHING ACCOMMODATION HOLE SHAPE	ROUND
CONNECTOR LOCKING METHOD	BAYONET PIN
THREADED DEVICE TYPE	MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF

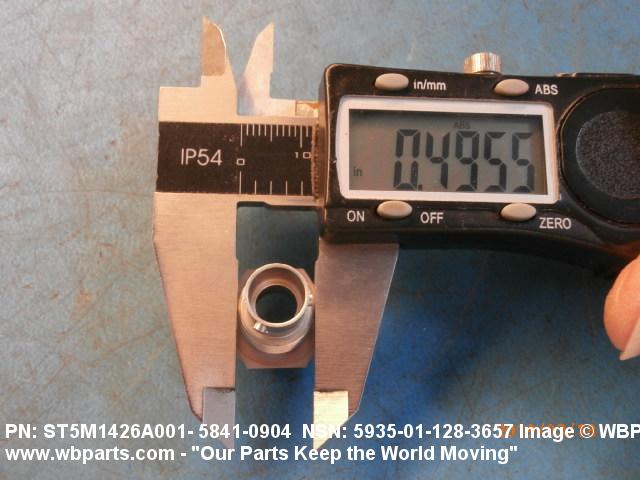

NOMINAL THREAD SIZE	0.500 INCHES
THREAD CLASS	2A

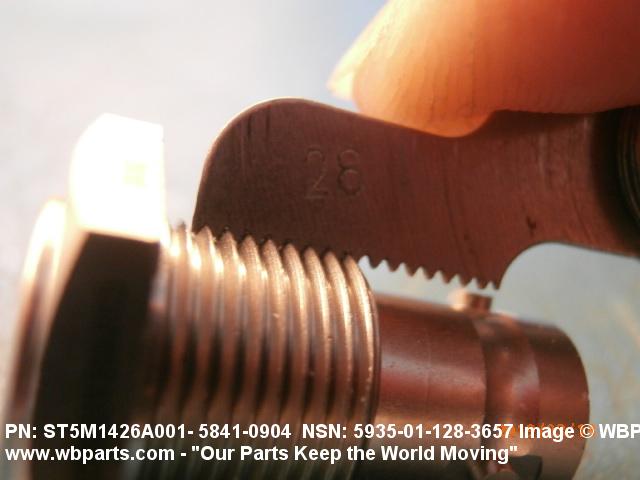

THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0 AND 120.0 AND 240.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ACCZ TWIN-X SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END 1ST CONTACT GROUPING COAXIAL SOCKET SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	1500.0 SINGLE MATING END ALL CONTACT GROUPINGS
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	SHOCK PROOF AND VIBRATION PROOF
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-01-128-3657

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-128-3657

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
