NSN 5935-01-108-3778 240-3599-00-0605, 01-108-3778, 2403599000605
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-108-3778 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 240-3599-00-0605, 5935-01-108-3778, 01-108-3778, 2403599000605, 5935011083778, 011083778
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-108-3778 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-108-3778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-108-3778
Technical Data | NSN 5935-01-108-3778
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 4002A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 40 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 69B TOP MOUNT |
| OVERALL LENGTH | 2.583 INCHES NOMINAL |
| TERMINAL LENGTH | 0.620 INCHES NOMINAL |
| OVERALL HEIGHT | 0.890 INCHES NOMINAL |
| OVERALL WIDTH | 1.270 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 40 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |

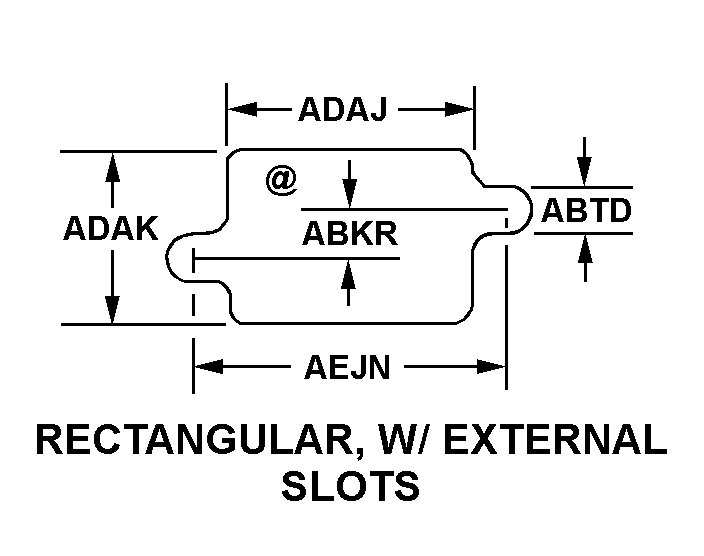

| MOUNTING HOLE STYLE | 25D RECTANGLAR, W/EXTERNAL SLOTS |
| MOUNTING SLOT WIDTH | 0.093 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | ANY ACCEPTABLE |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.865 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.900 INCHES NOMINAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
