NSN 5935-01-107-8811 MS3116F1210P, MS3116F12-10P, MS3116J1210P

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-107-8811 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3116F1210P, MS3116F12-10P, MS3116J1210P, MS3116J12-10P, MS3116P1210P, MS3116P12-10P, MS3126F1210P, MS3126F12-10P, MS3126F121OP, MS3126F-12-1OP, MS3476A1210P, MS3476A12-10P, MS3476L1210P, MS3476L12-10P, MS3476L1210PN, MS3476L12-10PN, MS3476W1210P, MS3476W12-10P, MS3476W1210RW, MS3476W12-10RW, M83723/14R1210N, M83723/14W1210, M8372314R1210N, M8372314W1210, MB16A1210PN, MB16A-1210PN, MB16W1210P, MB16W1210PN, ASC1239946, SLPT06F1210P, SLPT06F12-10P, X215421210P, X21-542-12-10P, LPT06E1210P, LPT-06E-12-10P, PT06A1210PSR, PT06CE1210PSR, PT06E1210P014, PT06E1210P313, PT06E12-10P313, PT06SE1210PSA, PT06SE12-10PSA, PT06SE1210PSR, PT06SE12-10PSR, PT06SP1210P, PT06SP12-10P, MILC26482, MIL-C-26482, 7124307010P, 71-243070-10P, 738110-145, 80801135, 808011-35, 810BA0388, 0N0641046, 0N064104-6, 1679396, 16793-96, 26186882, 2618688-2, 2630W10P013, 324026, 33448524, 334485-24, 3590304050, 359-0304-050, 3630318239, 3630-3182-39, 575R516H05, 5935-01-107-8811, 01-107-8811, 5935011078811, 011078811, 738110145

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 FEB 1981	01-107-8811	01938 ( CONNECTOR, PLUG, ELECTRICAL )

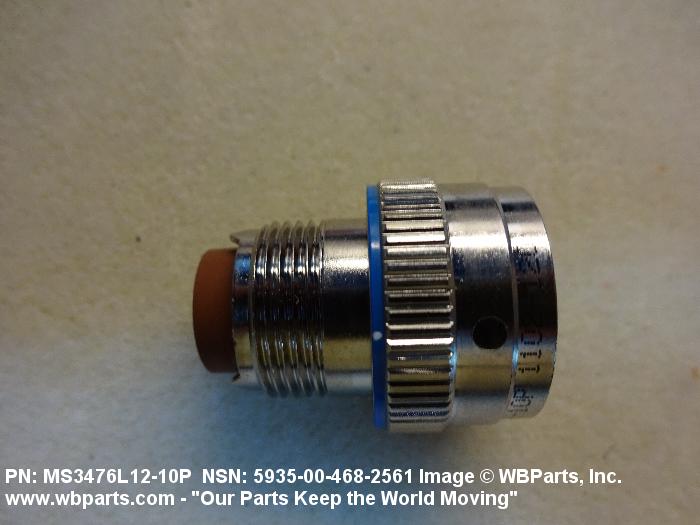

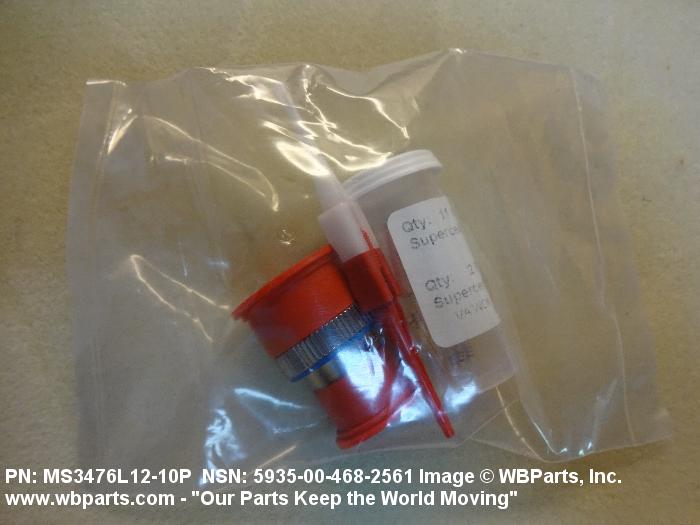

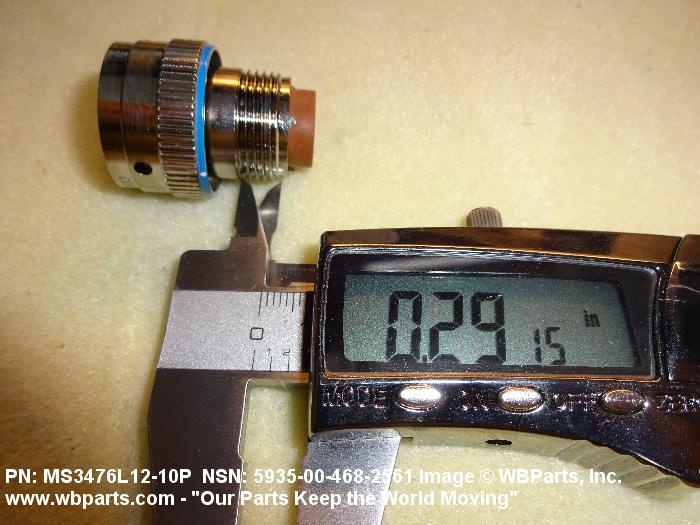

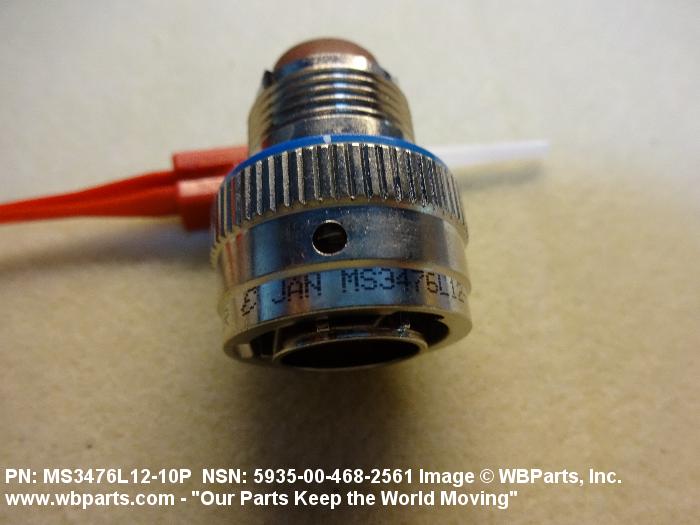

Drawings & Photos | NSN 5935-01-107-8811

Part Number	Request Date	QTY	Origin
5935-01-107-8811	2025-04-112	4	United States
MS3476W1210P	2025-03-63	2	Japan
5935-01-107-8811	2024-09-255	397	DIBBS
5935-01-107-8811	2023-12-354	207	DIBBS
5935-01-107-8811	2023-11-334	53	DIBBS
5935-01-107-8811	2023-11-317	2280	DIBBS
5935-01-107-8811	2023-09-264	1168	DIBBS
5935-01-107-8811	2023-07-185	367	DIBBS
5935-01-107-8811	2023-03-80	376	DIBBS
5935-01-107-8811	2023-01-03	335	DIBBS
5935-01-107-8811	2022-10-300	361	DIBBS
5935-01-107-8811	2022-10-289	361	DIBBS
5935-01-107-8811	2022-10-284	1720	DIBBS
5935-01-107-8811	2022-09-273	1720	US
5935-01-107-8811	2022-09-269	1720	DIBBS
MS3126F1210P	2022-09-263	1	KR
5935-01-107-8811	2022-08-223	521	DIBBS
5935-01-107-8811	2022-06-172	1607	DIBBS
5935-01-107-8811	2022-06-156	1607	DIBBS
5935-01-107-8811	2021-07-186	28	DIBBS
5935-01-107-8811	2021-06-167	1720	DIBBS
5935-01-107-8811	2021-06-152	1720	DIBBS
5935-01-107-8811	2021-03-70	1	US
5935-01-107-8811	2021-02-56	5	US
5935-01-107-8811	2020-09-248	46	US
5935-01-107-8811	2020-06-170	226	DIBBS
5935-01-107-8811	2020-06-167	1605	DIBBS
MS3116F1210P	2020-03-86	1	United States
MS3476W1210P	2017-09-264	1	United States
MS3476L1210P	2017-02-59	4	Pakistan
MS3476L1210P	2017-02-58	4	Pakistan
MS3116J1210P	2016-11-307	1	US
MS3476L1210P	2014-09-269	1	US
5935-01-107-8811	2014-06-160	36	Taiwan
MS3116J1210P	2014-04-118	5	US
MS3476W1210P	2012-07-205	3	US
MS3126F1210P	2012-07-191	50	United States
MS3476L12-10PN	2012-02-45	2	United States
MS3126F12-10P	2011-11-315	30
MS3126F1210P	2011-08-221	33	United States
MILC26482	2011-01-27	4	Portugal
5935-01-107-8811	2010-08-228	674	DIBBS
5935-01-107-8811	2010-07-190	800	DIBBS
5935-01-107-8811	2010-06-161	609	DIBBS
5935-01-107-8811	2010-04-112	583	DIBBS
5935-01-107-8811	2010-02-53	707	DIBBS
5935-01-107-8811	2009-06-161	1935	DIBBS
5935-01-107-8811	2009-04-98	395	DIBBS
5935-01-107-8811	2009-03-84	450	DIBBS
5935-01-107-8811	2009-03-69	425	DIBBS
5935-01-107-8811	2009-01-14	125	DIBBS
5935-01-107-8811	2007-10-290	1	Sri Lanka
5935-01-107-8811	2007-06-153	2	Taiwan

Cross Reference | NSN 5935-01-107-8811

Part Number	Cage Code	Manufacturer
0N064104-6	98230	NATIONAL SECURITY AGENCY
16793-96	96214	RAYTHEON COMPANY DBA RAYTHEON
2618688-2	80064	NAVAL SHIP SYSTEMS COMMAND
2630W10P013	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
324026	97564	POLLAK CORP TRANSPORTATION ELECTRONICS DIV
334485-24	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
359-0304-050	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
3630-3182-39	54274	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
575R516H05	79500	WESTINGHOUSE ELECTRIC CORP
575R516H05	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
71-243070-10P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
738110-145	35351	GE AVIATION SYSTEMS LLC
808011-35	96214	RAYTHEON COMPANY DBA RAYTHEON
810BA0388	A0199	OTO MELARA SPA
ASC1239946	Z4779	ASC PTY LTD
LPT-06E-12-10P	K1316	DEUTSCH UK MILITARY PRODUCTS DIVISION
M83723/14R1210N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/14W1210	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB16A-1210PN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W1210P	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W1210PN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3116F12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116J12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116P12-10P	59976	AERO-ELECTRIC CONNECTOR, INC.
MS3116P12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126F-12-1OP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3126F12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476A12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L12-10PN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W12-10P	64327	FEDERAL PRISON INDUSTRIES INC DBA UNICOR
MS3476W12-10P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W12-10RW	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT06A-12-10P(SR)	05063	AVNET INC HAMILTON/AVNET ELECTRONICS DIV
PT06A-12-10P(SR)	20441	POWELL ELECTRONICS INC.
PT06CE-12-10P(SR	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06E-12-10P(014)	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06E12-10P313	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06SE12-10PSA	06840	BENDIX CORP THE
PT06SE12-10PSR	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06SP12-10P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
SLPT06F12-10P	K1316	DEUTSCH UK MILITARY PRODUCTS DIVISION
X21-542-12-10P	S3712	BAE SYSTEMS BOFORS AB
X21-542-12-10P	S3715	BOFORS AB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-107-8811

Compare

Related Products | NSN 5935-01-107-8811

5935-01-107-8813, 5935-01-107-8814, 5935-01-107-8815, 5935-01-107-8816, 5935-01-107-8817

Technical Data | NSN 5935-01-107-8811

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING

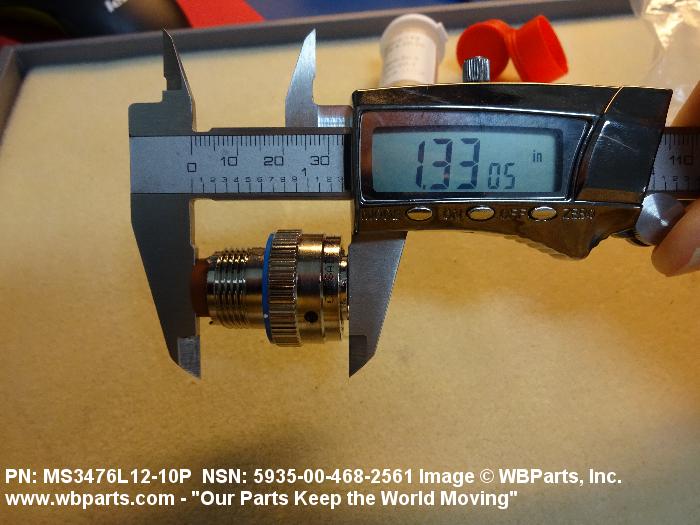

OVERALL LENGTH	1.230 INCHES MAXIMUM

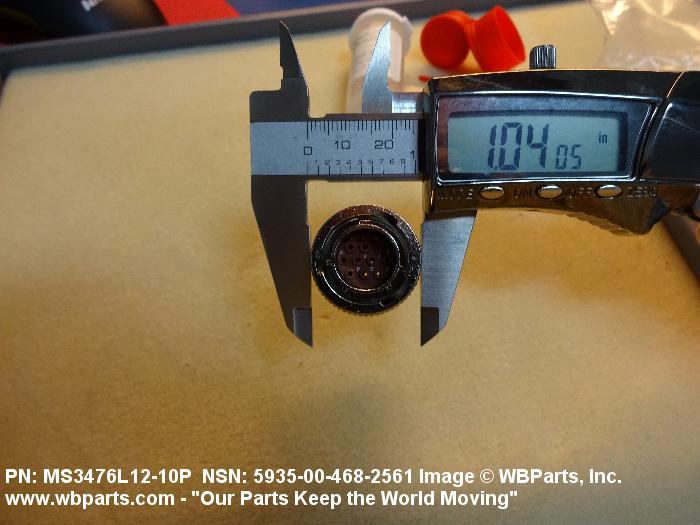

OVERALL DIAMETER	1.043 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET PIN
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.750 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

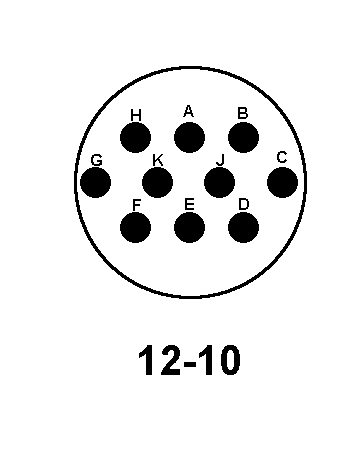

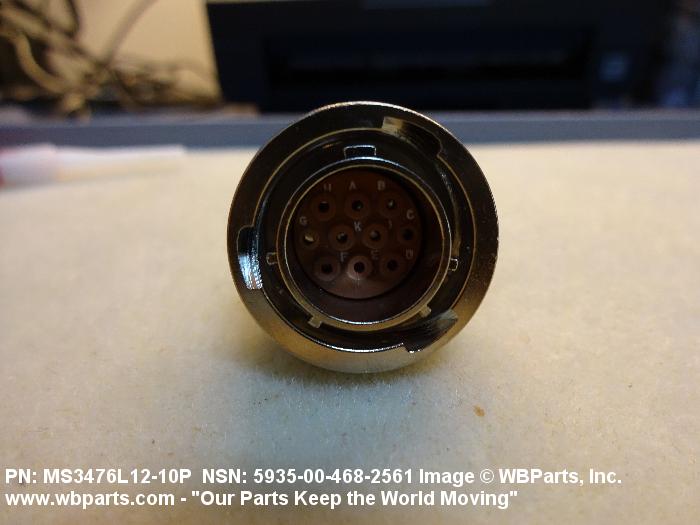

CONTACT POSITION ARRANGEMENT STYLE	ALAC 12-10 SINGLE MATING END
INCLUDED CONTACT QUANTITY	10 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING

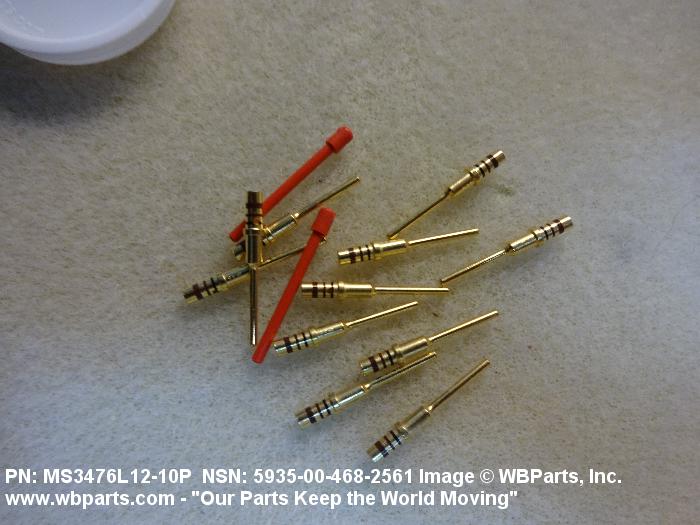

INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 1,CL 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-184-7189,P/N M85049/52-1-12W FOR THE STRAIGHT STYLE,OR NSN 5935-01-181-6652,P/N M85049/51-1-12W FOR THE RIGHT ANGLE STYLE
TEST DATA DOCUMENT	81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3476 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-26482

Restrictions/Controls & Freight Information | NSN 5935-01-107-8811

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-107-8811

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
