NSN 5935-01-107-8816 1356AS1200, 15687, 21071
Product Details | CONNECTOR ADAPTER
5935-01-107-8816 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: 1356AS1200, 15687, 21071, 31822243, 3182-2243, 3182224300, 3182-2243-00, 499-031-013, 7004, 5935-01-107-8816, 01-107-8816, 5935011078816, 011078816, 499031013
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 FEB 1981 | 01-107-8816 | 15091 ( ADAPTER, CONNECTOR ) |
Drawings & Photos | NSN 5935-01-107-8816
Demand History | NSN 5935-01-107-8816
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-107-8816 | 2012-08-215 | 35 | US |
| 5935-01-107-8816 | 2011-05-138 | 42 | US |
| 5935-01-107-8816 | 2011-02-38 | 1 | Canada |
Cross Reference | NSN 5935-01-107-8816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1356AS1200 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 15687 | 26805 | TYCO ELECTRONICS CORP |
| 21071 | 26805 | TYCO ELECTRONICS CORP |
| 3182-2243 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 3182-2243-00 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 499-031-013 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 7004 | 57793 | UNITED MICROWAVE PRODUCTS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-107-8816
Related Products | NSN 5935-01-107-8816
Technical Data | NSN 5935-01-107-8816
| Characteristic | Specifications |
|---|---|

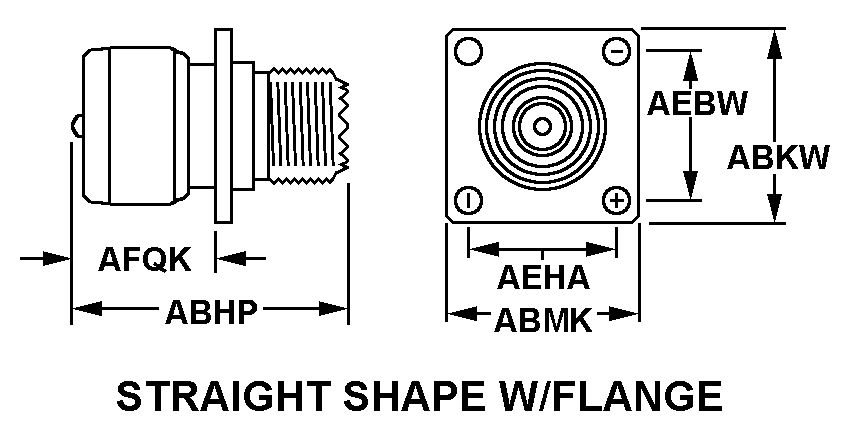

| BODY STYLE | 8N STRAIGHT SHAPE W/FLANGE |
