NSN 5935-01-105-8915 M83723/88H1212N, M8372388H1212N, AEB004437
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-105-8915 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M83723/88H1212N, M8372388H1212N, AEB004437, MIL-C-83723/88, MILC8372388, 5935-01-105-8915, 01-105-8915, 5935011058915, 011058915
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JAN 1981 | 01-105-8915 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

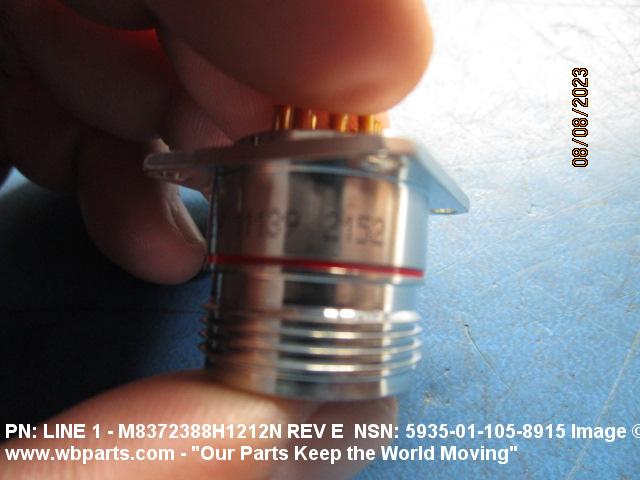

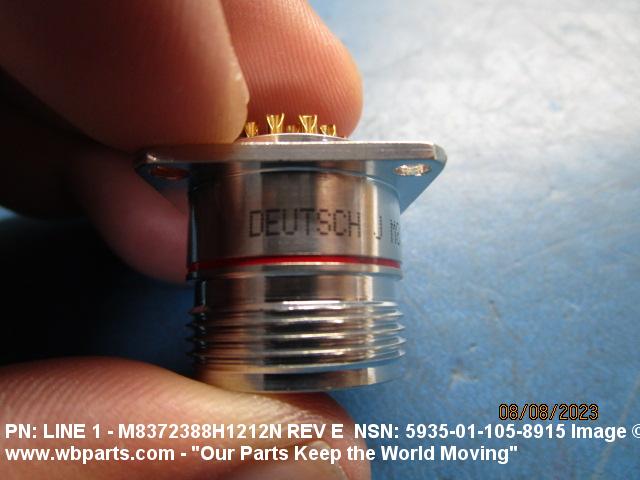

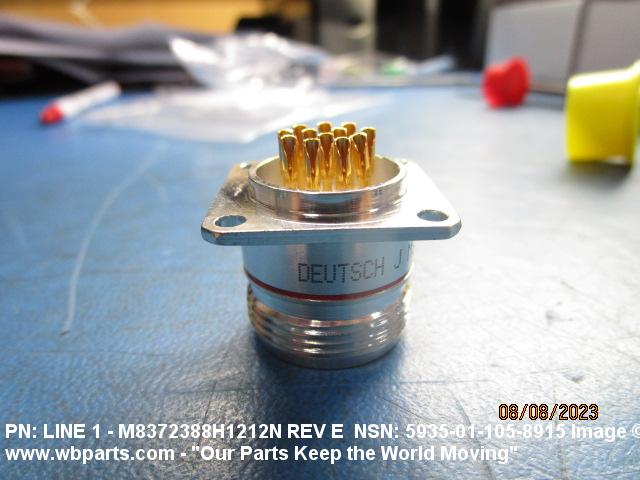

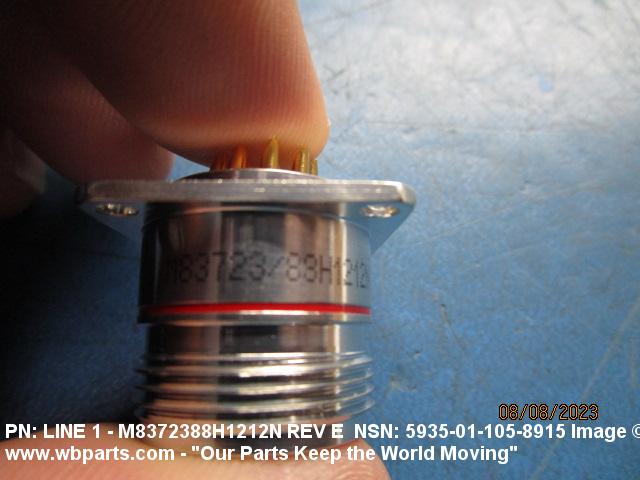

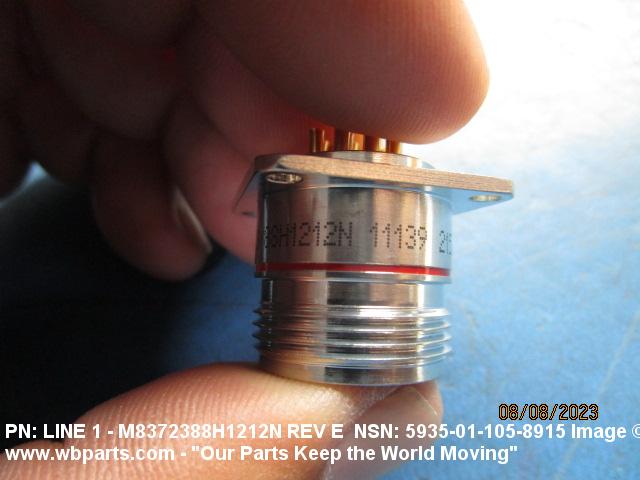

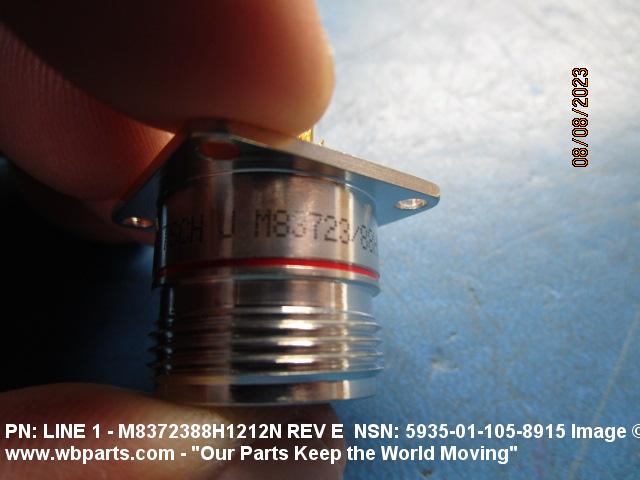

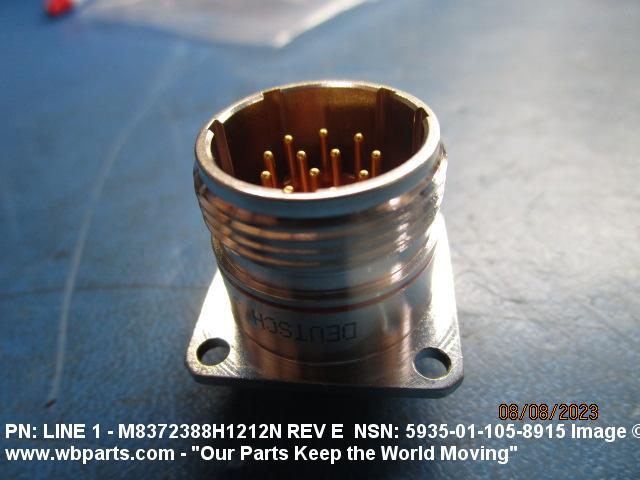

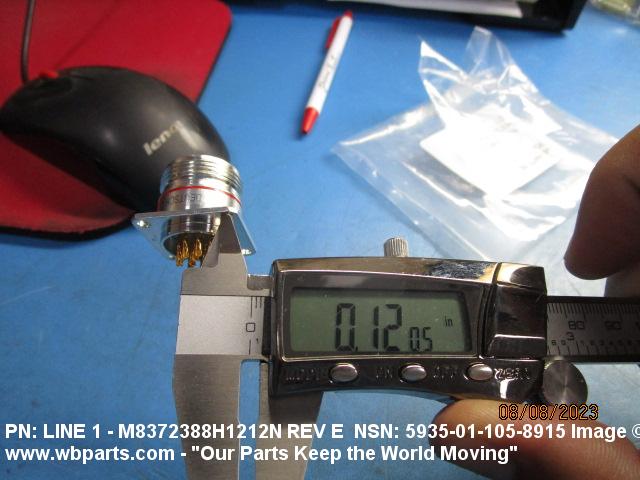

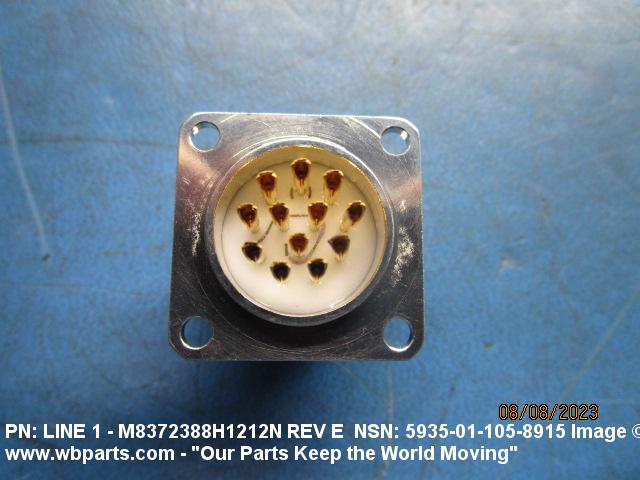

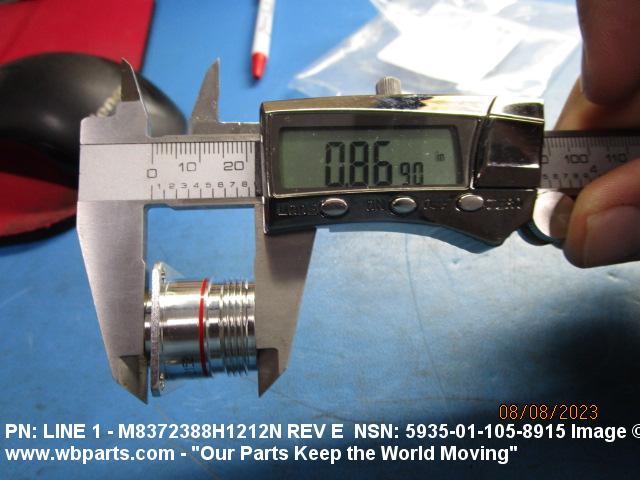

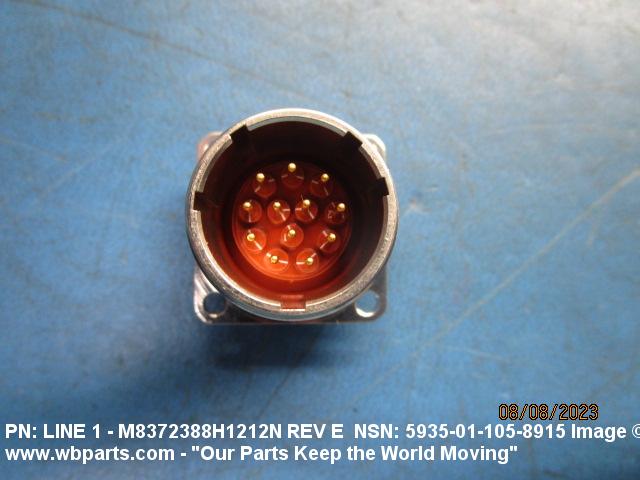

Drawings & Photos | NSN 5935-01-105-8915
Demand History | NSN 5935-01-105-8915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M8372388H1212N | 2023-07-209 | 1 | United States |
| 5935-01-105-8915 | 2023-02-37 | 1 | United States |
| AEB004437 | 2023-02-33 | 1 | United States |
| 5935-01-105-8915 | 2020-08-225 | 95 | DIBBS |
| 5935-01-105-8915 | 2020-08-223 | 95 | DIBBS |
| 5935-01-105-8915 | 2018-09-270 | 201 | DIBBS |
| 5935-01-105-8915 | 2017-07-207 | 397 | DIBBS |
| 5935-01-105-8915 | 2016-09-259 | 301 | DIBBS |
| 5935-01-105-8915 | 2015-03-72 | 156 | DIBBS |
| 5935-01-105-8915 | 2014-11-330 | 196 | DIBBS |
| 5935-01-105-8915 | 2014-10-287 | 72 | DIBBS |
| 5935-01-105-8915 | 2012-08-228 | 92 | DIBBS |
| 5935-01-105-8915 | 2012-03-61 | 102 | DIBBS |
| 5935-01-105-8915 | 2011-01-07 | 100 | DIBBS |
| 5935-01-105-8915 | 2010-04-120 | 94 | DIBBS |
| 5935-01-105-8915 | 2009-11-314 | 81 | DIBBS |
| 5935-01-105-8915 | 2009-04-98 | 65 | DIBBS |
| 5935-01-105-8915 | 2009-03-82 | 12 | DIBBS |
| 5935-01-105-8915 | 2008-09-270 | 55 | DIBBS |
| M8372388H1212N | 2007-11-311 | 1 | United Kingdom |
| M8372388H1212N | 2007-10-276 | 2 | United States |
| 5935-01-105-8915 | 2007-02-52 | 120 | DIBBS |
| 5935-01-105-8915 | 2006-05-138 | 60 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-105-8915
Technical Data | NSN 5935-01-105-8915
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 0.904 INCHES MAXIMUM |

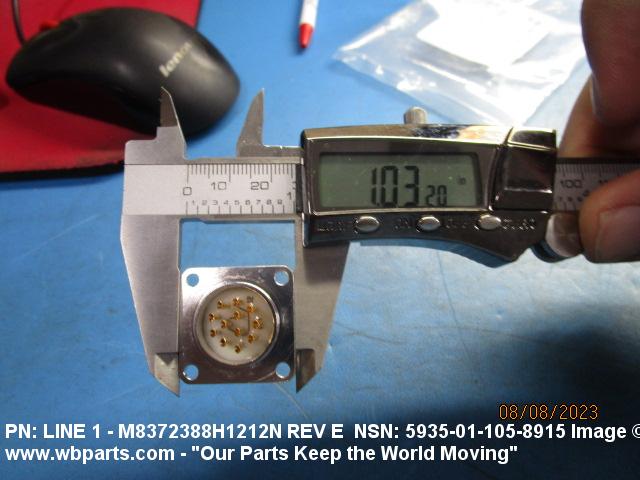

| OVERALL HEIGHT | 1.031 INCHES NOMINAL |

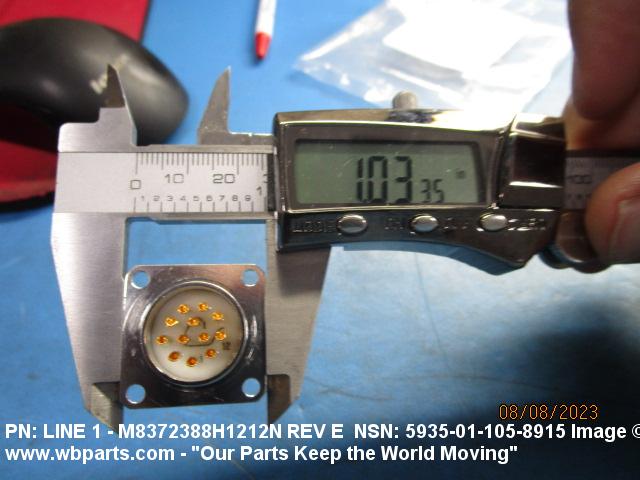

| OVERALL WIDTH | 1.031 INCHES NOMINAL |

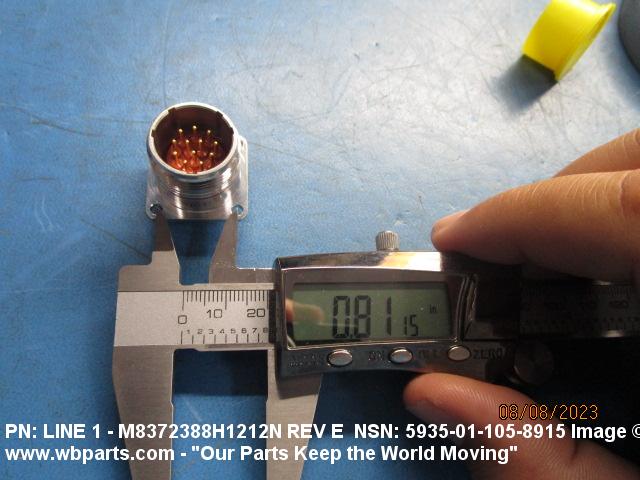

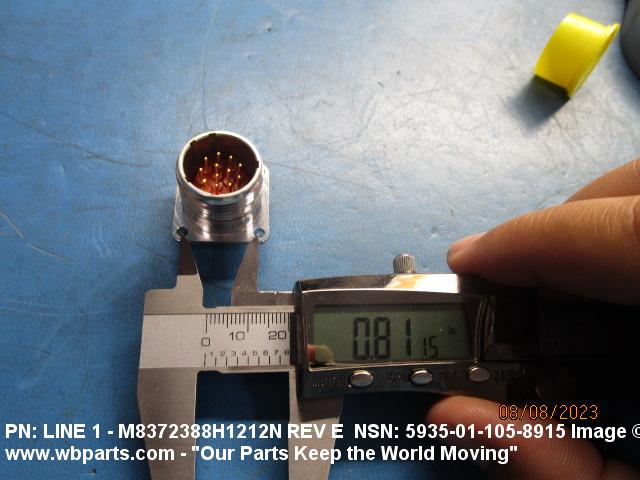

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.812 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.812 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.708 INCHES MINIMUM AND 0.728 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.116 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | TIN |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ANAE 12-12 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 12 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 1,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-83723 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-83723/88 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.012 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT | MIL-C-83723/88 |
Restrictions/Controls & Freight Information | NSN 5935-01-105-8915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
