NSN 5935-01-105-4929 MS3114E1626S, MS3114E16-26S, MS3124E1626S

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-105-4929 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3114E1626S, MS3114E16-26S, MS3124E1626S, MS3124E16-26S, MS3124P1626S, MS3124P16-26S, MS3474L1626SN, MS3474L16-26SN, MS3474W1626S, MS3474W16-26S, MS3474W1626SN, MS3474W16-26SN, MB14A1626SN, MB14A-1626SN, MILC26482, MIL-C-26482, L16TE26S4NA, PT07A1626S005, 10068024, 2607.540, 2607540, 3716690000, 371-6690-000, 76618416, 766184-16 , 810BA3021 , 5935-01-105-4929, 01-105-4929, 5935011054929, 011054929

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	23 DEC 1980	01-105-4929	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

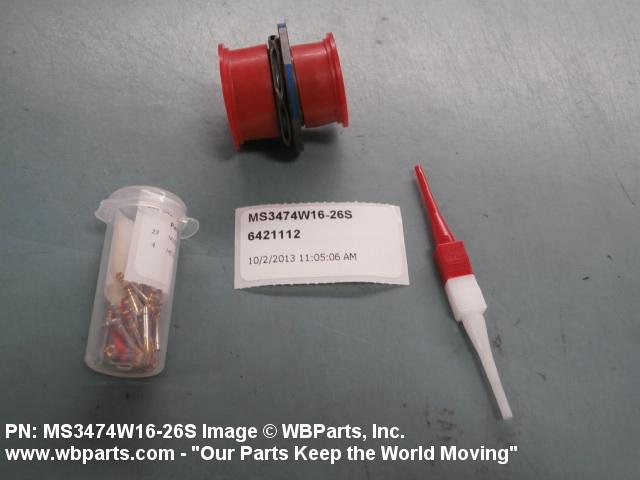

Drawings & Photos | NSN 5935-01-105-4929

Part Number	Request Date	QTY	Origin
5935-01-105-4929	2020-02-52	10	TR
5935-01-105-4929	2018-08-242	735	DIBBS
10068024	2016-07-195	1	United States
MS3474W1626S	2013-12-345	15	United States
MS3474W1626S	2013-10-280	2	United States
5935-01-105-4929	2011-12-349	187	DIBBS
5935-01-105-4929	2011-07-195	308	DIBBS
5935-01-105-4929	2011-02-33	116	DIBBS
MILC26482	2011-01-27	4	Portugal
5935-01-105-4929	2011-01-06	251	DIBBS
5935-01-105-4929	2009-07-191	24	DIBBS
5935-01-105-4929	2008-11-323	357	DIBBS
5935-01-105-4929	2008-09-262	179	DIBBS
5935-01-105-4929	2008-09-247	689	DIBBS
5935-01-105-4929	2008-08-232	90	DIBBS
5935-01-105-4929	2008-07-197	73	DIBBS
5935-01-105-4929	2008-07-190	213	DIBBS

Cross Reference | NSN 5935-01-105-4929

Part Number	Cage Code	Manufacturer
2607.540	A3460	GE AVIO SRL
371-6690-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
766184-16	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
810BA3021	A0199	OTO MELARA SPA
L16TE26S4NA	09922	SOURIAU USA, INC.
MB14A-1626SN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3114E16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3124E16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3124P16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3474L16-26SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3474W16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3474W16-26SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT07A-16-26S(005)	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-105-4929

Compare

Related Products | NSN 5935-01-105-4929

5935-01-105-4930, 5935-01-105-4931, 5935-01-105-4932, 5935-01-105-4933, 5935-01-105-4934

Technical Data | NSN 5935-01-105-4929

Characteristic	Specifications
BODY STYLE	10G STRAIGHT SHAPE EXTERNAL COUPLING
OVERALL LENGTH	1.405 INCHES MAXIMUM
OVERALL DIAMETER	1.610 INCHES MINIMUM AND 1.641 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.658 INCHES MINIMUM AND 0.707 INCHES MAXIMUM
MOUNTING FACILITY THICKNESS	0.062 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
BUSHING ACCOMMODATION HOLE SHAPE	ROUND W/FLAT
CONNECTOR LOCKING METHOD	BAYONET PIN
THREADED DEVICE TYPE	BACK SHELL AND MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.000 INCHES AND 1.125 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	20 AND 18
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-591,A380 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	NICKEL
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	BCAA 16-26 SINGLE MATING END
INCLUDED CONTACT QUANTITY	26 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 1,CLASS 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-171-1966,P/N M85049/52-1-16W FOR THE STRAIGHT

Restrictions/Controls & Freight Information | NSN 5935-01-105-4929

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-105-4929

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
