NSN 5935-01-097-5889 01-097-5889, 010975889
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-097-5889 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-01-097-5889, 01-097-5889, 5935010975889, 010975889
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-097-5889 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-097-5889
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-097-5889
Technical Data | NSN 5935-01-097-5889
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7G STRAIGHT SHAPE THREADED |
| OVERALL LENGTH | 1.631 INCHES MINIMUM AND 1.652 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.500 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.329 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.094 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | DOUBLE STUB AND UN |
| NOMINAL THREAD SIZE | 2.500 INCHES AND 2.625 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 10 AND 16 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | OXIDE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 E-516 MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

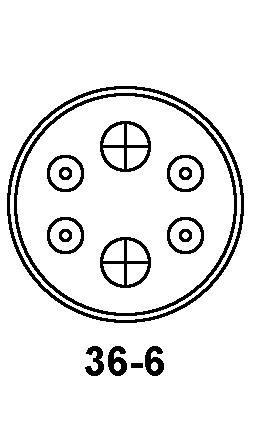

| CONTACT POSITION ARRANGEMENT STYLE | AGAU 36-6 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 4 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 245.0 SINGLE MATING END 1ST CONTACT GROUPING 135.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 TY 1,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND |
Restrictions/Controls & Freight Information | NSN 5935-01-097-5889
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
