NSN 5935-01-078-6783 M24308/19-6, M24308196, MIL-C-24308/19
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-078-6783 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M24308/19-6, M24308196, MIL-C-24308/19, MILC2430819, 5935-01-078-6783, 01-078-6783, 5935010786783, 010786783
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUN 1979 | 01-078-6783 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

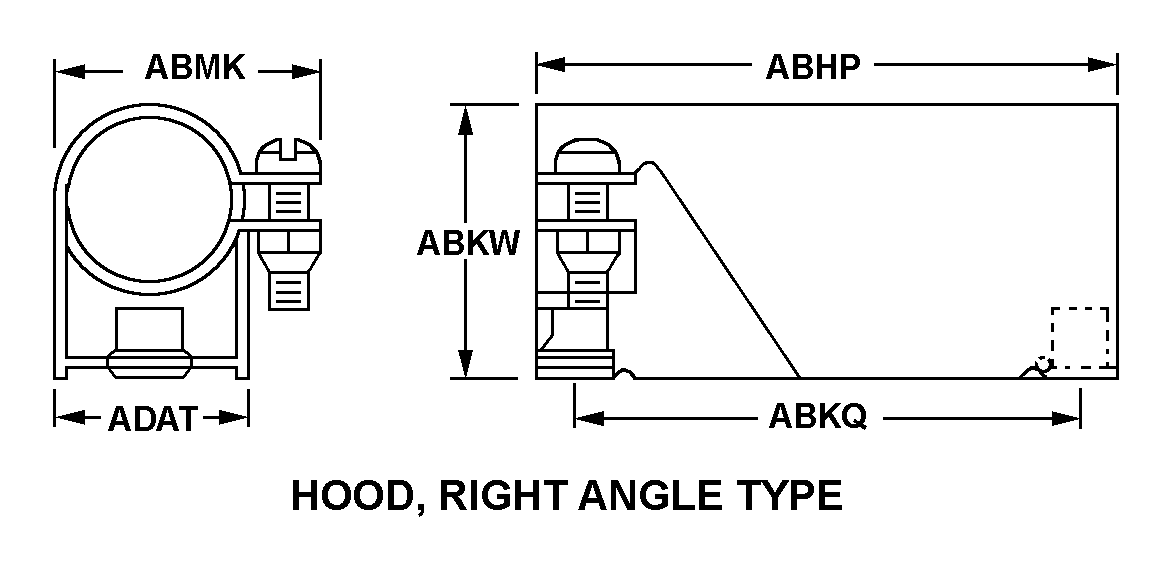

Drawings & Photos | NSN 5935-01-078-6783
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-078-6783
Related Products | NSN 5935-01-078-6783
Technical Data | NSN 5935-01-078-6783
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 23G HOOD, RIGHT ANGLE TYPE |
| OVERALL LENGTH | 1.188 INCHES MINIMUM AND 1.218 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.979 INCHES MINIMUM AND 0.989 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.688 INCHES MINIMUM AND 0.748 INCHES MAXIMUM |
| OVERALL WIDTH | 0.689 INCHES MINIMUM AND 0.809 INCHES MAXIMUM |
| BODY WIDTH | 0.407 INCHES MINIMUM AND 0.467 INCHES MAXIMUM |
| MATERIAL | BRASS |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | ANY ACCEPTABLE |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.407 INCHES MINIMUM AND 0.467 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-C-24308 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24308/19 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24308/19 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24308/19-6 |
