NSN 5935-01-069-9477 MS903358, MS90335-8, CS010

Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-069-9477 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Part Alternates: MS903358, MS90335-8, CS010, CS0-10, MILDTL32385, MIL-DTL-32385 , MIL-DTL-32385/6 , MILDTL323856, MILP7788, MIL-P-7788, 5935-01-069-9477, 01-069-9477, 5935010699477, 010699477

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 DEC 1978	01-069-9477	28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )

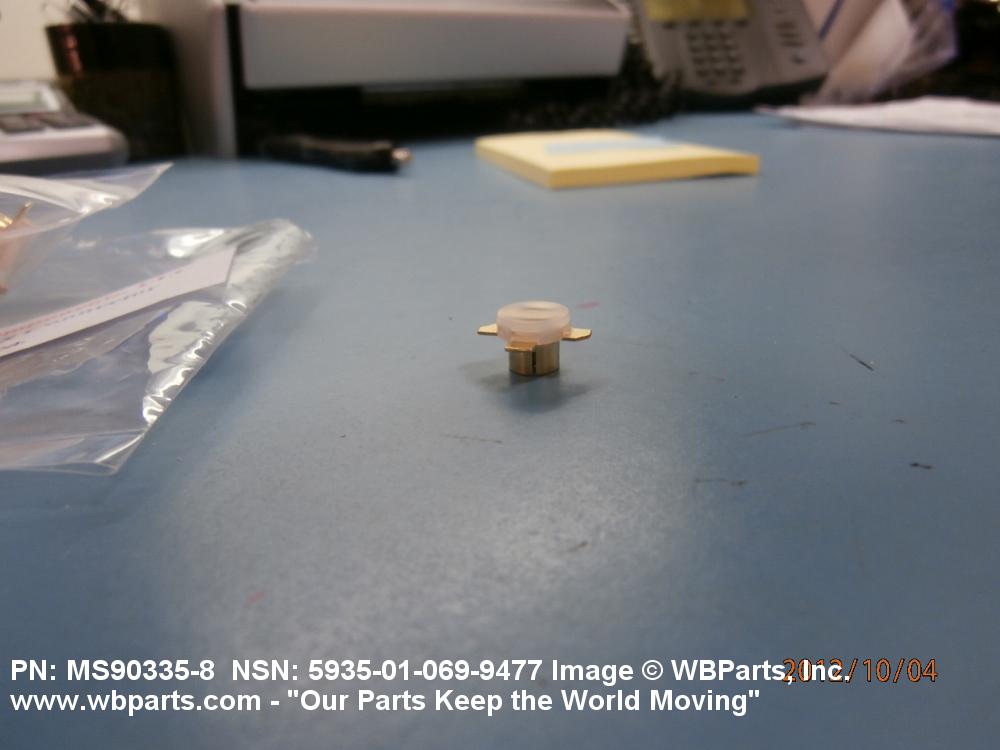

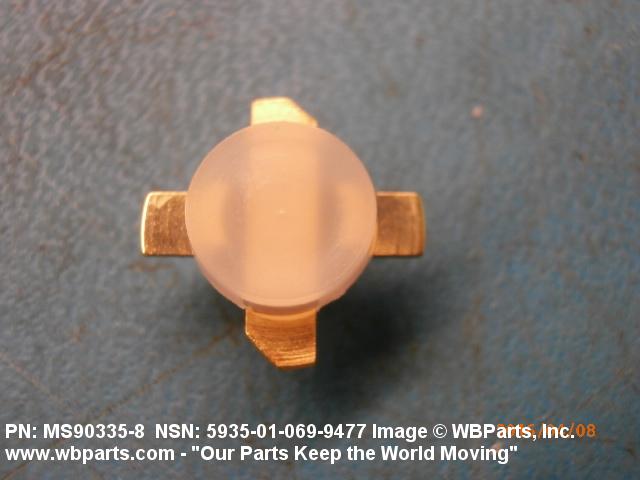

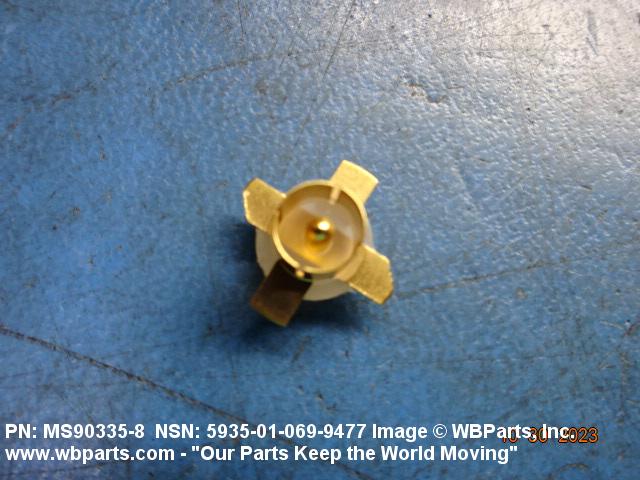

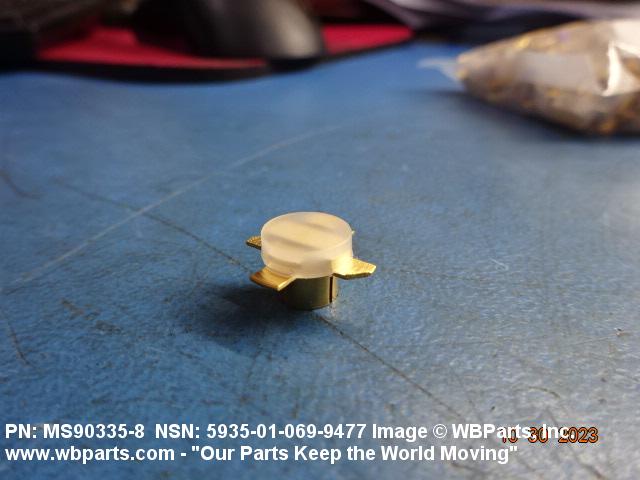

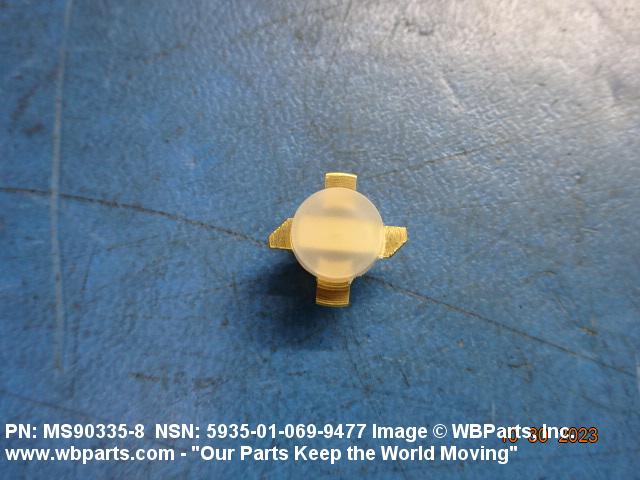

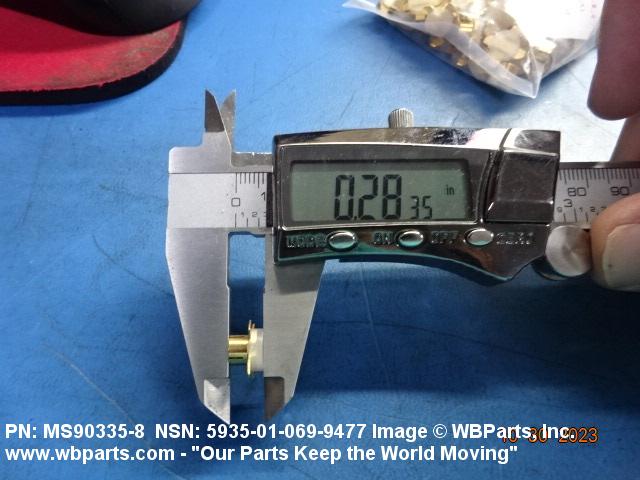

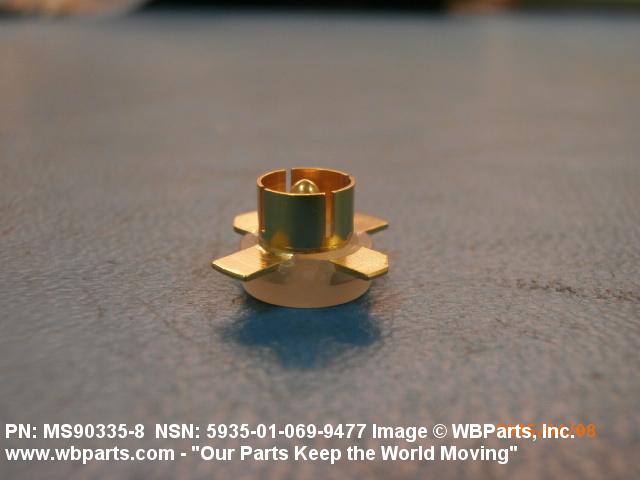

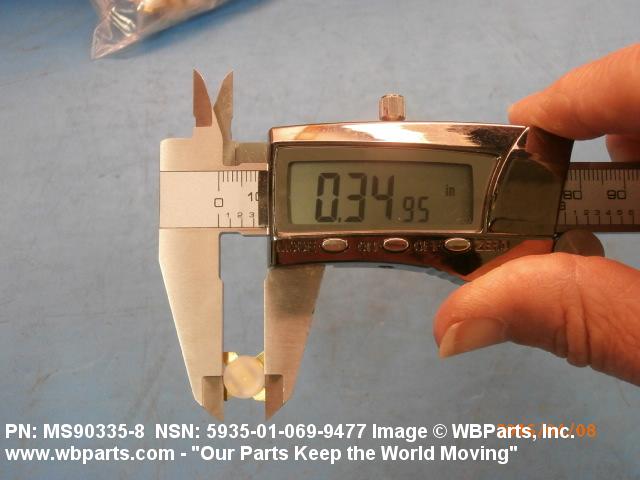

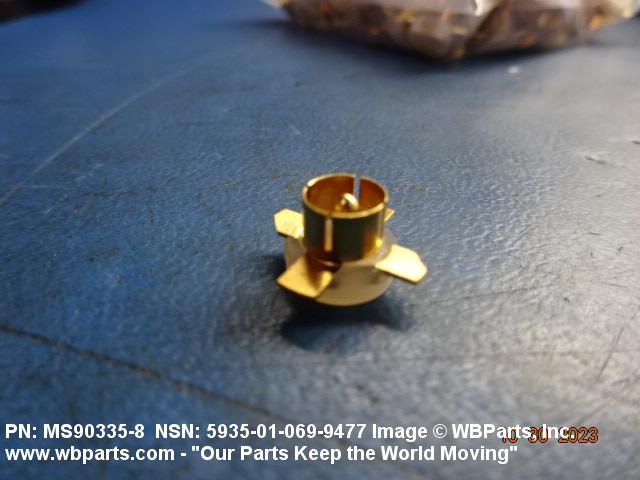

Drawings & Photos | NSN 5935-01-069-9477

Part Number	Request Date	QTY	Origin
MS903358	2024-10-276	750	Korea
MS903358	2024-05-142	700	Korea
MS903358	2023-08-219	350	Korea
MS903358	2023-01-10	300	Korea
5935-01-069-9477	2022-10-290	500	US
5935-01-069-9477	2022-10-284	300	US
MS903358	2022-06-178	300	Korea
5935-01-069-9477	2022-05-143	200	TR
5935-01-069-9477	2021-04-112	2	Colombia
5935-01-069-9477	2021-03-81	30	Thailand
MS903358	2020-11-308	500	Korea
5935-01-069-9477	2020-07-197	20	TH
MS903358	2020-03-66	800	Korea
MS903358	2020-02-55	700	Korea
MS903358	2019-05-135	500	Korea
MS903358	2019-05-127	32	US
MS903358	2019-03-88	300	Korea
CS010	2019-02-38	200	United States
MS903358	2018-12-353	200	Korea
MS903358	2017-02-51	800	Korea
MS903358	2016-03-88	500	Korea
MS903358	2016-03-82	500	Korea
MS903358	2015-02-57	500	Korea
5935-01-069-9477	2015-02-43	1009	DIBBS
MS903358	2015-02-37	100	US
MS903358	2015-02-37	300	US
5935-01-069-9477	2014-10-293	599	DIBBS
5935-01-069-9477	2014-09-259	470	DIBBS
MS903358	2014-05-141	50	US
MS903358	2014-05-141	100	US
MS903358	2014-05-141	250	US
5935-01-069-9477	2014-04-104	89	DIBBS
5935-01-069-9477	2014-02-48	292	DIBBS
MS903358	2013-11-309	1	US
5935-01-069-9477	2013-10-301	1	us
5935-01-069-9477	2013-10-291	5	US
5935-01-069-9477	2013-04-112	16	DIBBS
5935-01-069-9477	2013-01-30	5	US
5935-01-069-9477	2012-11-319	20	CN
MS903358	2012-11-312	250	IL
5935-01-069-9477	2012-10-275	35	United States
MS903358	2012-07-187	24	US
MS903358	2012-05-152	3	United States
MS903358	2012-05-152	5	United States
MS903358	2012-05-152	10	United States
5935-01-069-9477	2011-11-334	5	IN
5935-01-069-9477	2011-11-328	5	IN
MS903358	2011-09-255	40	US
5935-01-069-9477	2011-08-230	120	KR
MS903358	2011-07-201	10	FR
MS903358	2011-07-188	18	Germany
MS903358	2011-05-129	1	United States
MS903358	2011-03-81	195	us
MS903358	2011-03-80	1	United States
MS903358	2011-02-32	65	United Kingdom
5935-01-069-9477	2010-12-356	30	Korea
5935-01-069-9477	2010-06-181	148	us
MS903358	2009-10-294	50	Turkey
5935-01-069-9477	2008-11-317	260	DIBBS
5935-01-069-9477	2008-10-301	264	DIBBS
5935-01-069-9477	2007-08-226	624	DIBBS
5935-01-069-9477	2007-03-79	802	DIBBS
5935-01-069-9477	2006-02-40	802	DIBBS

Cross Reference | NSN 5935-01-069-9477

Part Number	Cage Code	Manufacturer
CS0-10	06097	HOFFMAN ENGINEERING CORPORATION
MIL-DTL-32385	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-32385/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-P-7788	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90335-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-069-9477

Compare

Related Products | NSN 5935-01-069-9477

5935-01-069-9478, 5935-01-069-9479, 5935-01-069-9480, 5935-01-069-9481, 5935-01-069-9483

Technical Data | NSN 5935-01-069-9477

Characteristic	Specifications

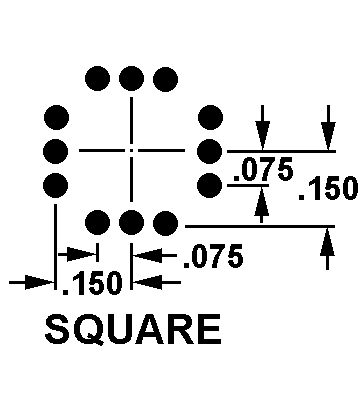

CONTACT POSITION ARRANGEMENT STYLE	1215A SQUARE
ACCOMMODATED CONTACT QUANTITY	4
CONTACT MAXIMUM CURRENT RATING IN AMPS	NOT RATED
CONTACT MATERIAL	ANY ACCEPTABLE
CONTACT SURFACE TREATMENT	ANY ACCEPTABLE

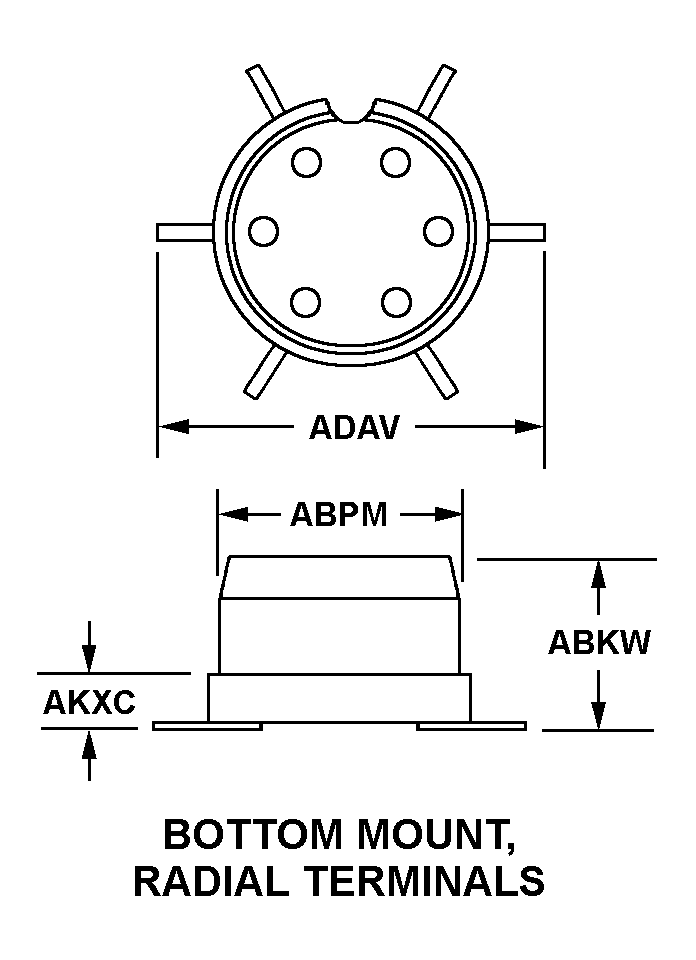

BODY STYLE	57B BOTTOM MOUNT, RADIAL TERMINALS
OVERALL HEIGHT	ANY ACCEPTABLE

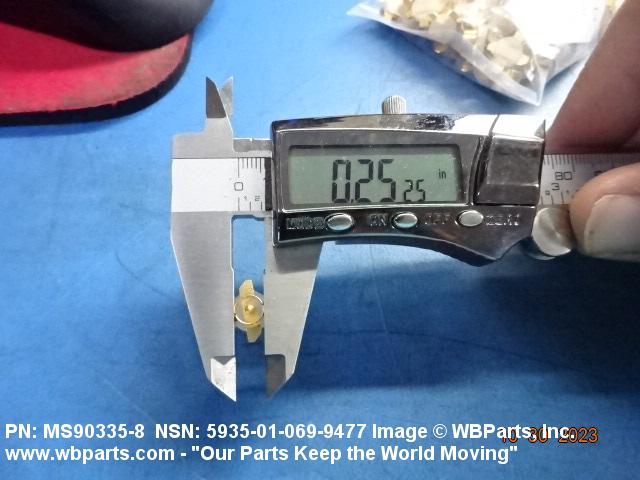

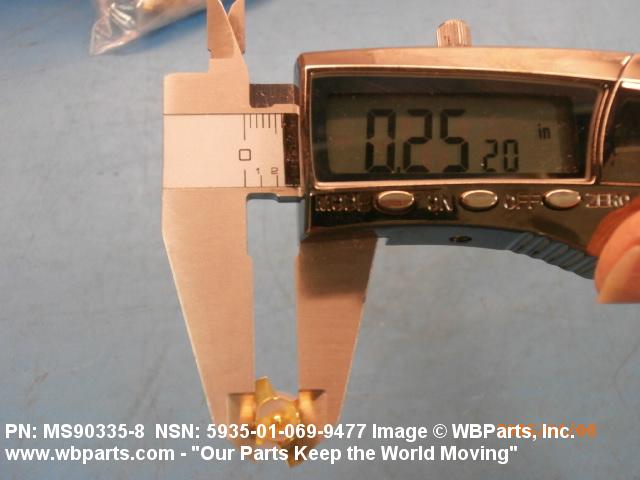

BODY DIAMETER	0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM

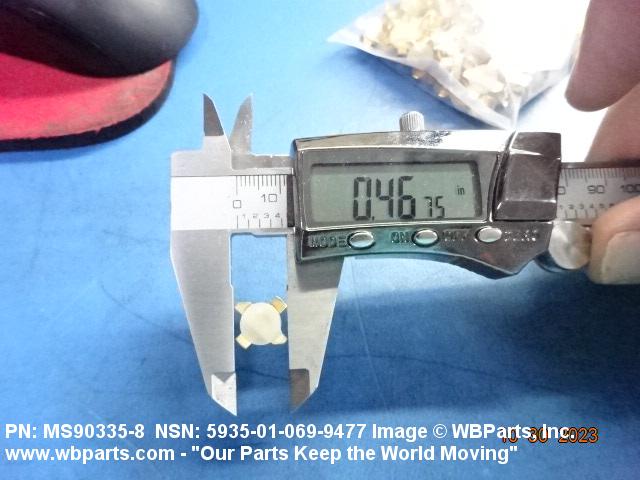

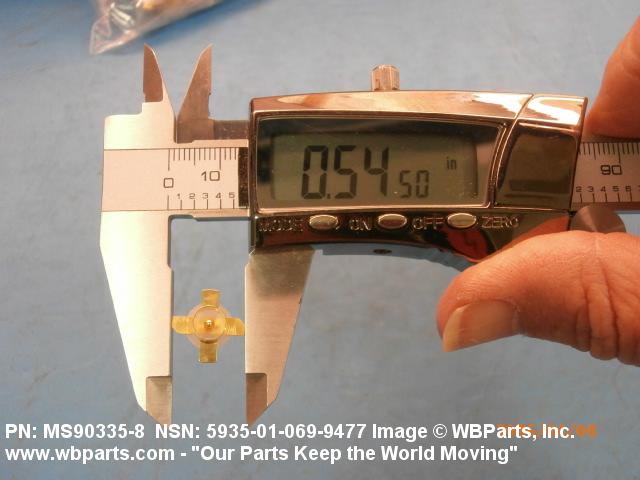

OVERALL DIAMETER	0.550 INCHES MAXIMUM

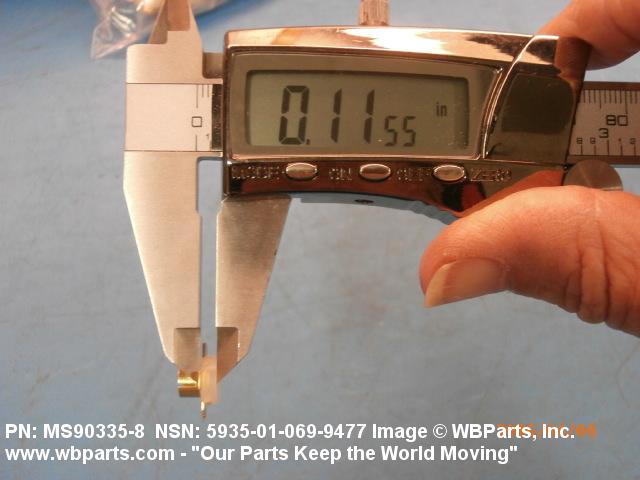

PROJECTION LENGTH BELOW MOUNTING SURFACE	0.093 INCHES MINIMUM AND 0.110 INCHES MAXIMUM
BODY MATERIAL	ANY ACCEPTABLE
TERMINAL TYPE AND QUANTITY	4 PRINTED CIRCUIT
MOUNTING TYPE FOR WHICH DESIGNED	PRINTED CIRCUIT
MOUNTING METHOD	BODY THROUGH HOLE
MOUNTING HOLE STYLE	21D FOUR MOUNTING HOLES/SLOTS ON BOLT CIRCLE

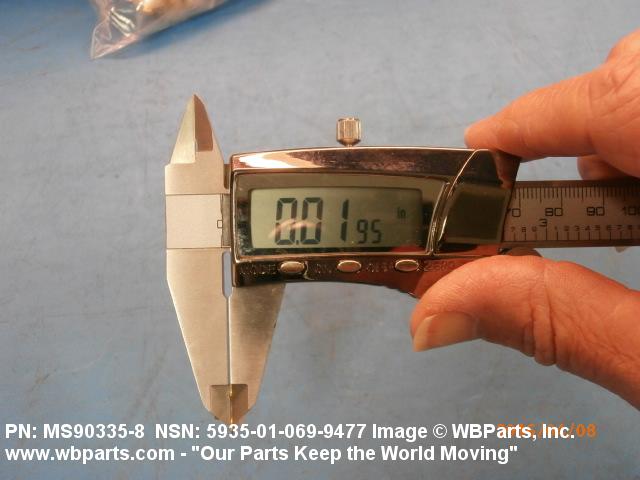

MOUNTING SLOT WIDTH	0.018 INCHES NOMINAL
MOUNTING BOLT CIRCLE DIAMETER	0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM

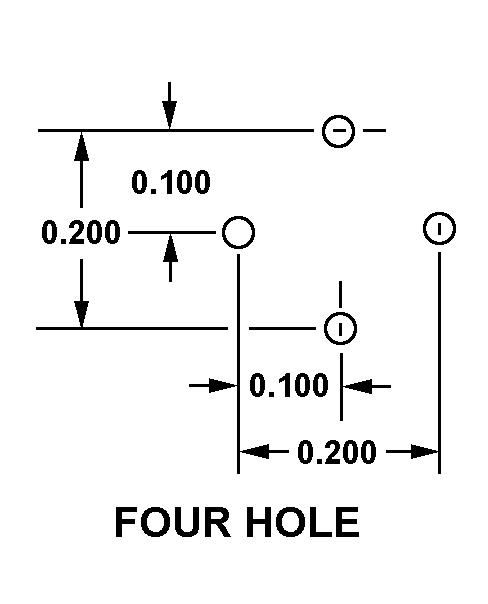

PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE	400E FOUR HOLE
