NSN 5935-01-064-1580 C50573, CON900267, ICN143S3G
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-064-1580 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: C50573, CON900267, ICN143S3G, ICN-143-S3-G, 0002812, 0008005963, 000-8005-963, 12000508, 1200-0508, 5935-01-064-1580, 01-064-1580, 5935010641580, 010641580
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 AUG 1978 | 01-064-1580 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-064-1580
Cross Reference | NSN 5935-01-064-1580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8005-963 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 0002812 | 06776 | ROBINSON NUGENT INC |
| 1200-0508 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1200-0508 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| C50573 | 98869 | HOWELL INSTRUMENTS, INC. |
| CON900267 | K6328 | TREND NETWORKS SERVICES |
| ICN-143-S3-G | 06776 | ROBINSON NUGENT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-064-1580
Related Products | NSN 5935-01-064-1580
Technical Data | NSN 5935-01-064-1580
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 1417A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 66B TOP MOUNT |
| OVERALL LENGTH | 0.695 INCHES NOMINAL |
| OVERALL HEIGHT | 0.345 INCHES NOMINAL |
| OVERALL WIDTH | 0.410 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.185 INCHES NOMINAL |
| BODY MATERIAL | POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 14 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL AND UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.118 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.500 INCHES NOMINAL |

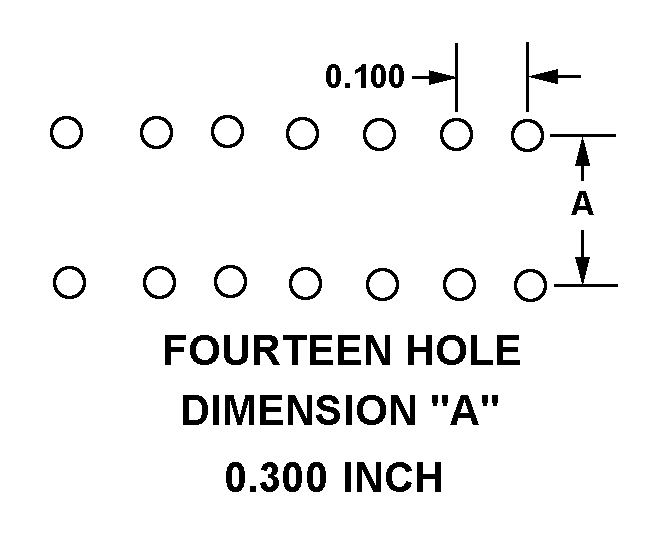

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1405E FOURTEEN HOLE |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-064-1580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
