NSN 5935-01-030-1838 MS903623, MS90362-3, AS81790

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-030-1838 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS903623, MS90362-3, AS81790 , AS90362, MILC81790, MIL-C-81790, 5935-01-030-1838, 01-030-1838, 5935010301838, 010301838

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 JAN 1989	01-030-1838	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

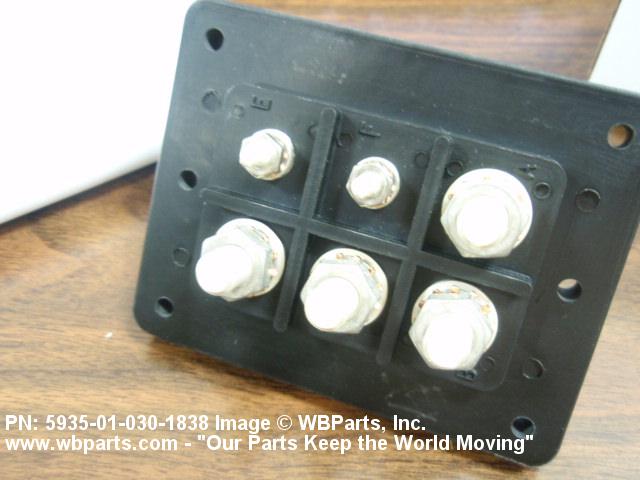

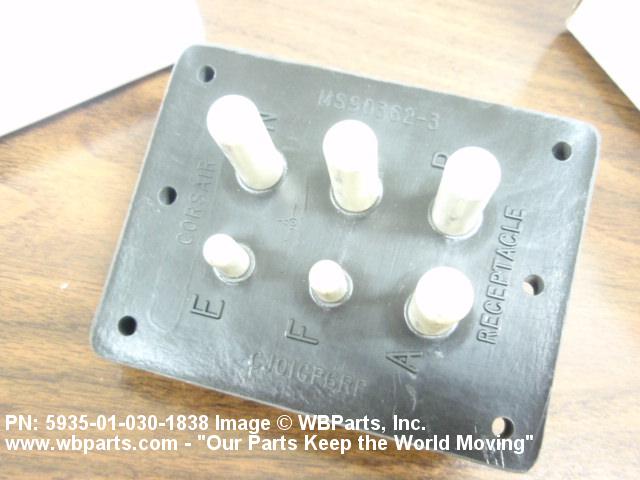

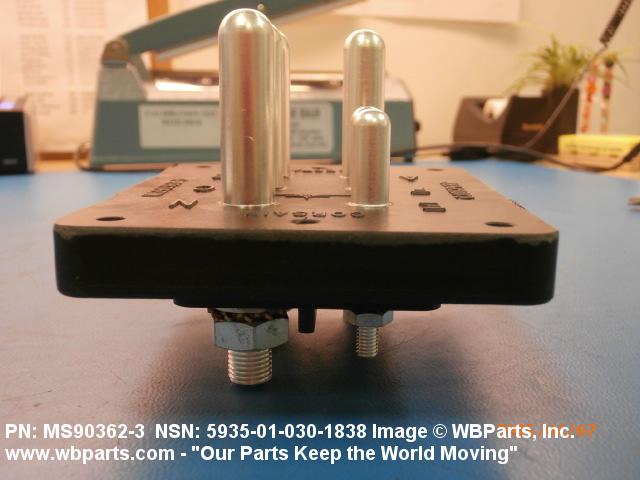

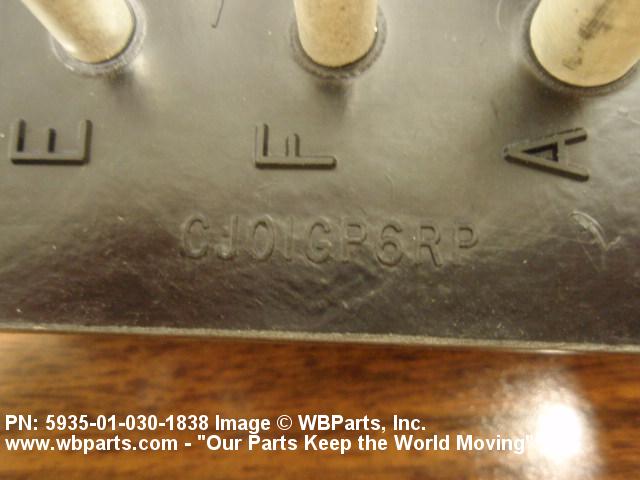

Drawings & Photos | NSN 5935-01-030-1838

Part Number	Request Date	QTY	Origin
5935-01-030-1838	2025-02-43	101	DIBBS
5935-01-030-1838	2025-01-08	1	IN
MS903623	2024-12-351	1	us
5935-01-030-1838	2024-12-339	2	AE
MS903623	2024-10-305	1	TR
MS903623	2024-02-47	1	US
5935-01-030-1838	2022-07-188	257	DIBBS
5935-01-030-1838	2022-03-90	74	DIBBS
MS903623	2021-03-76	1	United States
5935-01-030-1838	2021-03-67	1	Australia
MS903623	2019-02-39	5	US
MS903623	2019-01-31	12	US
MS903623	2017-09-248	4	United States
5935-01-030-1838	2017-06-181	1	Thailand
5935-01-030-1838	2017-05-142	119	DIBBS
5935-01-030-1838	2017-03-73	175	DIBBS
5935-01-030-1838	2017-03-73	186	DIBBS
5935-01-030-1838	2017-02-44	204	US
5935-01-030-1838	2017-02-43	204	DIBBS
5935-01-030-1838	2016-09-256	410	DIBBS
5935-01-030-1838	2016-08-215	406	DIBBS
5935-01-030-1838	2016-06-176	500	DIBBS
5935-01-030-1838	2016-06-165	500	DIBBS
5935-01-030-1838	2016-06-164	55	DIBBS
5935-01-030-1838	2016-06-160	124	DIBBS
5935-01-030-1838	2016-06-153	107	DIBBS
5935-01-030-1838	2016-04-105	40	DIBBS
5935-01-030-1838	2016-04-98	5	United States
5935-01-030-1838	2016-01-28	1	United States
5935-01-030-1838	2015-07-210	152	DIBBS
MS903623	2015-05-140	29	United States
5935-01-030-1838	2015-04-104	1	United States
5935-01-030-1838	2015-04-96	1	United States
5935-01-030-1838	2015-02-37	148	DIBBS
MS903623	2014-10-288	1	AE
5935-01-030-1838	2013-08-226	1	DIBBS-RFPs
5935-01-030-1838	2013-06-167	100	DIBBS
5935-01-030-1838	2013-03-85	63	DIBBS
5935-01-030-1838	2013-02-58	82	DIBBS
5935-01-030-1838	2013-02-33	43	DIBBS
5935-01-030-1838	2013-01-16	68	DIBBS
5935-01-030-1838	2012-12-363	0	DIBBS
MS90362-3	2012-11-310	1
5935-01-030-1838	2012-09-255	67	DIBBS
5935-01-030-1838	2012-06-181	39	DIBBS
5935-01-030-1838	2012-04-110	29	DIBBS
5935-01-030-1838	2012-03-62	29	DIBBS
5935-01-030-1838	2011-11-311	20	DIBBS
MS903623	2010-12-349	7	KR
5935-01-030-1838	2010-11-305	43	DIBBS
MS903623	2010-10-292	1	United States
5935-01-030-1838	2010-08-221	30	DIBBS
MS903623	2010-07-193	1	US
5935-01-030-1838	2010-06-172	123	DIBBS
5935-01-030-1838	2010-04-110	43	DIBBS
MS903623	2010-03-69	1	US
5935-01-030-1838	2010-02-51	55	DIBBS
5935-01-030-1838	2010-01-07	80	DIBBS
5935-01-030-1838	2010-01-06	1	US
5935-01-030-1838	2009-03-75	33	DIBBS
5935-01-030-1838	2009-01-20	26	DIBBS
5935-01-030-1838	2008-11-330	13	DIBBS

Cross Reference | NSN 5935-01-030-1838

Part Number	Cage Code	Manufacturer
AS81790	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS90362	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-C-81790	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90362-3	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS90362-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-030-1838

Compare

Related Products | NSN 5935-01-030-1838

5935-01-030-1841, 5935-01-030-1842, 5935-01-030-1843, 5935-01-030-1844, 5935-01-030-1845

Technical Data | NSN 5935-01-030-1838

Characteristic	Specifications
BODY STYLE	3K STRAIGHT SHAPE, POWER TYPE
OVERALL LENGTH	3.469 INCHES MINIMUM AND 3.531 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.745 INCHES MINIMUM AND 2.755 INCHES MAXIMUM
OVERALL HEIGHT	2.688 INCHES NOMINAL
OVERALL WIDTH	4.190 INCHES MINIMUM AND 4.252 INCHES MAXIMUM
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	3.745 INCHES MINIMUM AND 3.755 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO REAR FACE	0.719 INCHES MINIMUM AND 0.781 INCHES MAXIMUM
MOUNTING FACILITY THICKNESS	0.188 INCHES NOMINAL
CONNECTOR LOCKING METHOD	FRICTION
THREADED DEVICE TYPE	MOUNTING STUD
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 356.0
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-596 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-601 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	ANODIZE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 1 OR TY 2 MIL SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	1
INCLUDED CONTACT QUANTITY	2 SINGLE MATING END 1ST CONTACT GROUPING 4 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	THREADED STUD SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
TEST DATA DOCUMENT	81349-MIL-C-81790 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS90362 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.030 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-81790

Restrictions/Controls & Freight Information | NSN 5935-01-030-1838

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	98	DLIS-LFF Battle Creek, MI 49037-3084
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-030-1838

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
