NSN 5935-01-024-3395 GEN52629, GEN5262-9, 5262GRY
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-024-3395 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: GEN52629, GEN5262-9, 5262GRY, 5935-01-024-3395, 01-024-3395, 5935010243395, 010243395
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JUL 1976 | 01-024-3395 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-024-3395
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-024-3395
Technical Data | NSN 5935-01-024-3395
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9K STRAIGHT SHAPE DUPLEX |
| OVERALL HEIGHT | 1.156 INCHES NOMINAL |
| OVERALL WIDTH | 1.453 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.281 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC PHENOLIC |
| MATING END QUANTITY | 2 |

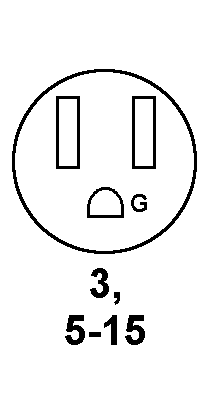

| CONTACT POSITION ARRANGEMENT STYLE | ADDS 3,5-15 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 1ST MATING END 1ST CONTACT GROUPING 2 1ST MATING END 2ND CONTACT GROUPING 1 2ND MATING END 1ST CONTACT GROUPING 2 2ND MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | D-SOCKET 1ST MATING END 1ST CONTACT GROUPING FLAT SOCKET 1ST MATING END 2ND CONTACT GROUPING D-SOCKET 2ND MATING END 1ST CONTACT GROUPING FLAT SOCKET 2ND MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 125.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | WIRE WRAP ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK ALL MATING ENDS ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND WEATHER RESISTANT |
