NSN 5935-01-021-1044 HRCC131JT3, HRCC-131JT3, 1458315GDF50NI
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-021-1044 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: HRCC131JT3, HRCC-131JT3, 1458315GDF50NI, 145-8-31-5GDF-50NI, 334654-005, 3346545, 334654-5, 5935-01-021-1044, 01-021-1044, 5935010211044, 010211044, 334654005
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1976 | 01-021-1044 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-021-1044
Cross Reference | NSN 5935-01-021-1044
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-021-1044
Technical Data | NSN 5935-01-021-1044
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 1415A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 53B TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| OVERALL HEIGHT | 0.622 INCHES NOMINAL |
| OVERALL WIDTH | 0.609 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.481 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |

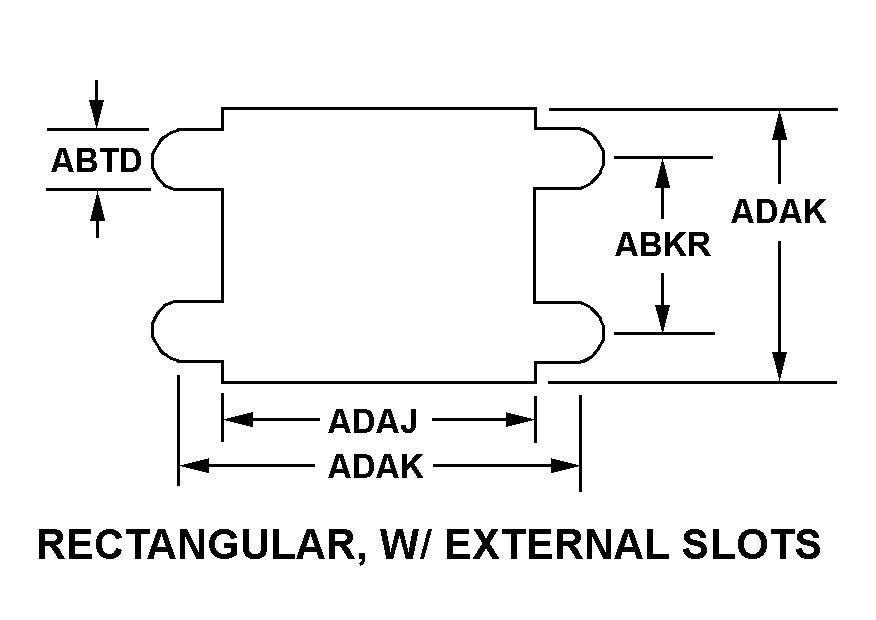

| MOUNTING HOLE STYLE | 46D RECTANGULAR, W/EXTERNAL SLOTS |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| MOUNTING SLOT WIDTH | 0.138 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.000 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.625 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.344 INCHES MINIMUM AND 1.406 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS AND QUANTITY | 4 LOCK WASHER AND 4 SCREW AND 4 STUD |
| III SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
