NSN 5935-01-012-3081 NEMA515R, NEMA5-15R, PRC145

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-012-3081 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: NEMA515R, NEMA5-15R, PRC145, PR-C-145 , W-C-596/11, WC596/11-2, WC59611, WC596112, WC596STYLED1, 10060997101, 10060997-101, 2500101 , 4143272001, 414-3272-001, 4150984111, 5261, 725016A11451, 725016A1145-1, C145 , 5935-01-012-3081, 01-012-3081, 5935010123081, 010123081

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	09 NOV 1975	01-012-3081	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

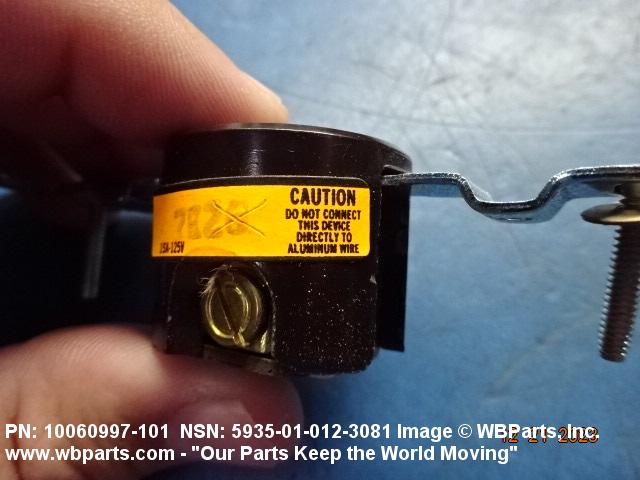

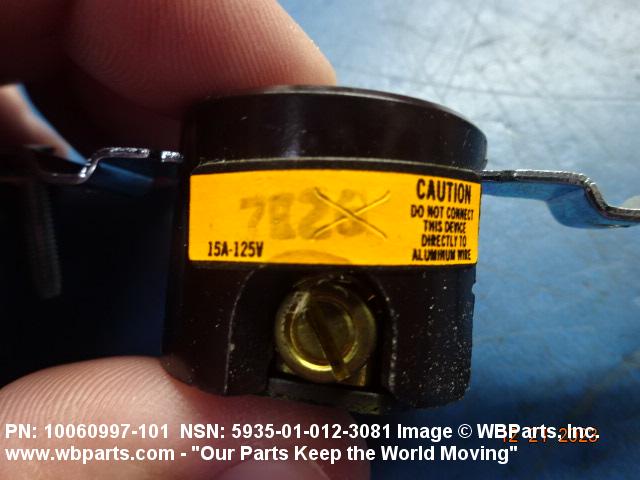

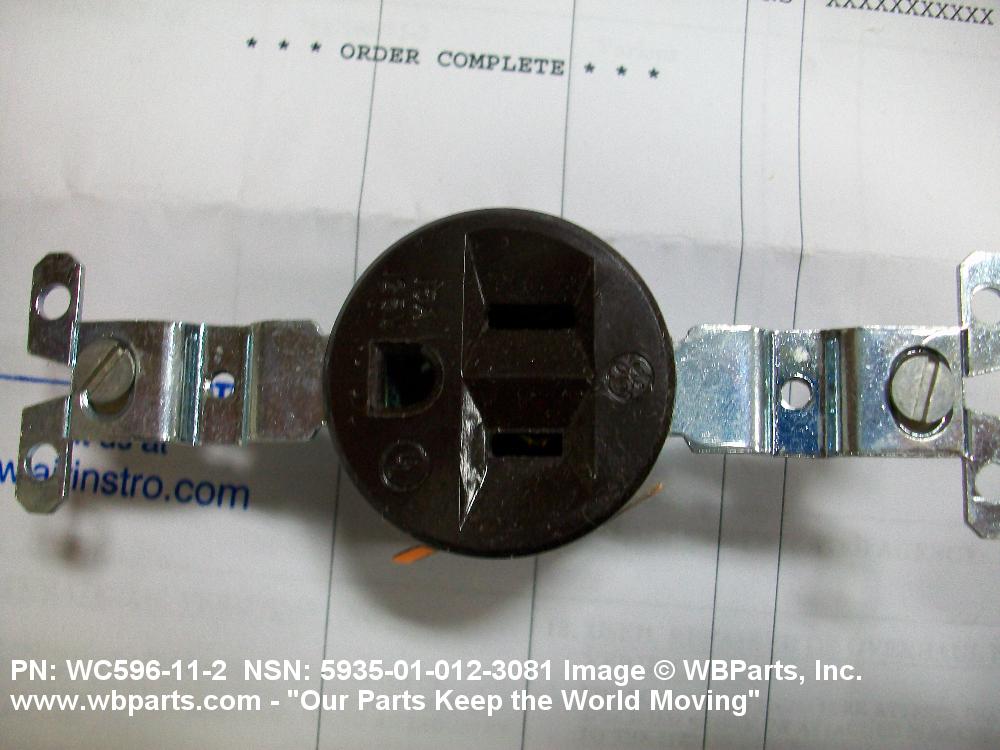

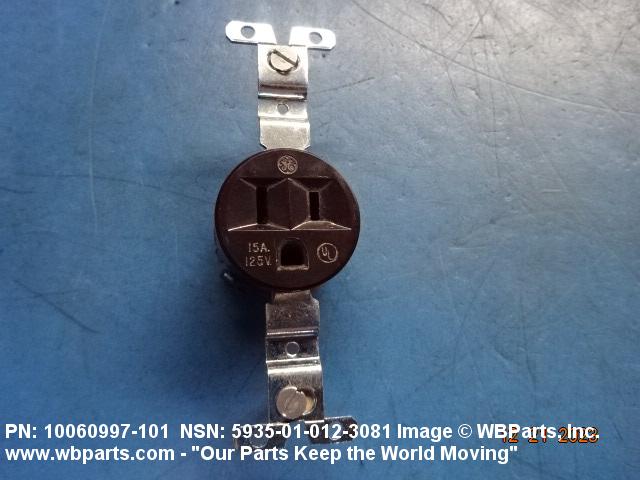

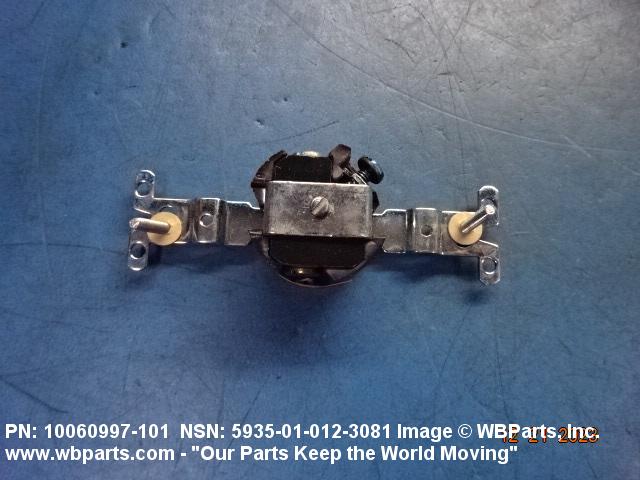

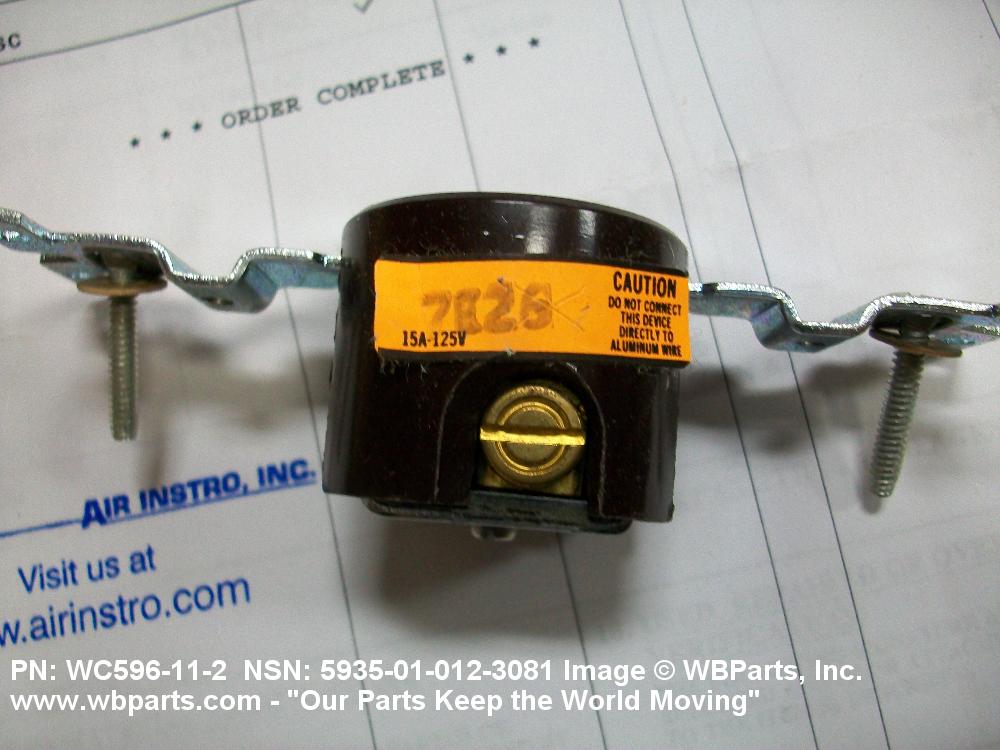

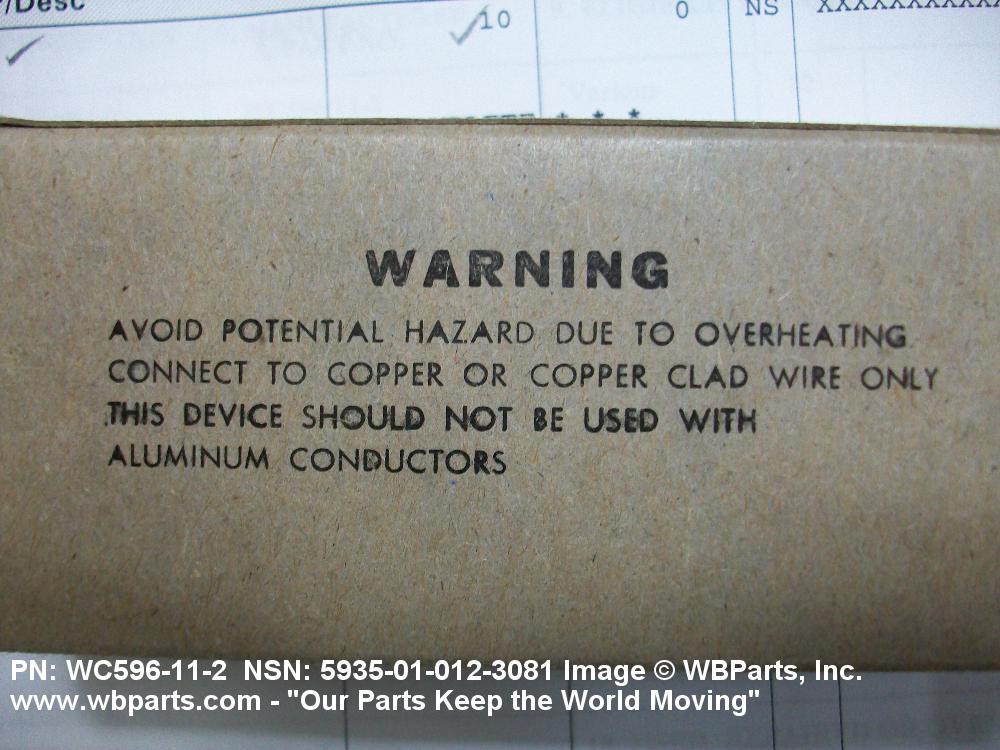

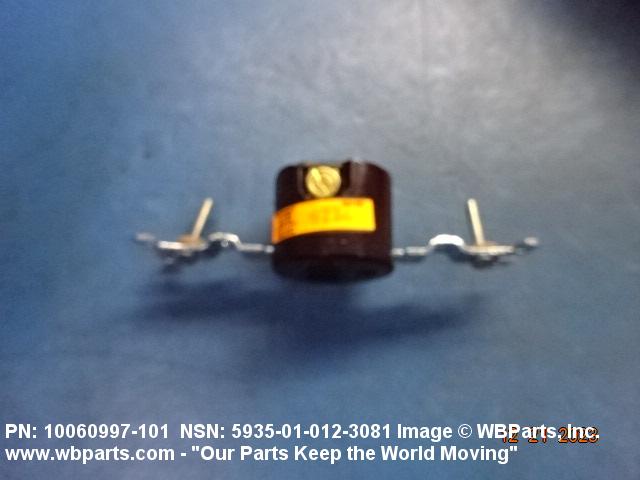

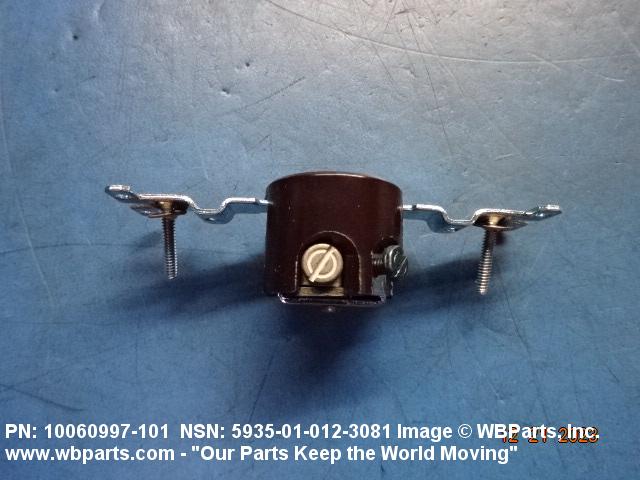

Drawings & Photos | NSN 5935-01-012-3081

Part Number	Request Date	QTY	Origin
5935-01-012-3081	2023-11-310	1	Canada
5935-01-012-3081	2020-02-49	1	United States
5935-01-012-3081	2012-09-269	2692	DIBBS
5935-01-012-3081	2011-09-256	946	DIBBS
10060997101	2011-04-91	10	Canada
5935-01-012-3081	2007-08-235	2485	DIBBS
5935-01-012-3081	2007-06-169	1229	DIBBS

Cross Reference | NSN 5935-01-012-3081

Part Number	Cage Code	Manufacturer
10060997-101	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
414-3272-001	94756	BOEING COMPANY, THE DBA BOEING
4150984111	K5095	DRS DATA AND IMAGING SYSTEMS LTD
4150984111	S0633	TEAC CORPORATION
5261	71183	BRYANT ELECTRIC
725016A1145-1	03538	LOCKHEED MARTIN CORPORATION DIV MST
NEMA5-15R	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
W-C-596/11	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
WC596/11-2	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
WC596STYLED1	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-012-3081

Compare

Related Products | NSN 5935-01-012-3081

5935-01-012-3082, 5935-01-012-3531, 5935-01-012-3811, 5935-01-012-3833, 5935-01-012-3834

Technical Data | NSN 5935-01-012-3081

Characteristic	Specifications
BODY STYLE	12K WALL TYPE
OVERALL HEIGHT	1.106 INCHES NOMINAL
OVERALL WIDTH	1.374 INCHES NOMINAL
BODY LENGTH	1.519 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS	2.370 INCHES MINIMUM AND 2.380 INCHES MAXIMUM
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ADDS 3,5-15 SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	D-SOCKET SINGLE MATING END 1ST CONTACT GROUPING FLAT SOCKET SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	15.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SCREW SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END 1ST CONTACT GROUPING SIDE SINGLE MATING END 2ND CONTACT GROUPING
ENVIRONMENTAL PROTECTION	SAND PROOF AND HEAT RESISTANT
SPECIAL FEATURES	COLOR BROWN
TEST DATA DOCUMENT	81348-W-C-596 SPECIFICATION
SPECIFICATION/STANDARD DATA	81348-W-C-596/11 GOVERNMENT SPECIFICATION
III END ITEM IDENTIFICATION	MISSILE MINUTEMAN LGM-30
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	W-C-596/11
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	WC596/11-2

Restrictions/Controls & Freight Information | NSN 5935-01-012-3081

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	063498	VOICE COIL/DYNAMIC LOUDSPEAKER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-012-3081

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
