NSN 5935-01-008-8546 DPXB1333S0001, DPXB13-33S0001, 976.19.14.102
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-008-8546 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPXB1333S0001, DPXB13-33S0001, 976.19.14.102, 9761914102, 5935-01-008-8546, 01-008-8546, 5935010088546, 010088546
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 1975 | 01-008-8546 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-008-8546
Demand History | NSN 5935-01-008-8546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DPXB13-33S0001 | 2024-01-25 | 19 | DIBBS |
| DPXB13-33S0001 | 2023-01-09 | 14 | DIBBS |
| DPXB13-33S0001 | 2022-11-319 | 14 | DIBBS |
| DPXB13-33S0001 | 2022-05-128 | 2 | DIBBS |
| DPXB1333S0001 | 2022-02-44 | 1 | Japan |
| 5935-01-008-8546 | 2021-09-273 | 2 | GU |
| DPXB13-33S0001 | 2021-01-03 | 7 | DIBBS |
| DPXB13-33S0001 | 2020-12-345 | 2 | DIBBS |
| DPXB13-33S0001 | 2020-11-310 | 1 | DIBBS |
| 5935-01-008-8546 | 2019-06-161 | 5 | US |
| DPXB1333S0001 | 2013-08-218 | 2 | AT |
| DPXB1333S0001 | 2011-10-277 | 1 | US |
| DPXB1333S0001 | 2011-09-269 | 1 | US |
| 5935-01-008-8546 | 2011-07-202 | 36 | US |
| DPXB1333S0001 | 2011-04-103 | 1 | US |
| DPXB1333S0001 | 2010-07-182 | 2 | CH |
| DPXB1333S0001 | 2009-08-215 | 1 | Hungary |
| DPXB1333S0001 | 2008-11-329 | 1 | US |
| DPXB1333S0001 | 2008-10-300 | 1 | US |
| DPXB1333S0001 | 2008-02-44 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-008-8546
Technical Data | NSN 5935-01-008-8546
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18G STRAIGHT SHAPE |
| OVERALL LENGTH | 0.954 INCHES NOMINAL |
| OVERALL HEIGHT | 2.047 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.170 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.437 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.766 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| MATING END QUANTITY | 1 |

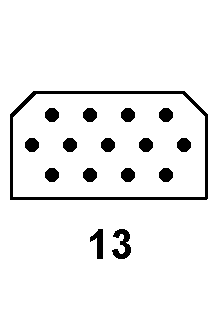

| CONTACT POSITION ARRANGEMENT STYLE | APAR 13 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 13 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 13.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MANUFACTURERS CODE | 71468 |
| DESIGN CONTROL REFERENCE | DPXB13-33S0001 |
Restrictions/Controls & Freight Information | NSN 5935-01-008-8546
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
