NSN 5935-01-008-8510 3654003-01, 01-008-8510, 365400301
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-008-8510 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 3654003-01, 5935-01-008-8510, 01-008-8510, 5935010088510, 365400301, 010088510
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 AUG 1975 | 01-008-8510 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-008-8510
Cross Reference | NSN 5935-01-008-8510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3654003-01 | 51398 | SIE COMPUTING SOLUTIONS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-008-8510
Related Products | NSN 5935-01-008-8510
Technical Data | NSN 5935-01-008-8510
| Characteristic | Specifications |
|---|---|

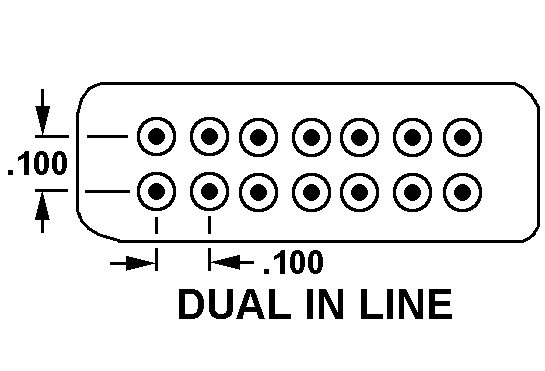

| CONTACT POSITION ARRANGEMENT STYLE | 1416A DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | METAL |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |
| BODY STYLE | 54B PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| TERMINAL LENGTH | 0.154 INCHES NOMINAL |
| OVERALL HEIGHT | 0.414 INCHES NOMINAL |
| OVERALL WIDTH | 0.450 INCHES NOMINAL |
| BODY MATERIAL | GLASS |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS OR PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

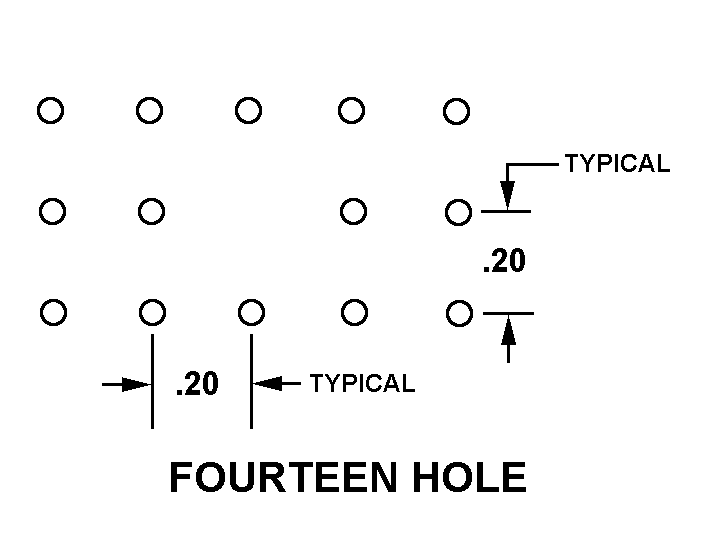

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1402E FOURTEEN HOLE |
| FEATURES PROVIDED | CENTER SHIELD AND COMPONENT RETAINING DEVICE AND SHOCK MOUNTS |
