NSN 5935-00-982-3492 46T24021, 00-982-3492, 009823492
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-982-3492 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 46T24021, 5935-00-982-3492, 00-982-3492, 5935009823492, 009823492
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-982-3492 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-982-3492
Cross Reference | NSN 5935-00-982-3492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 46T24021 | 71785 | CINCH CONNECTORS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-982-3492
Technical Data | NSN 5935-00-982-3492
| Characteristic | Specifications |
|---|---|

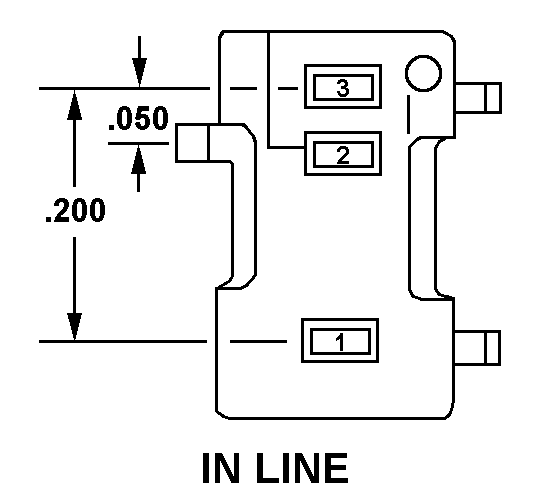

| CONTACT POSITION ARRANGEMENT STYLE | 320A IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER |

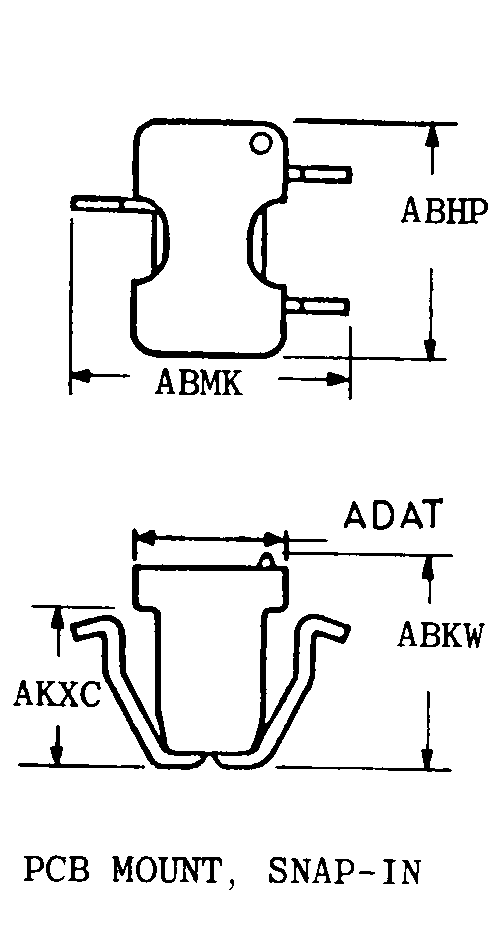

| BODY STYLE | 47B PCB MOUNT, SNAP-IN |
| OVERALL LENGTH | 0.375 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.312 INCHES MAXIMUM |
| OVERALL WIDTH | 0.562 INCHES MAXIMUM |
| BODY WIDTH | 0.218 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.188 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | SNAP-IN |

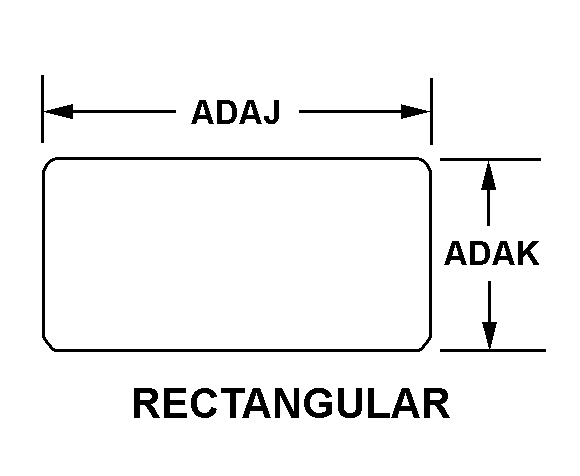

| MOUNTING HOLE STYLE | 22D RECTANGLAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.047 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.031 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71785 |
| DESIGN CONTROL REFERENCE | 46T24021 |
Restrictions/Controls & Freight Information | NSN 5935-00-982-3492
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
