Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-947-6655 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-00-947-6655, 00-947-6655, 5935009476655, 009476655
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-947-6655 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-947-6655
Cross Reference | NSN 5935-00-947-6655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 371-1285-330 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 371-1285-330 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 38532-3 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| 414645-5 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 555146-572N | A2608 | BASTOGI SISTEMI SPA |
| 555146.572//N | A0069 | SELEX ES SPA |
| 6010649-006 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 71468 | 50196 | AVNET INC TIME ELECTRONIC SALES DIV |
| 7618415P66 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 890970-2 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| A38532-3 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| DBMF17W25 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMF17W2SA106 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMF17W2SA106 | 71785 | CINCH CONNECTORS, INC. |
| DBMF17W2SA156 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMF17W2SA160C37 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMF17W2SC37A134 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMF43401-92 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMMF17W2S | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMMR-17W2S | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMMY17W2S | 71468 | ITT CORPORATION DBA I T T CANNON |
| DBMR17W2S | 71468 | ITT CORPORATION DBA I T T CANNON |
| GBMMF17W2S | 25330 | COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR |
| PBMMF17W2S | 60563 | PHOENIX COMPANY OF CHICAGO, INC., THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-947-6655
Technical Data | NSN 5935-00-947-6655
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.088 INCHES NOMINAL |
| OVERALL HEIGHT | 0.738 INCHES NOMINAL |
| OVERALL WIDTH | 0.494 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.847 INCHES MINIMUM AND 1.857 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.086 INCHES MINIMUM AND 0.089 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

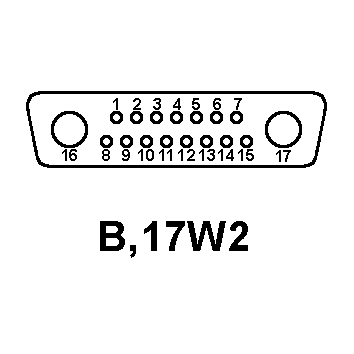

| CONTACT POSITION ARRANGEMENT STYLE | ATAH B,17W2 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-19833,TYPE GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 15 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MISSING CONTACT TYPE AND QUANTITY | 2 COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| SPECIAL FEATURES | MTG HOLE BUSHINGS FLOAT .032IN. |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
