NSN 5935-00-947-1570 MS21083C8, MRS0036S00BV000, L79NTE820
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-947-1570 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS21083C8, MRS0036S00BV000, L79NTE820, L79NTE-820 , 4158071-18 , 803-5001003-X4X X-10 , 8035001003X4XX10, 80359593063XX025, 803-5959306-3XX-025 , 10121867 , 10652634-2, 21333 FIND 46 , 21333FIND46, 30730314, 5935-00-947-1570, 00-947-1570, 5310009471380 , 5935009471570, 009471570, 106526342, 415807118
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 APR 1966 | 00-947-1570 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-947-1570
Demand History | NSN 5935-00-947-1570
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-947-1380 | 2021-09-252 | 200 | IL |
| MS21083C8 | 2016-11-333 | 56 | US |
| MS21083C8 | 2015-07-182 | 105 | UK |
| MS21083C8 | 2015-02-41 | 100 | United States |
| MS21083C8 | 2014-05-127 | 2000 | US |
| MS21083C8 | 2013-07-198 | 20 | US |
| 5310-00-947-1380 | 2013-07-182 | 8 | United States |
| MS21083C8 | 2012-08-214 | 3 | US |
| MS21083C8 | 2012-07-202 | 210 | United States |
| MS21083C8 | 2012-03-61 | 12 | United Kingdom |
| 5310-00-947-1380 | 2011-12-355 | 100 | United States |
| MS21083C8 | 2011-11-326 | 35 | United States |
| 5310-00-947-1380 | 2011-01-25 | 29 | US |
| 5310-00-947-1380 | 2009-12-338 | 100 | US |
| 5935-00-947-1570 | 2009-12-337 | 1 | Singapore |
| 5310-00-947-1380 | 2007-08-221 | 173 | US |
Cross Reference | NSN 5935-00-947-1570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10652634-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 30730314 | K3072 | BELIX POWER CONVERSION LTD |
| MRS0036S00BV000 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
| MRS0036S00BV000 | 73293 | L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC. |
| MRS0036S00BV000 | K5533 | RAYTHEON SYSTEMS LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-947-1570
Related Products | NSN 5935-00-947-1570
Technical Data | NSN 5935-00-947-1570
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 41G RECTANGULAR SHAPE CENTER SCREWLOCK |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.360 INCHES NOMINAL |
| OVERALL WIDTH | 0.830 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | POST JACKSOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | POLARIZATION BOSS |
| BOSS TYPE AND LOCATION DESIGNATOR | BV SOCKET |
| MATING END QUANTITY | 1 |

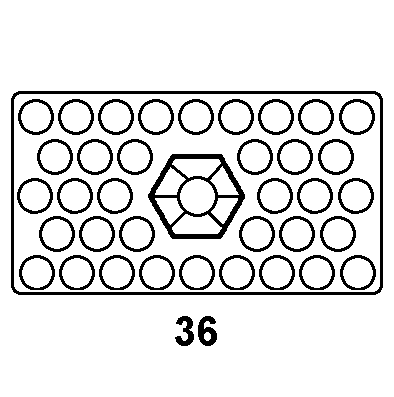

| CONTACT POSITION ARRANGEMENT STYLE | BNAU 36 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 36 ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | THERMAL SHOCK RESISTANT |
| III OPERATING TEMP RATING | -54.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
