NSN 5935-00-947-1051 WSS0132S08BN001, 900593-0227-000, 00-947-1051
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-947-1051 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WSS0132S08BN001, 900593-0227-000, 5935-00-947-1051, 00-947-1051, 5935009471051, 9005930227000, 009471051
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1966 | 00-947-1051 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-947-1051
Demand History | NSN 5935-00-947-1051
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-947-1051 | 2016-05-129 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-947-1051
Related Products | NSN 5935-00-947-1051
Technical Data | NSN 5935-00-947-1051
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9G STRAIGHT SHAPE W/JACKSCREW |
| OVERALL LENGTH | 2.780 INCHES MINIMUM AND 2.800 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.840 INCHES MAXIMUM |
| OVERALL WIDTH | 0.595 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.460 INCHES MINIMUM AND 2.480 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | POLARIZATION BOSS |
| BOSS TYPE AND LOCATION DESIGNATOR | BN PIN |
| MATING END QUANTITY | 1 |

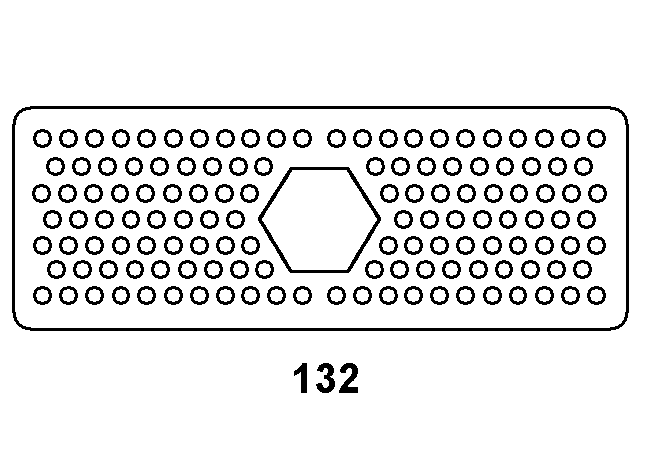

| CONTACT POSITION ARRANGEMENT STYLE | FEAA 132 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 132 ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
