NSN 5935-00-947-1037 MS311518A, MS3115-18A, H95045A18

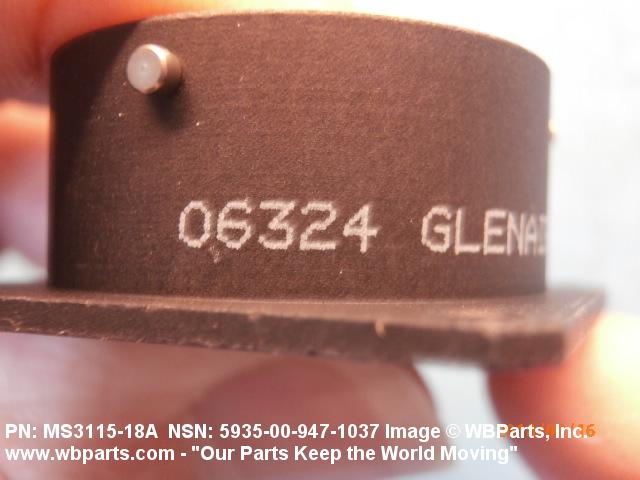

Product Details | RECEPTACLE DUMMY CONNECTOR
5935-00-947-1037 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: MS311518A, MS3115-18A, H95045A18, KPT1518A, KPT15-18A, MILC26482, MIL-C-26482, VG95328T07C18, 10263999183, 10-263999-183, 5935-00-947-1037, 00-947-1037, 5935009471037, 009471037
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1966 | 00-947-1037 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

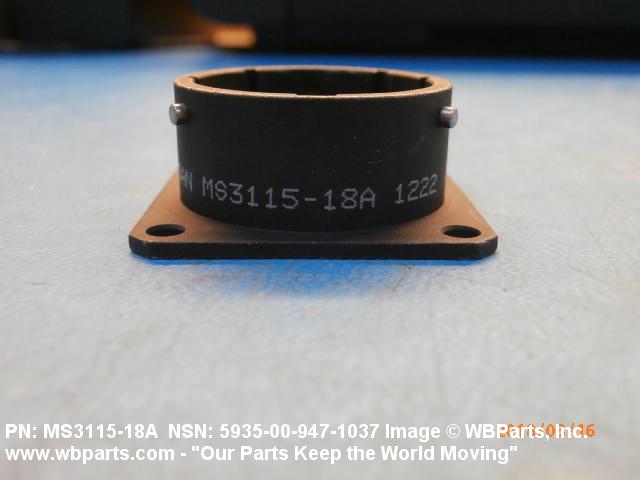

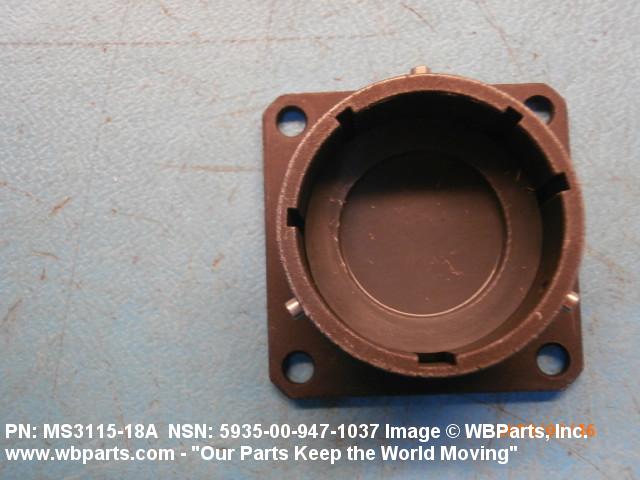

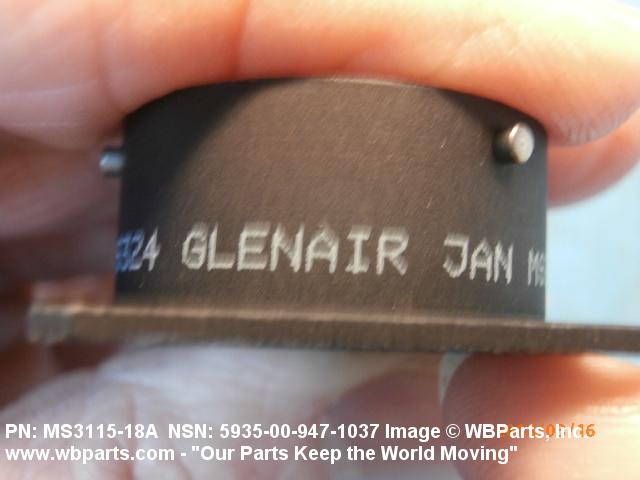

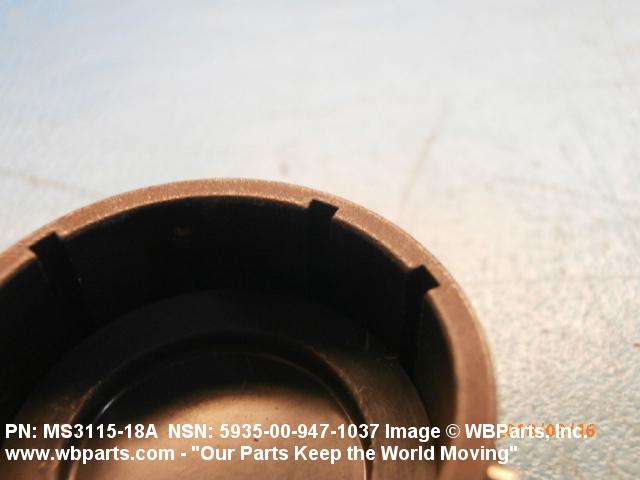

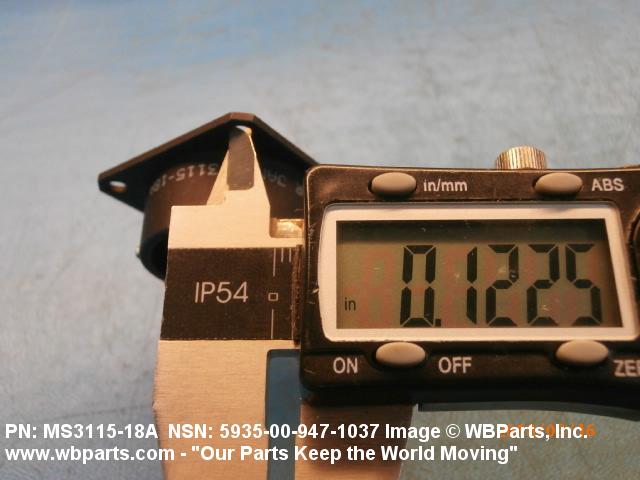

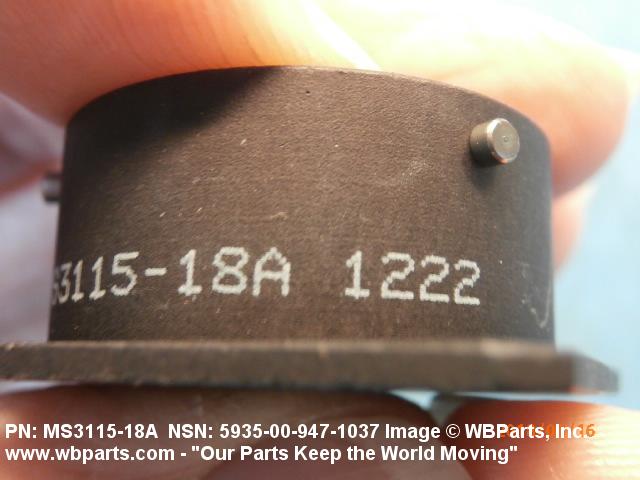

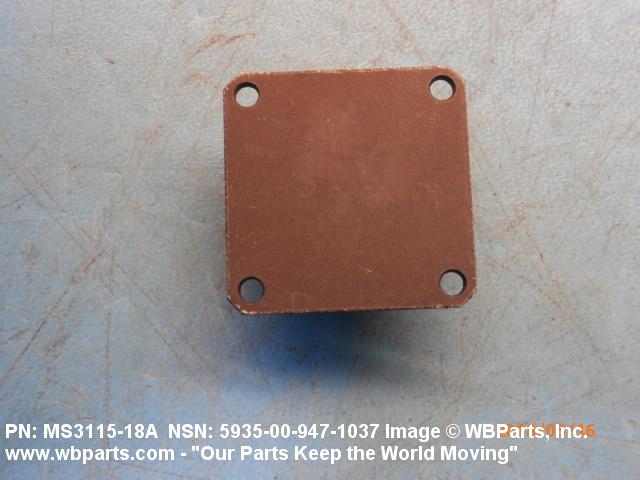

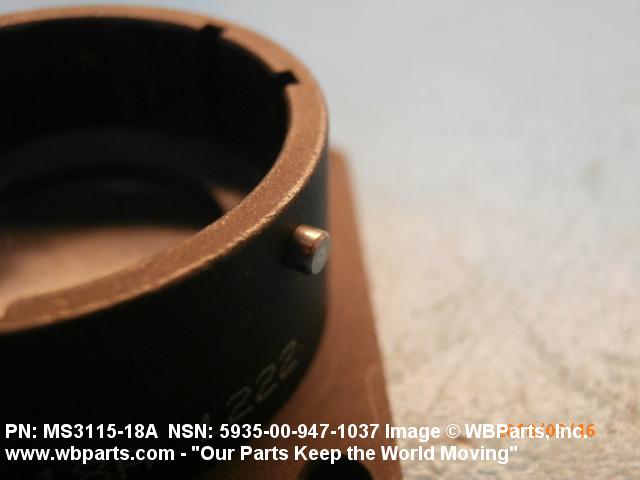

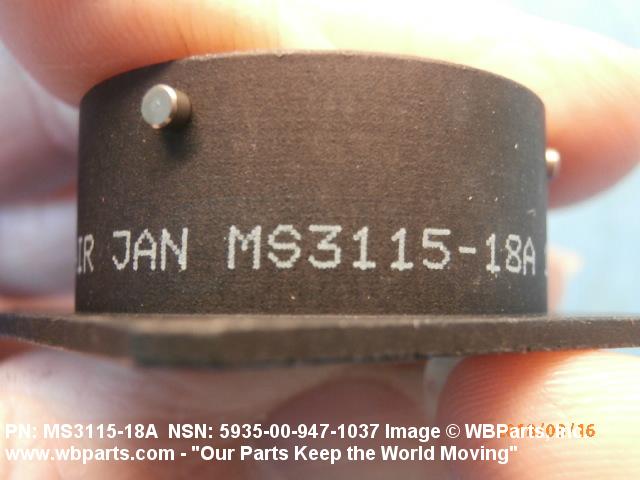

Drawings & Photos | NSN 5935-00-947-1037
Demand History | NSN 5935-00-947-1037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS311518A | 2018-02-54 | 3 | United States |
| 5935-00-947-1037 | 2016-06-166 | 431 | DIBBS |
| 5935-00-947-1037 | 2014-09-248 | 224 | DIBBS |
| 5935-00-947-1037 | 2014-06-181 | 881 | DIBBS |
| 5935-00-947-1037 | 2011-06-158 | 74 | DIBBS |
| MILC26482 | 2011-01-27 | 4 | Portugal |
Cross Reference | NSN 5935-00-947-1037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-263999-183 | D9853 | ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH |
| H95045A18 | C0628 | EADS DEUTSCHLAND GMBH |
| KPT15-18A | D1371 | ITT CANNON GMBH |
| MIL-C-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3115-18A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VG95328T07C18 | A6854 | GLENAIR ITALIA SPA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-947-1037
Related Products | NSN 5935-00-947-1037
Technical Data | NSN 5935-00-947-1037

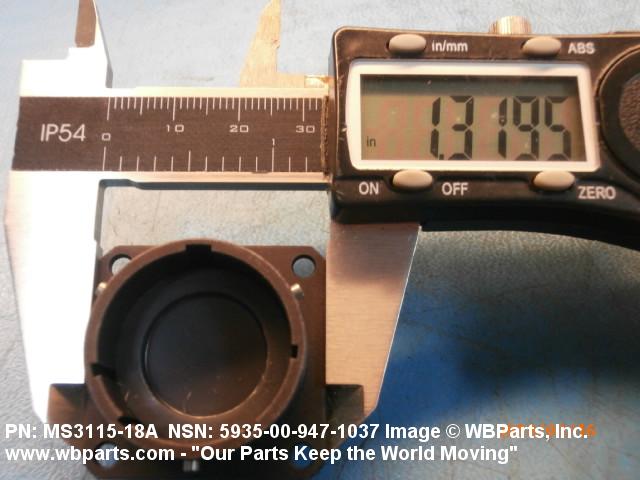

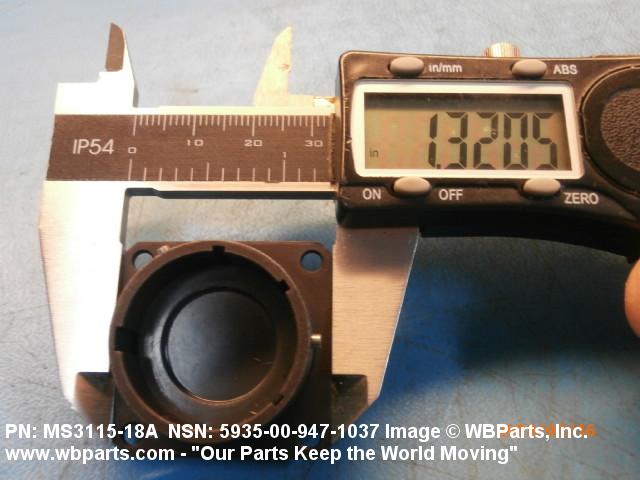

| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 0.571 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.328 INCHES MAXIMUM |
| OVERALL WIDTH | 1.328 INCHES MAXIMUM |

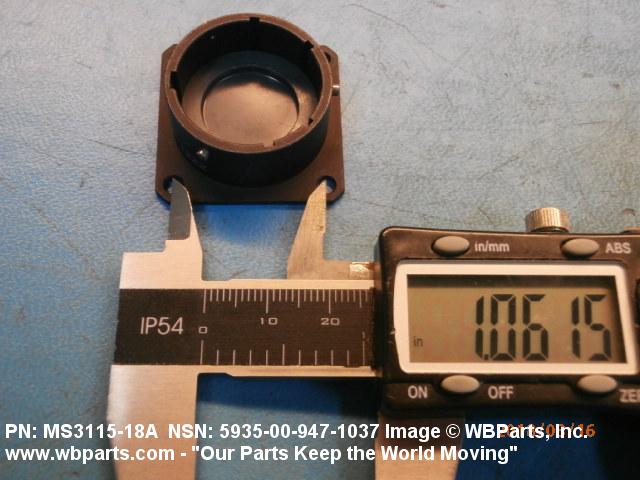

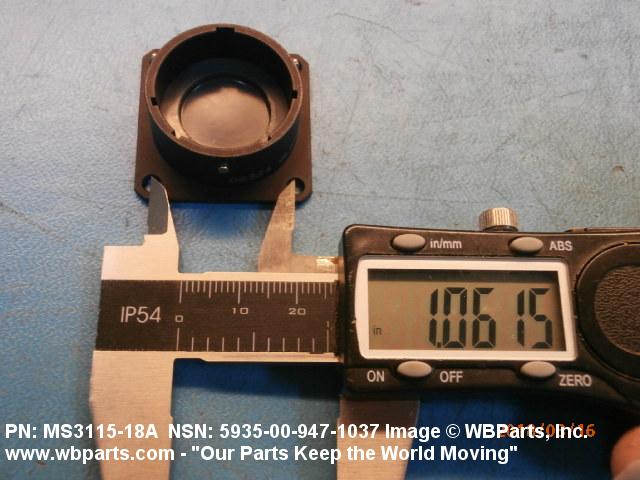

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.062 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.062 INCHES NOMINAL |

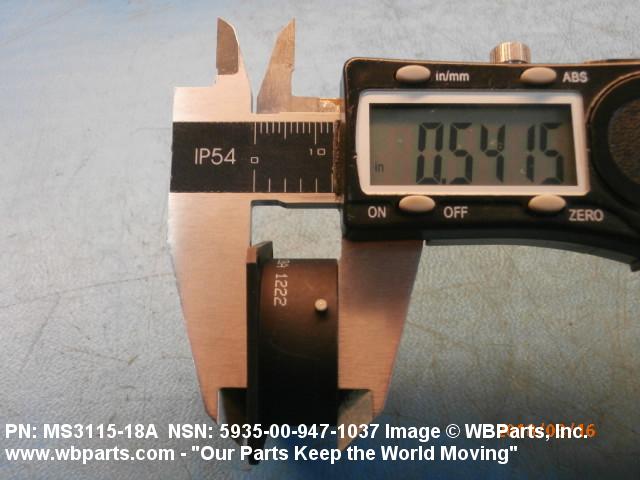

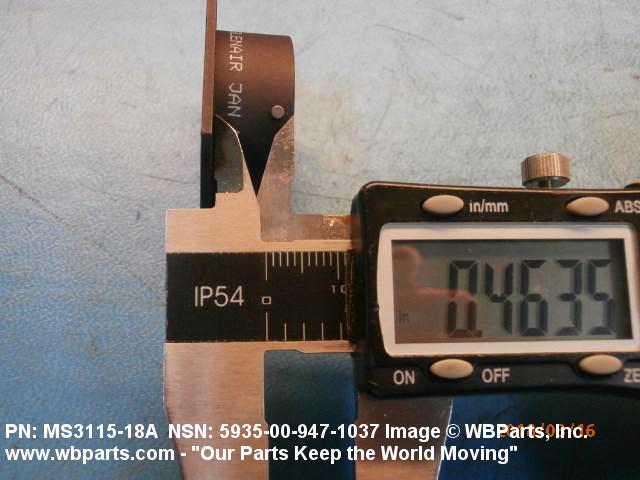

| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.462 INCHES MINIMUM AND 0.493 INCHES MAXIMUM |
