NSN 5935-00-938-1258 8058168, 8058-168, 80581G26
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-938-1258 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 8058168, 8058-168, 80581G26, 8058-1G26 , 80581G4, 8058-1G4, 80581G8, 8058-1G8 , 2064324, 5935-00-938-1258, 00-938-1258, 5935009381258, 009381258
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAR 1967 | 00-938-1258 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-938-1258
Cross Reference | NSN 5935-00-938-1258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2064324 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 8058-168 | 28499 | CHEMLEC PRODUCTS INC |
| 8058-1G26 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8058-1G26 | 91506 | AUGAT INC |
| 8058-1G4 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8058-1G4 | 91506 | AUGAT INC |
| 8058-1G8 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8058-1G8 | 91506 | AUGAT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-938-1258
Related Products | NSN 5935-00-938-1258
Technical Data | NSN 5935-00-938-1258
| Characteristic | Specifications |
|---|---|

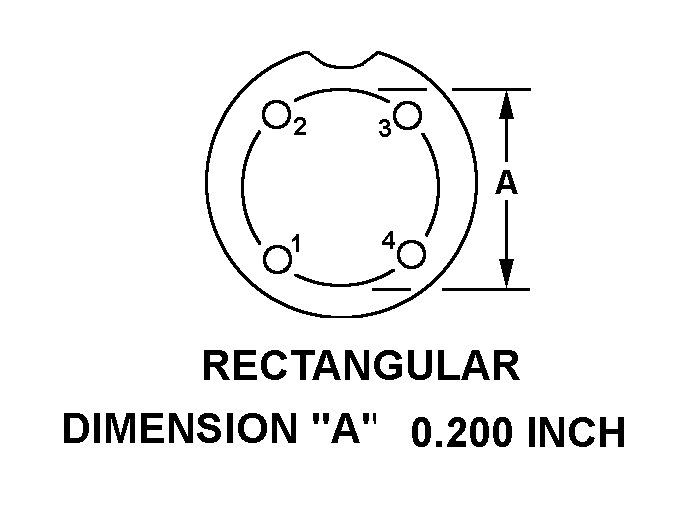

| CONTACT POSITION ARRANGEMENT STYLE | 403A RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |
| BODY STYLE | 36B TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.073 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.452 INCHES NOMINAL |
| OVERALL DIAMETER | 0.460 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |

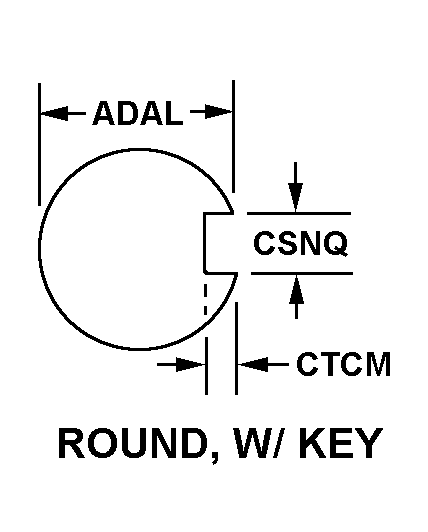

| MOUNTING HOLE STYLE | 6D ROUND, W/KEY |
