NSN 5935-00-905-9122 C-12B, JJ033, 00606296012897
Product Details | TELEPHONE JACK
5935-00-905-9122 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: C-12B, JJ033, 00606296012897, 39315001, 3931-5001, C12B, 5935-00-905-9122, 00-905-9122, 5935009059122, 009059122
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-905-9122 | 00124 ( JACK, TELEPHONE ) |

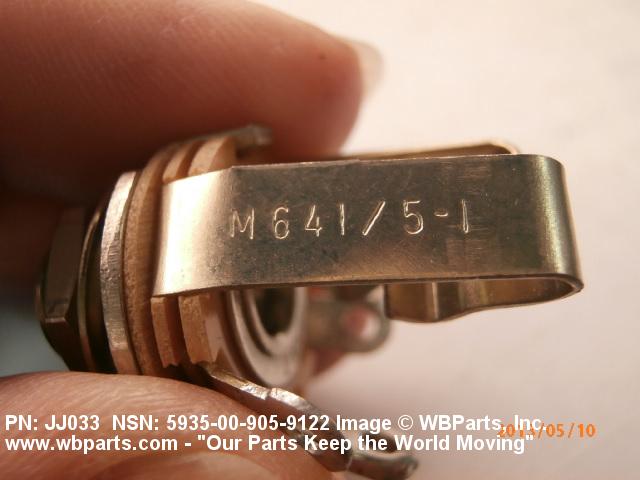

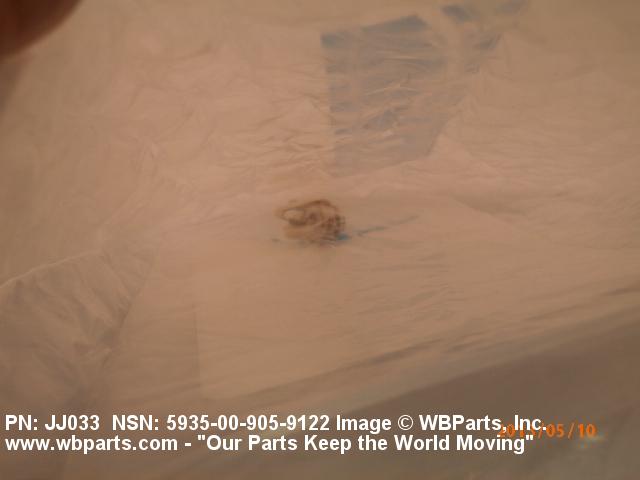

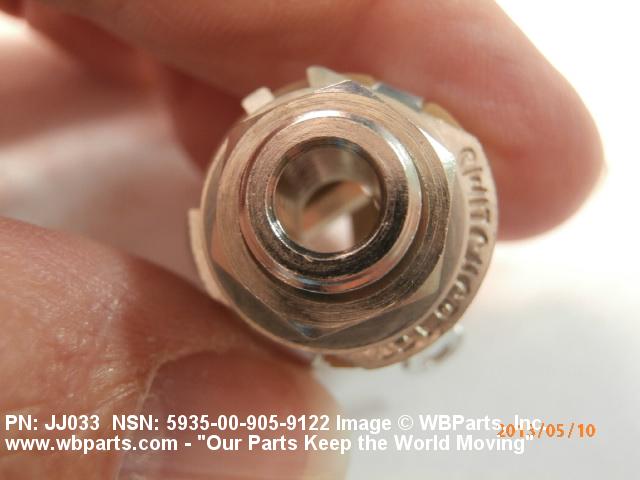

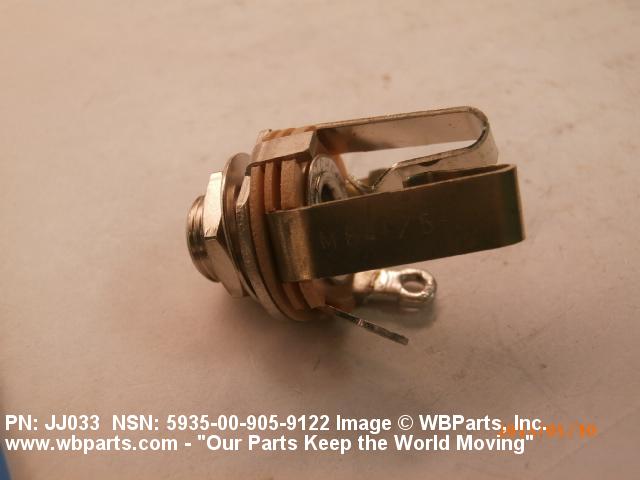

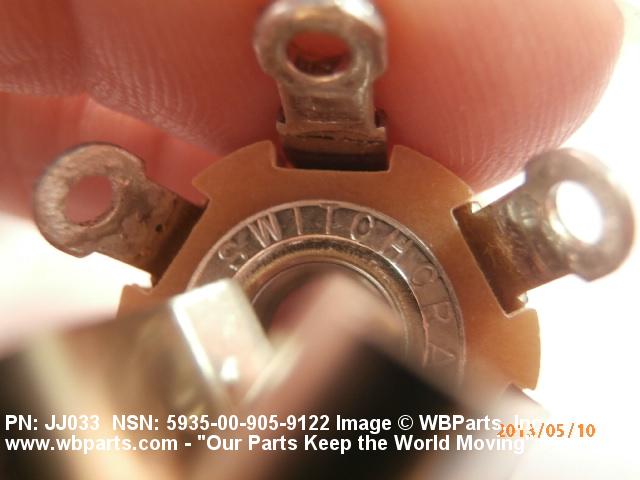

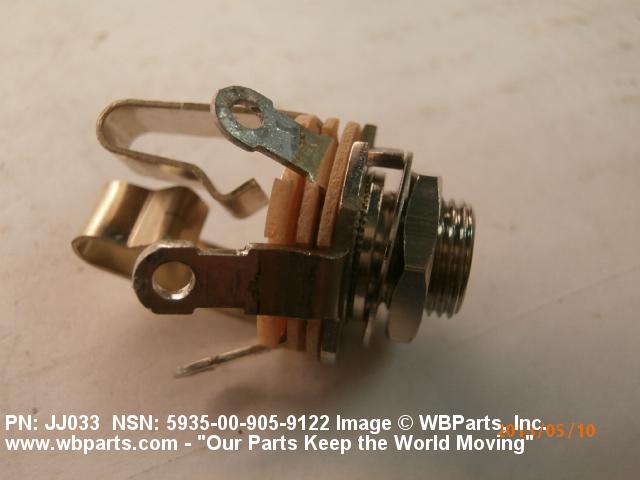

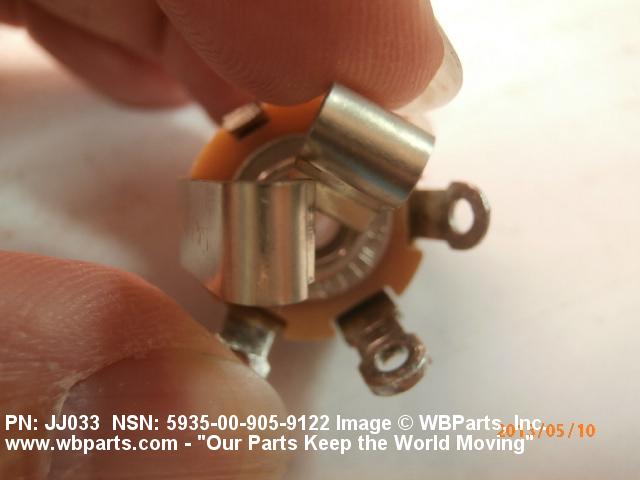

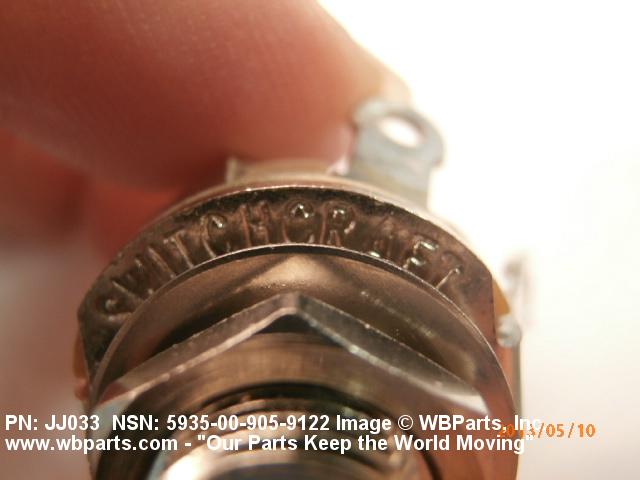

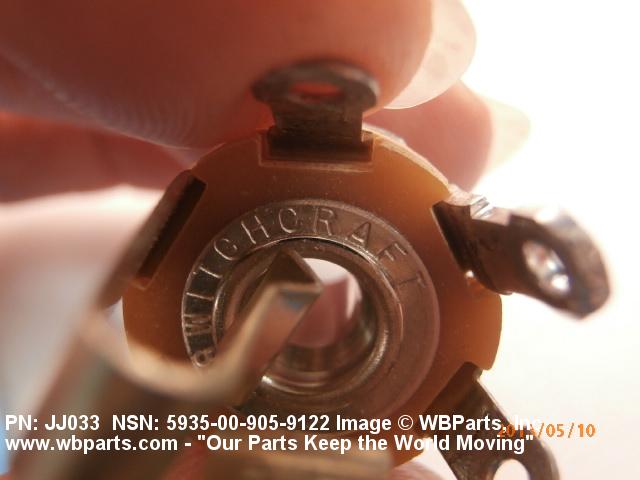

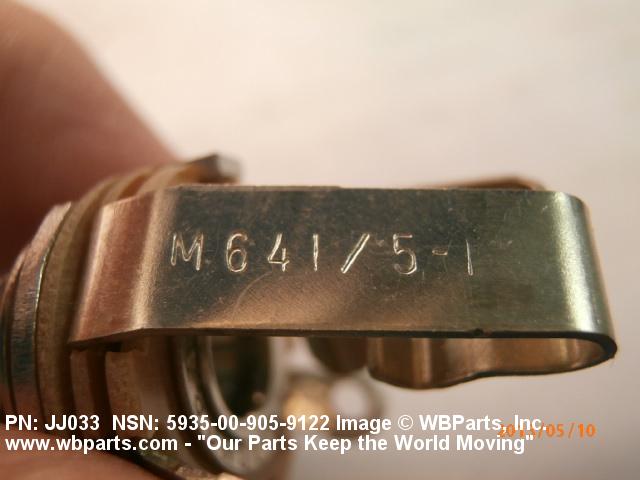

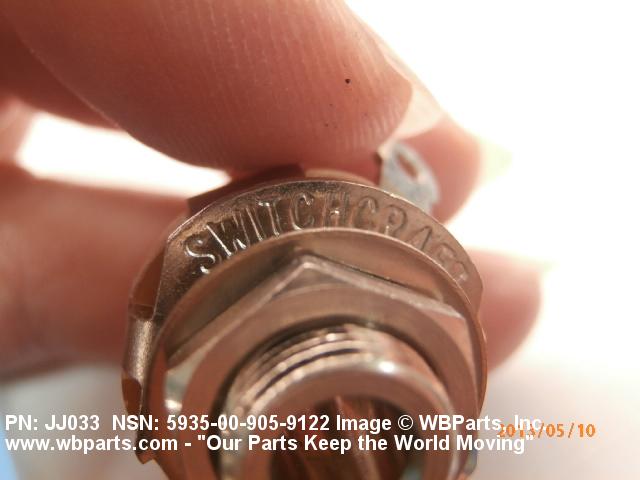

Drawings & Photos | NSN 5935-00-905-9122
Demand History | NSN 5935-00-905-9122
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JJ033 | 2014-07-209 | 20 | CA |
| 5935-00-905-9122 | 2013-04-108 | 1 | United States |
| C12B | 2010-09-246 | 100 | United States |
| C12B | 2010-09-246 | 100 | United States |
| 5935-00-905-9122 | 2010-08-223 | 50 | MX |
| JJ033 | 2008-09-260 | 6 | United States |
Cross Reference | NSN 5935-00-905-9122
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00606296012897 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
| 3931-5001 | 82386 | JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS |
| C-12B | 001JK | EMBRAER S/A |
| C-12B | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| C12B | 82389 | SWITCHCRAFT INC. |
| JJ033 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-905-9122
Technical Data | NSN 5935-00-905-9122
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | THREE CONDUCTOR, SLENDER SPHERICAL TIP SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL ALL FINGERS |
| FINGER ACCOMMODATION LENGTH | 1.188 INCHES NOMINAL ALL FINGERS |
| BODY STYLE | 26 THREADED BUSHING MOUNTED |
| OVERALL LENGTH | 1.276 INCHES NOMINAL |

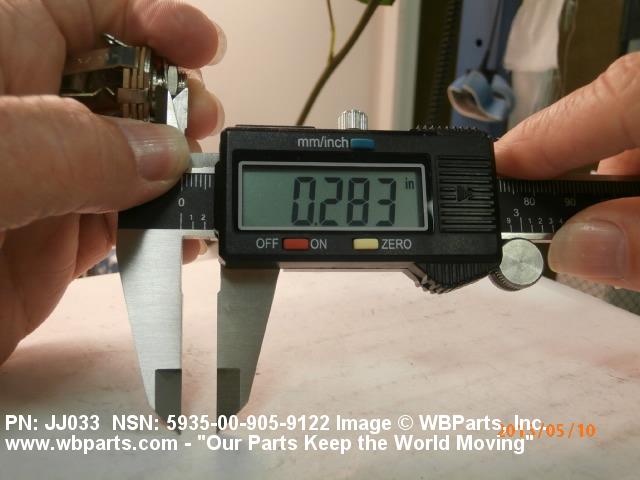

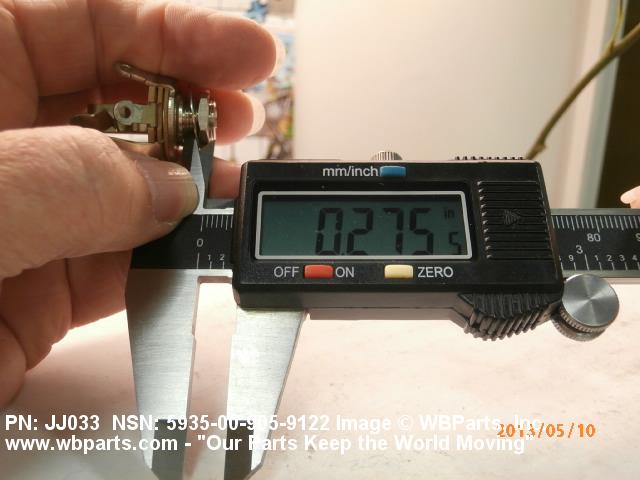

| MOUNTING BUSHING LENGTH | 0.276 INCHES NOMINAL |

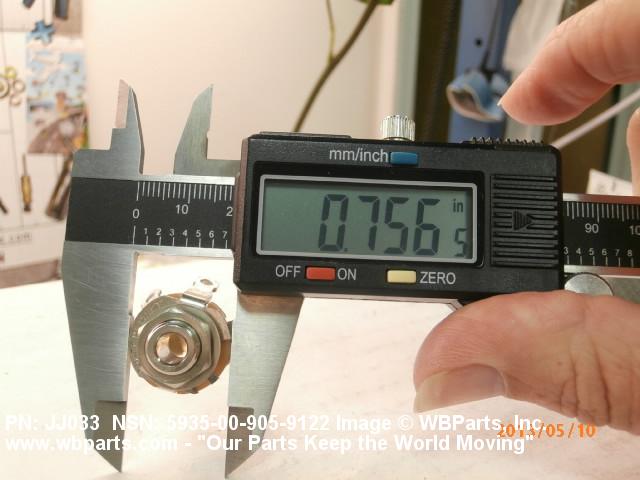

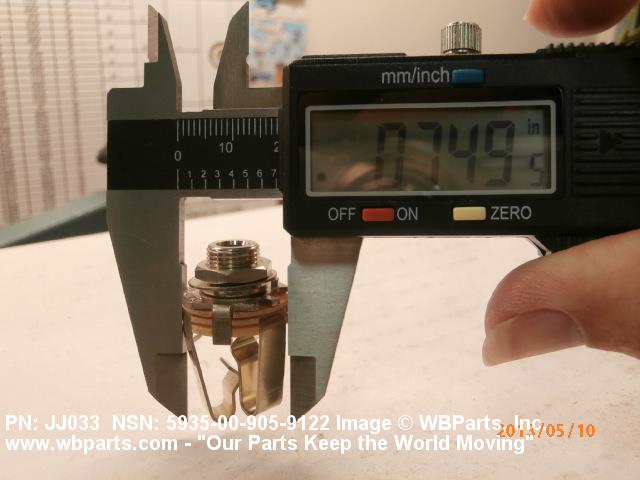

| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| JACK CONTACT ARRANGEMENT DESIGNATOR | J2 |
| THREAD SERIES DESIGNATOR | UNEF |

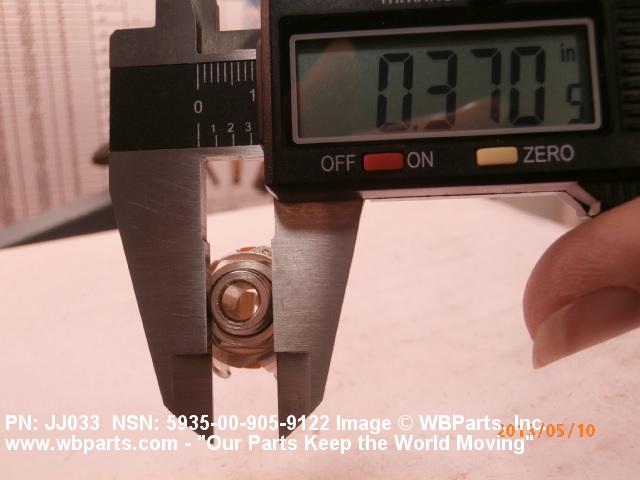

| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | ANY ACCEPTABLE |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.375 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS BODY BRASS BUSHING SILVER AND NICKEL ALLOY CONTACT PLASTIC INSULATOR |
| SURFACE TREATMENT | TIN TERMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5935-00-905-9122
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
